Exploded View

WARNING: This page is about a different car, the 2013 Infiniti M56 and 2013 Infiniti M37. However, it is still accessible from the selected car via links, so may be relevant.

One-touch joints are pipe joints which do not require tools while connecting pipes.
Unlike a connection by conventional union nuts or flanges, tightening torque management for joint is not necessary.
Use a disconnector when disconnecting a pipe connection. Refer to "SPECIAL SERVICE TOOL ".

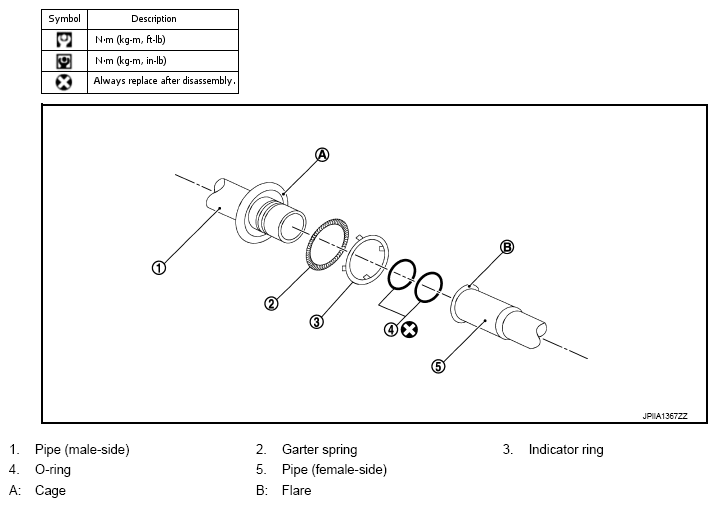

Fig 1: Exploded View Of One-Touch Joint
Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.

NOTE:

Garter spring cannot be removed from pipe (male-side) cage.
Indicator ring remains near pipe joint. It is normal. (This is to check pipe connection condition during factory assembly.)
