Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Apply ATF to the new metal bushing, then install the new metal bushing until it becomes Dimension (A) using Tool.
Tool number: ST35300000 (-)

Dimension (A): 7.7 - 8.3mm (0.303 - 0.327in)

CAUTION: Do not reuse metal bushing.

Fig 1: Installing Metal Bushing Using Tool
Courtesy of NISSAN NORTH AMERICA, INC.
Apply ATF to the new needle bearing, then install the new needle bearing until it becomes Dimension (B) using Tool.
Tool number: ST33220000 (-)

Dimension (B): 62.5 - 63.1mm (2.461 - 2.484in)

CAUTION: Do not reuse needle bearing.

Fig 2: Installing Needle Bearing Using Tool
Courtesy of NISSAN NORTH AMERICA, INC.
Install the carrier bearing to the sun gear using Tools.
Tool number (A): ST30720000 (J-25405)

(B): ST27863000 (-)

Fig 3: Installing Carrier Bearing To Sun Gear Using Tools
Courtesy of NISSAN NORTH AMERICA, INC.
Install the new snap ring to the sun gear assembly using suitable tool.
CAUTION: Do not reuse snap ring.

Fig 4: Removing/Installing Sun Gear Assembly Snap Ring
Courtesy of NISSAN NORTH AMERICA, INC.
Install the sun gear assembly to the planetary carrier assembly.
Install the new snap ring to the planetary carrier assembly.
CAUTION: Do not reuse snap ring.

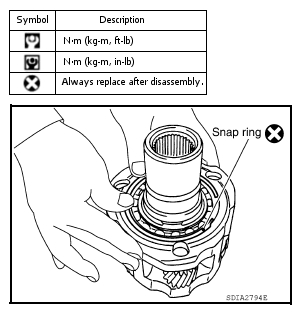

Fig 5: Installing Snap Ring To Planetary Carrier Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
