Power Transfer Diagram

WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

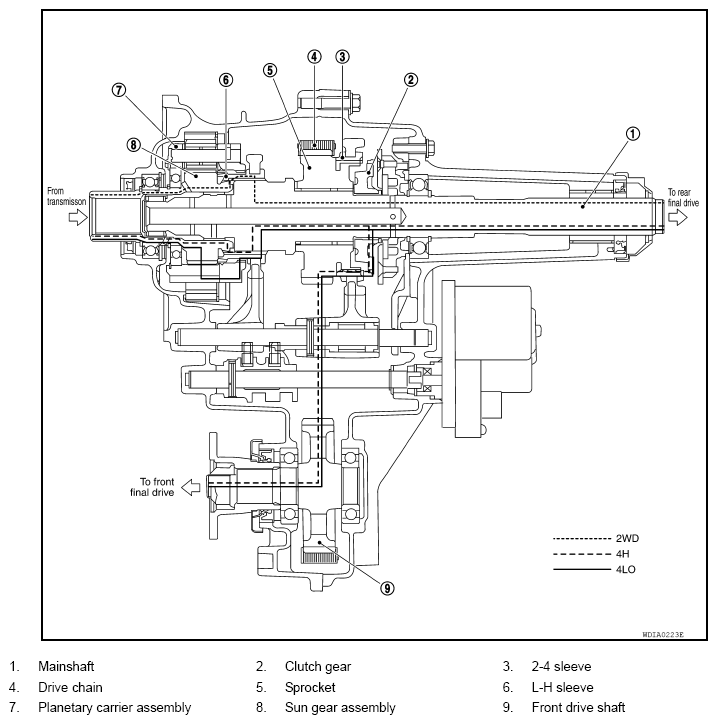

Fig 1: Driveline Power Transfer Diagram
G08710881Courtesy of NISSAN NORTH AMERICA, INC.
