Removal and Installation: Installation

WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Install the new O-ring to the transfer control device.
CAUTION:
- Do not reuse O-ring.
- Apply petroleum jelly to O-ring.
Fig 1: Identifying O-Ring On Transfer Control Device
Courtesy of NISSAN NORTH AMERICA, INC.
Install the transfer control device.
1. Turn the control shift rod fully counterclockwise using suitable tool, and then put a mark on the control shift rod.

  Fig 2: Turning Control Shift Rod Fully Counterclockwise
  Courtesy of NISSAN NORTH AMERICA, INC.
2. Align the transfer control device shaft cutout with the mark on the control shift rod, and install.
  NOTE: Turn the transfer control device when the transfer control device connection does not match.

  Fig 3: Identifying Alignment Position Of Transfer Control Device Shaft Cutout And Control Shift Rod
  Courtesy of NISSAN NORTH AMERICA, INC.
3. Tighten the bolts to the specified torque. Refer to "EXPLODED VIEW ".
Install the breather hose to the transfer control device.
Connect the transfer control device harness connector.
After the installation, check the 4WD shift indicator pattern. If NG, adjust the position between the transfer assembly and transfer control unit. Refer to "PRECAUTION FOR TRANSFER ASSEMBLY AND TRANSFER CONTROL UNIT REPLACEMENT ".

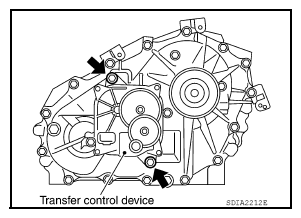

Fig 4: Locating Transfer Control Device Mounting Bolts
Courtesy of NISSAN NORTH AMERICA, INC.
