Connector Terminal Identification

WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

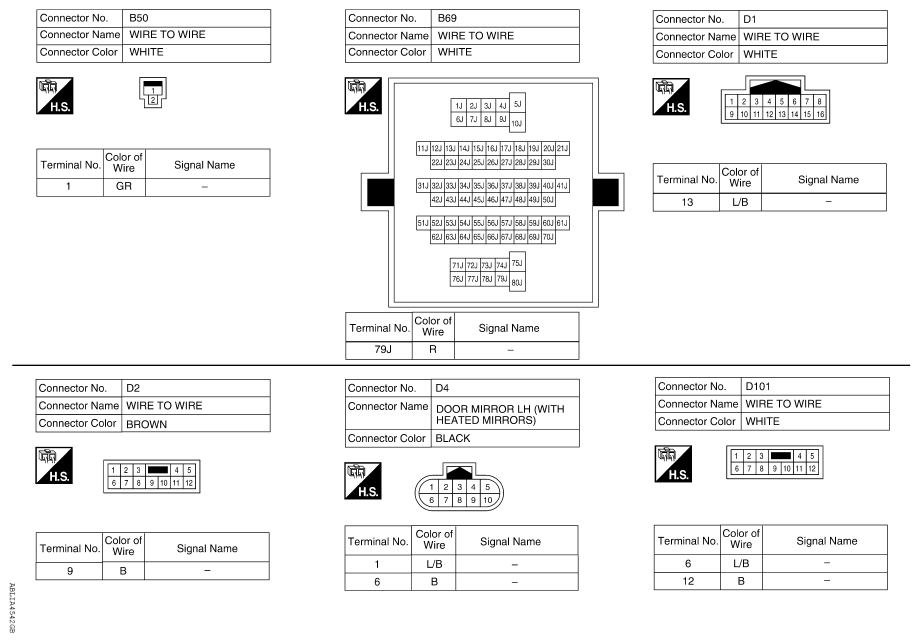

Fig 1: Rear Window Defogger Connector End View (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

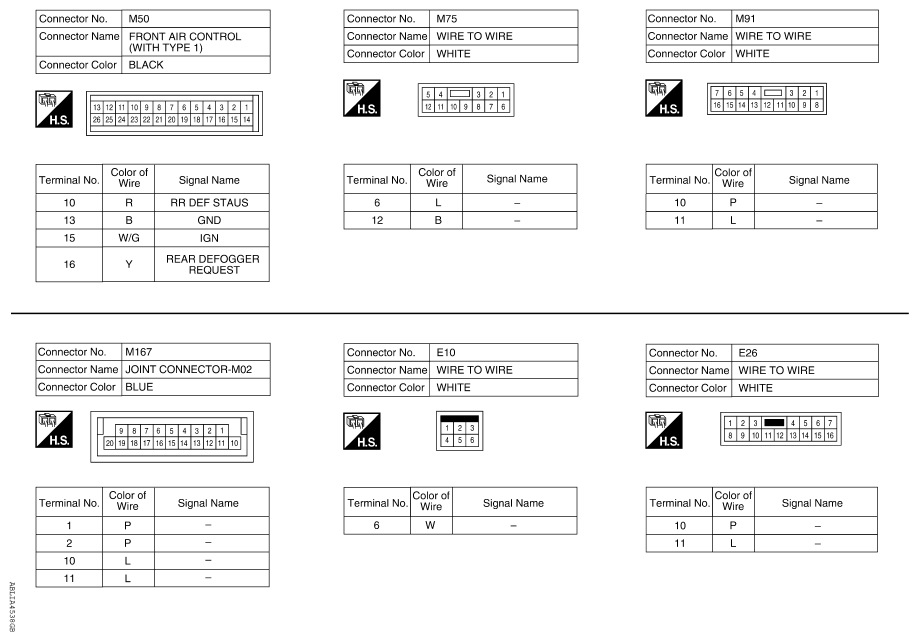

Fig 2: Rear Window Defogger Connector End Views (2 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

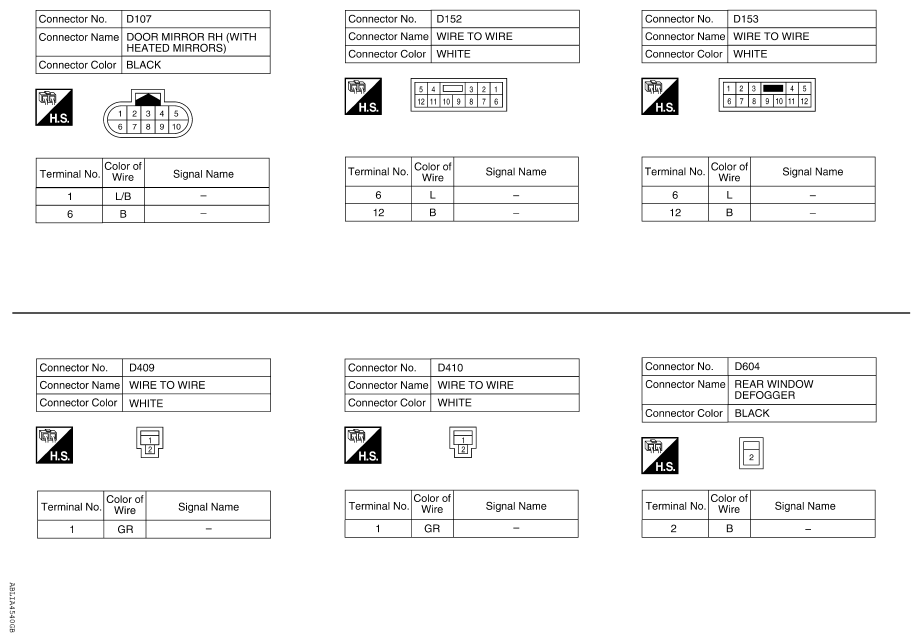

Fig 3: Rear Window Defogger Connector End View (3 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

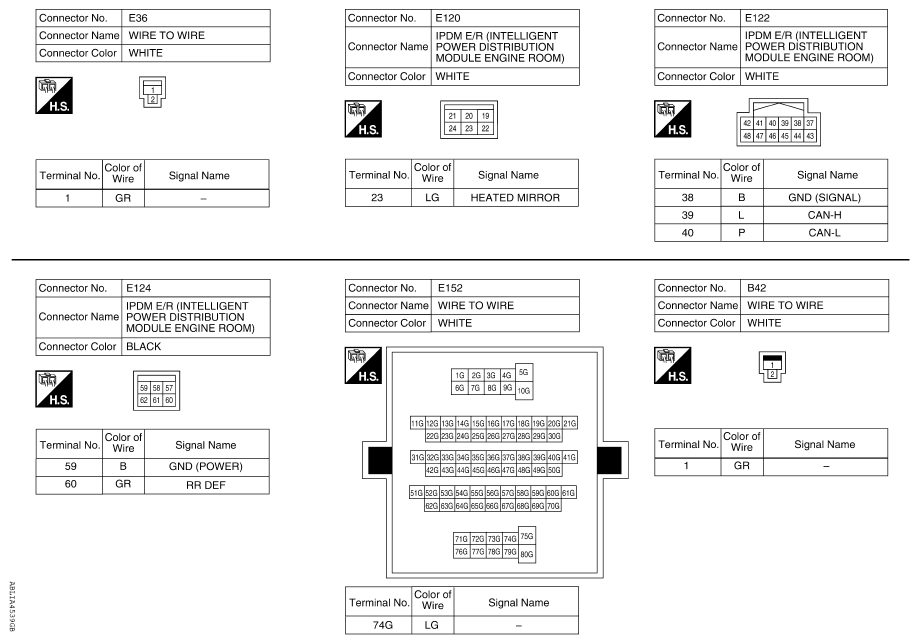

Fig 4: Rear Window Defogger Connector End View (4 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

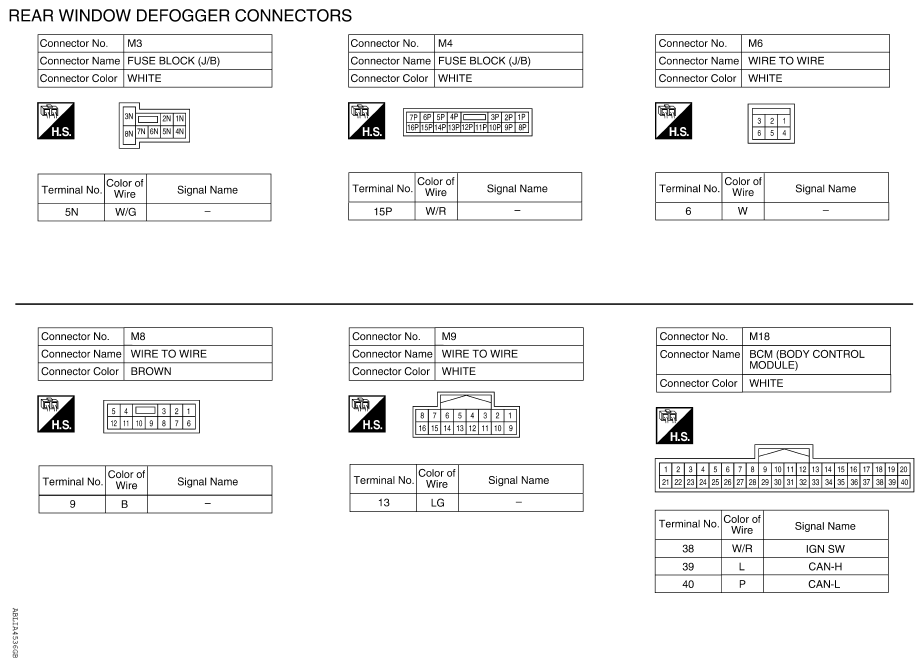

Fig 5: Rear Window Defogger Connector End View (5 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

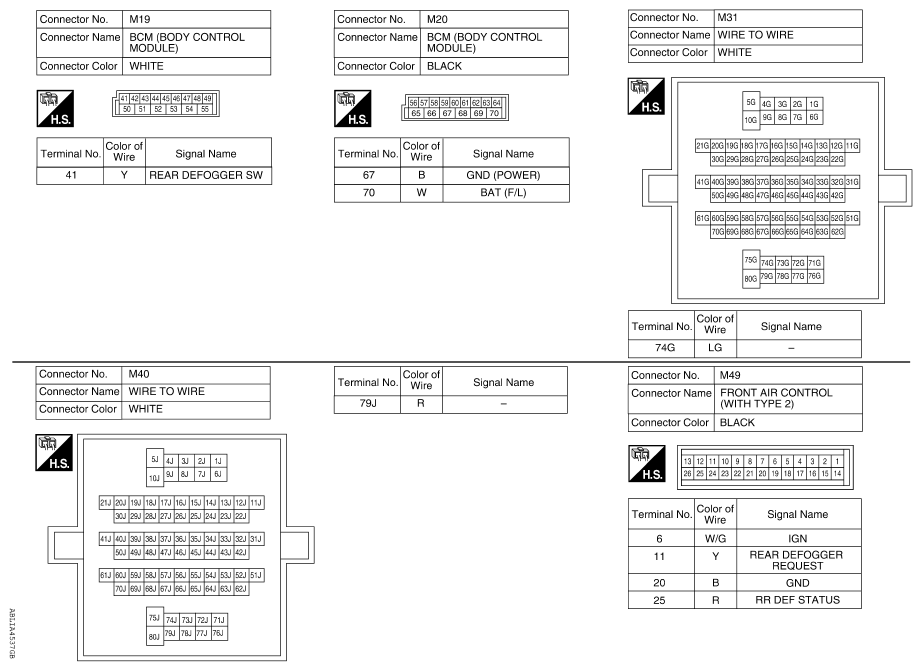

Fig 6: Rear Window Defogger Connector End View (6 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Rear Window Defogger Connector End View (7 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.
