Map Lamp Bulb

WARNING: This page is about a different car, the 2013 Infiniti M56 and 2013 Infiniti M37. However, it is still accessible from the selected car via links, so may be relevant.

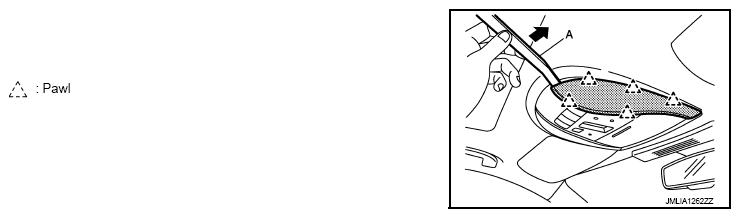

Insert a remover tool (A) into the gap between the lens to disengage fixing pawls as shown by the arrow in the figure below, and then remove the lens.

Fig 1: Removing Map Lamp Bulb Lens Using Tool
Courtesy of NISSAN NORTH AMERICA, INC.

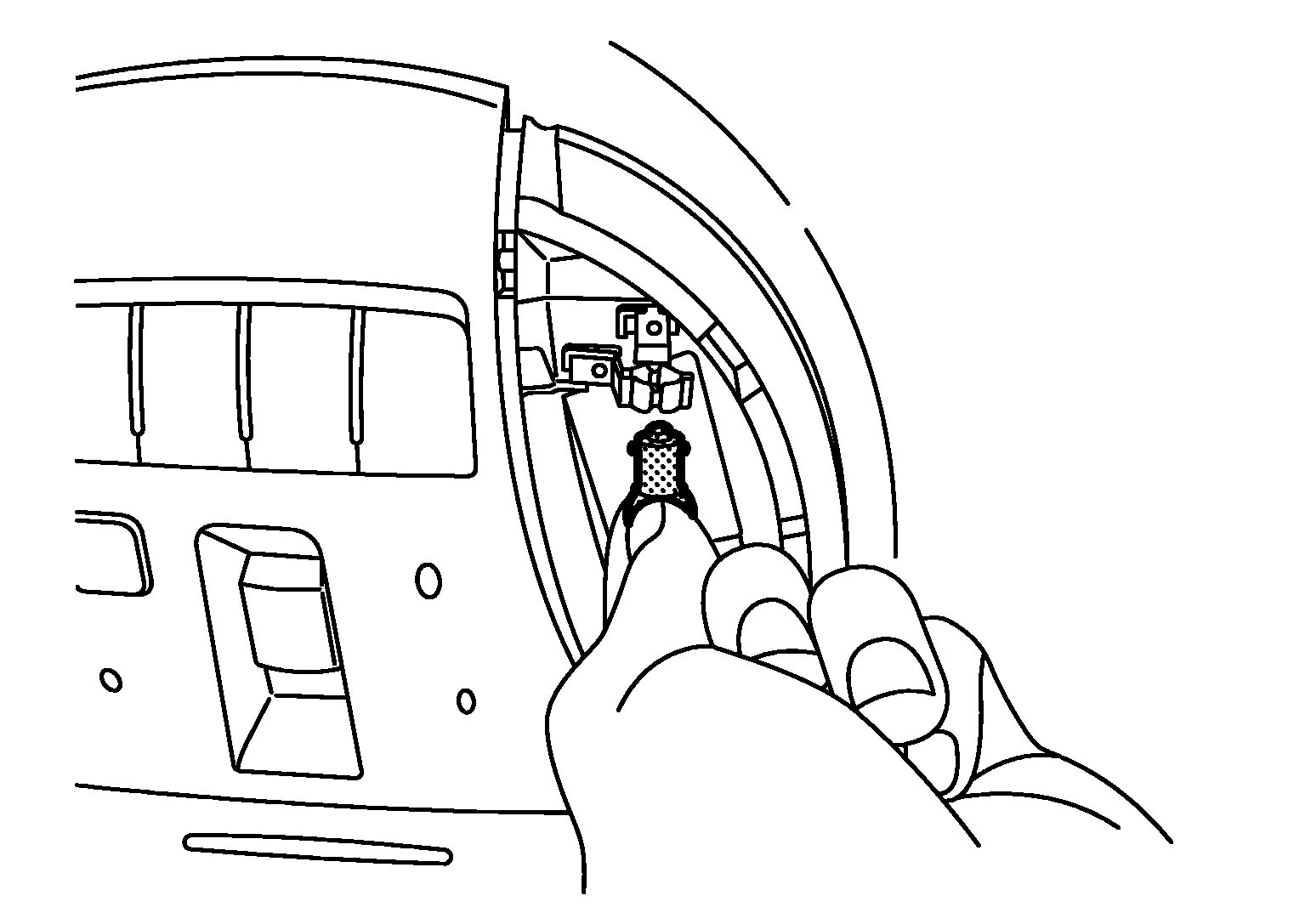

Rotate the bulb clockwise or counterclockwise by 90° and remove the bulb as shown in the figure below.

Fig 2: Removing Bulb
Courtesy of NISSAN NORTH AMERICA, INC.
