Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Infiniti M56 and 2013 Infiniti M37. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front and rear assist grips (LH and RH). Refer to "REMOVAL AND INSTALLATION ".
  2. Remove center pillar upper garnish (LH and RH). Refer to "CENTER PILLAR UPPER GARNISH: REMOVAL AND INSTALLATION ".
  3. Remove partially front body side welt (headlining side).
  4. Remove front pillar garnish. Refer to "FRONT PILLAR GARNISH: REMOVAL AND INSTALLATION ".
  5. Remove front camera finisher. Refer to "REMOVAL AND INSTALLATION ".
  6. Remove sun visor assembly (LH and RH). Refer to "REMOVAL AND INSTALLATION ".
  7. Remove front roof finisher. Refer to "REMOVAL AND INSTALLATION ".
  8. Remove sun visor holders (LH and RH). Refer to "REMOVAL AND INSTALLATION ".
  9. Open sunroof glass.
  10. Insert a remover tool between the headlining and roof panel, and disengage metal clips (B). Pull down map lamp assembly to disengage joint dual-lock fastener (A).
    CAUTION:
    • When removing, always use a remover tool that is made of plastic.
    • Map lamp is crimped from back of headlining.
    • To prevent damage of the sunroof, hold the sunroof with a rope or tape before removal operation.

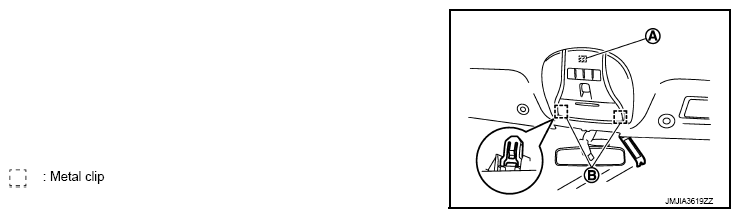

    Fig 1: Identifying Joint Dual-Lock Fastener And Metal Clips
    G08898142Courtesy of NISSAN NORTH AMERICA, INC.
  11. Remove map lamp assembly.
    NOTE: Operate from the opening part of sunroof to ease the work.
    1. Remove harness connector (A).
    2. Remove screws (B), and then remove map lamp bracket (1).
    3. Remove map lamp back plate (3) from headlining while pressing engagement of each pawls in the direction as shown in the figure below.
      CAUTION: When removing, support map lamp assembly (2) by hand so that it does not drop during the operation.

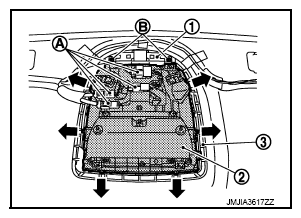

      Fig 2: Removing Map Lamp Back Plate
      G08240688Courtesy of NISSAN NORTH AMERICA, INC.
