Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Remove oil pump housing from oil pump cover.

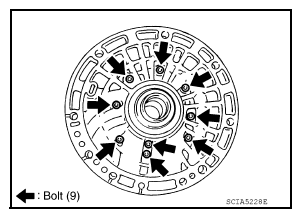

Fig 1: Locating Oil Pump Housing Mounting Bolts
Courtesy of NISSAN NORTH AMERICA, INC.
Remove oil pump housing oil seal using suitable tool.
CAUTION: Do not scratch oil pump housing.

Fig 2: Removing Oil Pump Housing Oil Seal
Courtesy of NISSAN NORTH AMERICA, INC.
Remove O-ring from oil pump housing.
CAUTION: Do not reuse O-ring.

Fig 3: Removing/Installing Oil Pump Housing O-Ring
Courtesy of NISSAN NORTH AMERICA, INC.
Remove O-ring from oil pump cover.
CAUTION: Do not reuse O-ring.

Fig 4: Removing/Installing Oil Pump Cover O-Ring
Courtesy of NISSAN NORTH AMERICA, INC.
