INFORMATION DISPLAY: System Description: Setting
Warning indication timing and time can be set.
Alert
Setting values for travel time, and low ambient temperature can be adjusted to meet the user's needs.
| Setting item | Setting range | Setting unit | |
|---|---|---|---|
| Alert | Timer | No setting, 0.5 h - 6 h | 0.5 h |
| ICY | ON/OFF | - | |
Maintenance
Setting values for engine oil, oil filter, tire, and other maintenance items can be adjusted to meet the user's needs.
| Setting item | Setting range | |
|---|---|---|
| Maintenance | Engine oil | No setting, 500 km - 30, 000 km (No setting, 250 mile - 18, 500 mile) |
| Oil filter | No setting, 500 km - 30, 000 km (No setting, 250 mile - 18, 500 mile) |
|
| Tire | No setting, 500 km - 30, 000 km (No setting, 250 mile - 18, 500 mile) |
|
| Other | No setting, 500 km - 30, 000 km (No setting, 250 mile - 18, 500 mile) |
|
Options
Setting values for language, unit, and effect items can be adjusted to meet the user's needs.
| Setting item | ||
|---|---|---|
| Options | Language | ENGLISH |
| FRANCAISE | ||
| Unit | miles, MPG, °F | |
| km, l/100 km, °C | ||
| Effect | ON/OFF | |
Settings-reject Indication
- Regarding settings-reject indications, "SETTING CAN BE OPERATED WHEN STOPPED" is shown on the information display when indication conditions are satisfied.

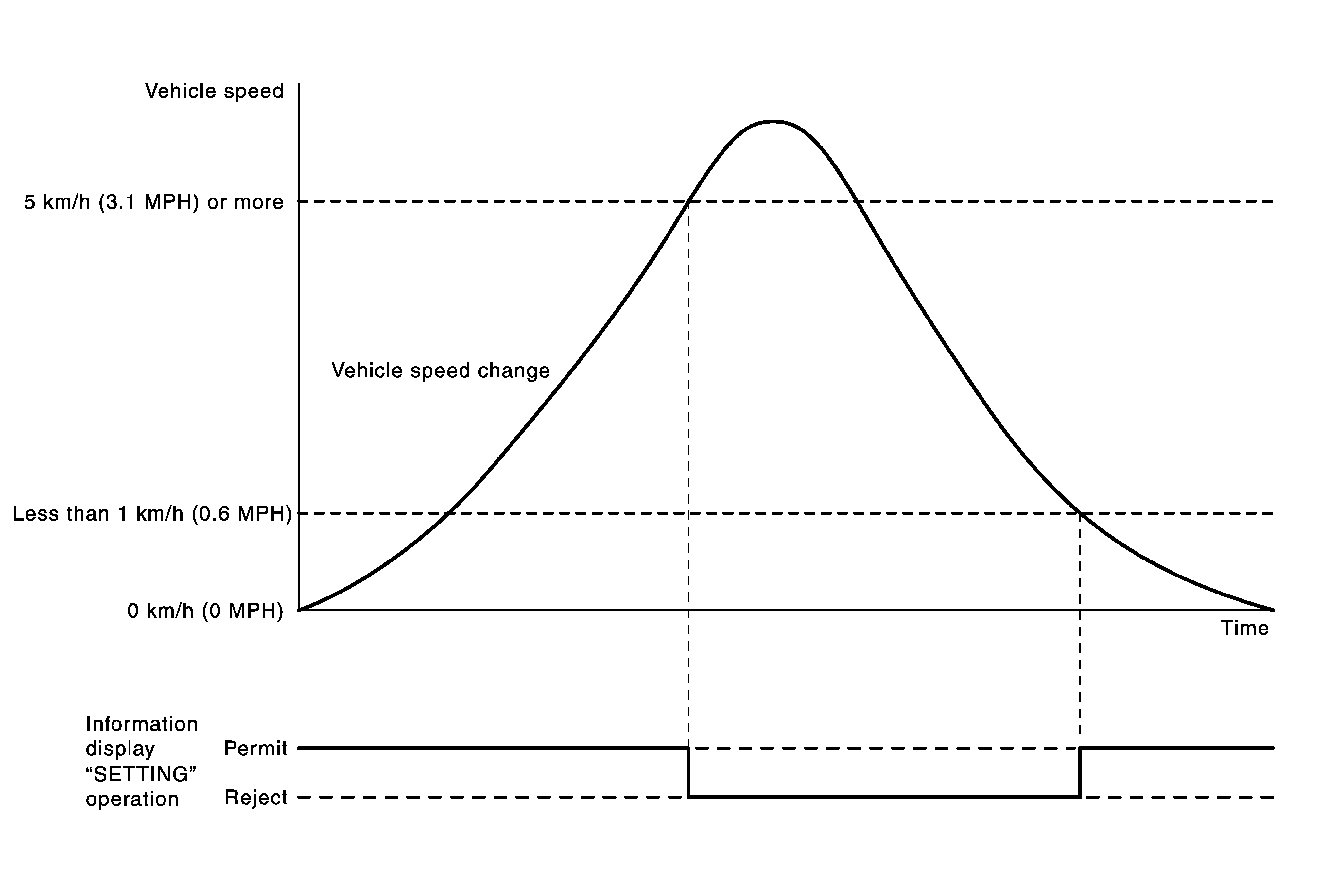

- When reaching 5 km/h (3.1 MPH) after accelerating from a stopping condition, a settings-reject indication is displayed.
- When reaching less than 1 km/h (0.6 MPH) after decelerating from 5 km/h (3.1 MPH), a settings-reject indication is cancelled to allow settings.
- The combination meter judges a vehicle condition based on the following signals and displays a settings-reject indication on the information display.
Signal name Signal path Ignition signal - Vehicle speed signal ABS actuator and electric unit (control unit) → Combination meter via CAN communication line
