Interrupt Indication
- The combination meter displays an interrupt regarding a warning, alert, and maintenance on the information display, based on signals received from each unit and switch.
- When conditions are satisfied, the normal screen switches to a warning screen to display an interrupt.
Door Open Warning
- When all the following operating conditions are satisfied, the combination meter displays a door open warning on the information display by an interrupt.
Operating condition Ignition switch ON Door Any door is open - The combination meter judges showing/hiding of "door open warning", according to the signals below:
Signal name Signal path Ignition signal - Door switch signal Door switch ==> BCM, then → Combination meter via CAN communication line
Trunk Open Warning
- When all the following operating conditions are satisfied, the combination meter displays a trunk open warning on the information display by an interrupt.
Operating condition Ignition switch ON Trunk Open - The combination meter judges showing/hiding of "trunk open warning", according to the signals below:
Signal name Signal path Ignition signal - Trunk switch signal Trunk room lamp switch ==> BCM, then → Combination meter via CAN communication line
Parking Brake Release Warning
- When all the following operating conditions are satisfied, the combination meter displays a parking brake release warning on the information display by an interrupt.
Operating condition Ignition switch ON Parking brake Applied Vehicle speed 7 km/h (4.3 MPH) or more - The combination meter judges showing/hiding of "parking brake release warning", according to the signals below:
Signal name Signal path Ignition signal - Parking brake switch signal Parking brake switch ==> Combination meter Vehicle speed signal ABS actuator and electric unit (control unit) → Combination meter via CAN communication line
Low Fuel Warning
- When all the following operating conditions are satisfied, the combination meter displays a low fuel warning on the information display by an interrupt.
Operating condition Ignition switch ON Fuel remaining quantity(1) Approximately 16 l (4 - 1/4 US gal, 3 - 1/2 Imp gal) or less (including fuel remained) (1) With the vehicle in a horizontal position - The combination meter judges showing/hiding of "low fuel warning", according to the signals below:
Signal name Signal path Ignition signal - Fuel level sensor signal Fuel level sensor ==> Combination meter

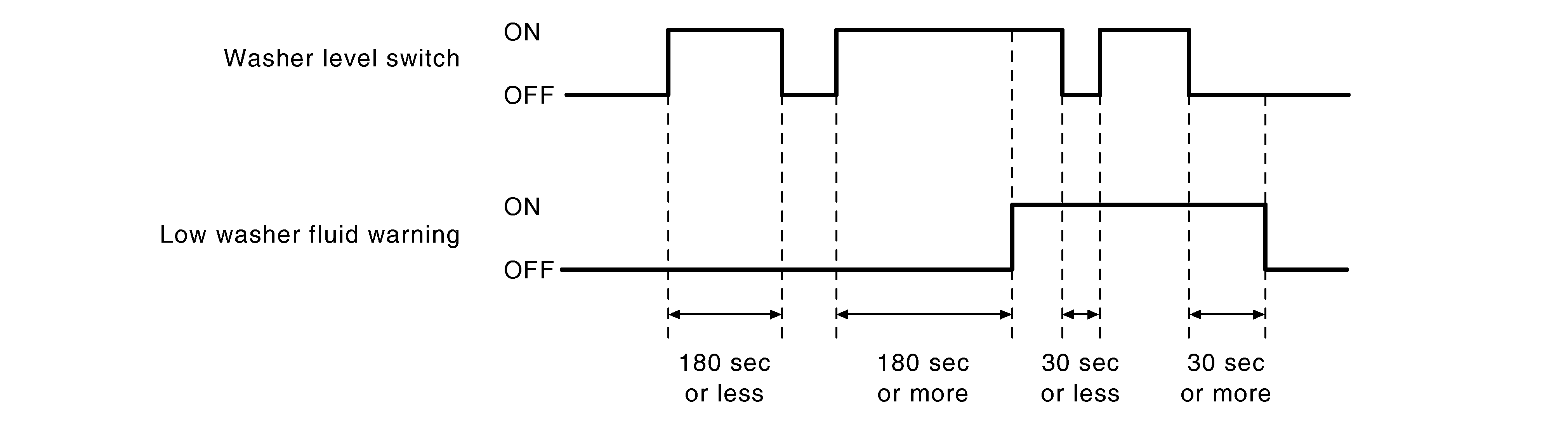

Low washer fluid warning
- When all the following operating conditions are satisfied, the combination meter displays a low washer fluid warning on the information display by an interrupt.
Operating condition Ignition switch ON Washer level switch Decrease in fluid level (washer level switch ON for 180 seconds or more) - The combination meter judges showing/hiding of "low washer fluid warning", according to the signals below:
Signal name Signal path Ignition signal - Washer level switch signal Washer level switch ==> Combination meter
Fuel Filler Cap Warning
- The combination meter judges showing/hiding of "fuel filler cap warning", according to the signals below:
Signal name Signal path Ignition signal - Fuel filler cap warning display signal ECM → Combination meter via CAN communication line - For further information, refer to "FUEL FILLER CAP WARNING SYSTEM: SYSTEM DESCRIPTION " (VQ37VHR) or "FUEL FILLER CAP WARNING SYSTEM: SYSTEM DESCRIPTION " (VK56VD).
Low Tire Pressure Warning
- The combination meter judges showing/hiding of "low tire pressure warning", according to the signals below:
Signal name Signal path Ignition signal - Low tire pressure warning lamp signal BCM → Combination meter via CAN communication line - For further information, refer to "SYSTEM DESCRIPTION ".
Travel Time (Alert)
- When all the following operating conditions are satisfied, the combination meter displays a travel time on the information display by an interrupt.
Operating condition Ignition switch Switch-ON time - The combination meter judges showing/hiding of "travel time", according to the signal below:
Signal name Signal path Ignition signal -
Low Ambient Temperature (Alert)
- When all the following operating conditions are satisfied, the combination meter displays a low ambient temperature on the information display by an interrupt.
Operating condition Ignition switch ON Ambient temperature 3 °C (37 °F) or less information display "ON" is selected in "SETTING" - The combination meter judges showing/hiding of "low ambient temperature", according to the signals below:
Signal name Signal path Ignition signal - Ambient sensor signal Ambient sensor ==> A/C auto amp., then → Combination meter via CAN communication line
Tire (Maintenance)
- When all the following operating conditions are satisfied, the combination meter displays a tire warning on the information display by an interrupt.
Operating condition Ignition switch ON Mileage More than value set in "SETTING" - The combination meter judges showing/hiding of "tire warning", according to the signals below:
Signal name Signal path Ignition signal - Vehicle speed signal ABS actuator and electric unit (control unit) → Combination meter via CAN communication line
Oil Filter (Maintenance)
- When all the following operating conditions are satisfied, the combination meter displays a oil filter warning on the information display by an interrupt.
Operating condition Ignition switch ON Mileage More than value set in "SETTING" - The combination meter judges showing/hiding of "oil filter warning", according to the signals below:
Signal name Signal path Ignition signal - Vehicle speed signal ABS actuator and electric unit (control unit) → Combination meter via CAN communication line
Engine Oil (Maintenance)
- When all the following operating conditions are satisfied, the combination meter displays a engine oil warning on the information display by an interrupt.
Operating condition Ignition switch ON Mileage More than value set in "SETTING" - The combination meter judges showing/hiding of "engine oil warning", according to the signals below:
Signal name Signal path Ignition signal - Vehicle speed signal ABS actuator and electric unit (control unit) → Combination meter via CAN communication line
Other (Maintenance)
- When all the following operating conditions are satisfied, the combination meter displays a other warning on the information display by an interrupt.
Operating condition Ignition switch ON Mileage More than value set in "SETTING" - The combination meter judges showing/hiding of "other warning", according to the signals below:
Signal name Signal path Ignition signal - Vehicle speed signal ABS actuator and electric unit (control unit) → Combination meter via CAN communication line
Meter Illumination Level Indication
When receiving the following signals, the combination meter causes an interrupt on the information display to indicate an illumination level.
| Signal name | Signal path |
|---|---|
| Ignition signal | - |
| Illumination control switch signal (+) | Meter control switch ==> Combination meter |
| Illumination control switch signal (-) |
