Overall Sequence

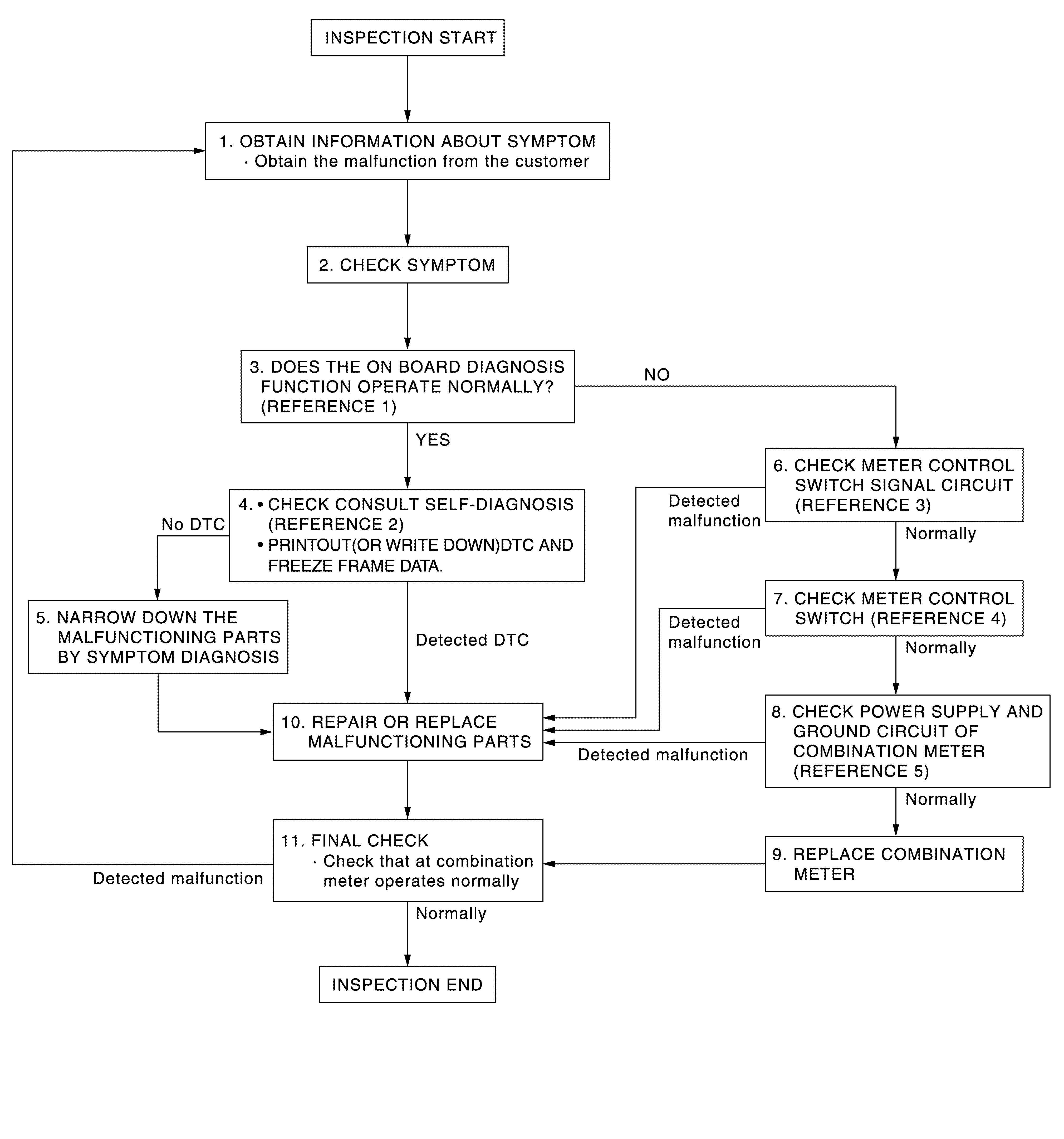

Fig 1: Identifying Diagnosis & Repair Work Flow Chart

G08099660

Courtesy of NISSAN NORTH AMERICA, INC.

Reference 1... "ON BOARD DIAGNOSIS FUNCTION ".
Reference 2... "DTC INDEX ".
Reference 3... "DIAGNOSIS PROCEDURE ".
Reference 4... "COMPONENT INSPECTION ".
Reference 5... "COMBINATION METER: DIAGNOSIS PROCEDURE ".
