Shift Lock Relay Connector End View (E52)

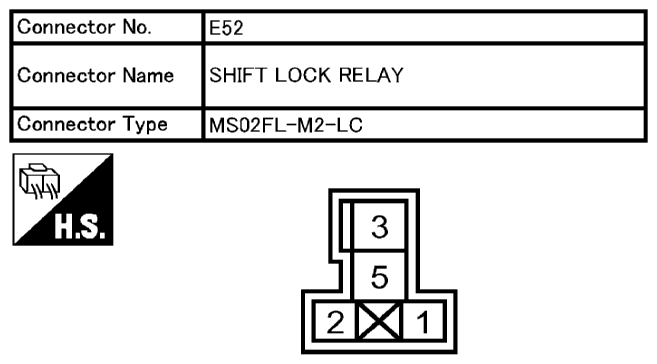

Fig 1: Shift Lock Relay Connector End View (E52)

G10677944

Courtesy of NISSAN NORTH AMERICA, INC.
