Inline Connector End View (B551)

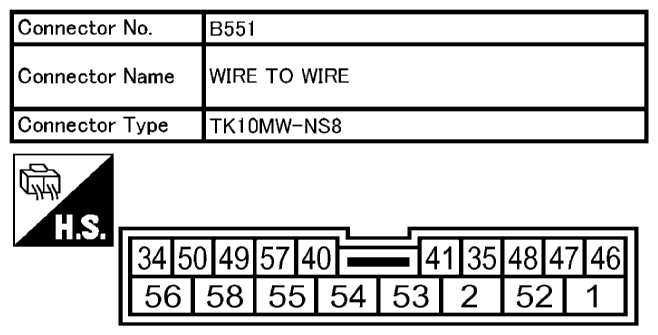

Fig 1: Inline Connector End View (B551)

G10677830

Courtesy of NISSAN NORTH AMERICA, INC.
