CAN Gateway Connector End View (M125)

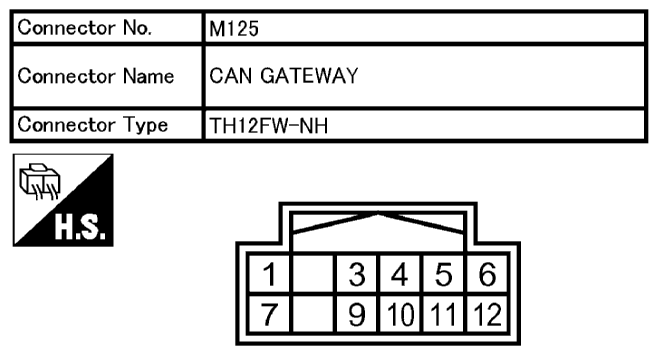

Fig 1: CAN Gateway Connector End View (M125)

G10678180

Courtesy of NISSAN NORTH AMERICA, INC.
