Exploded View: VQ37VHR

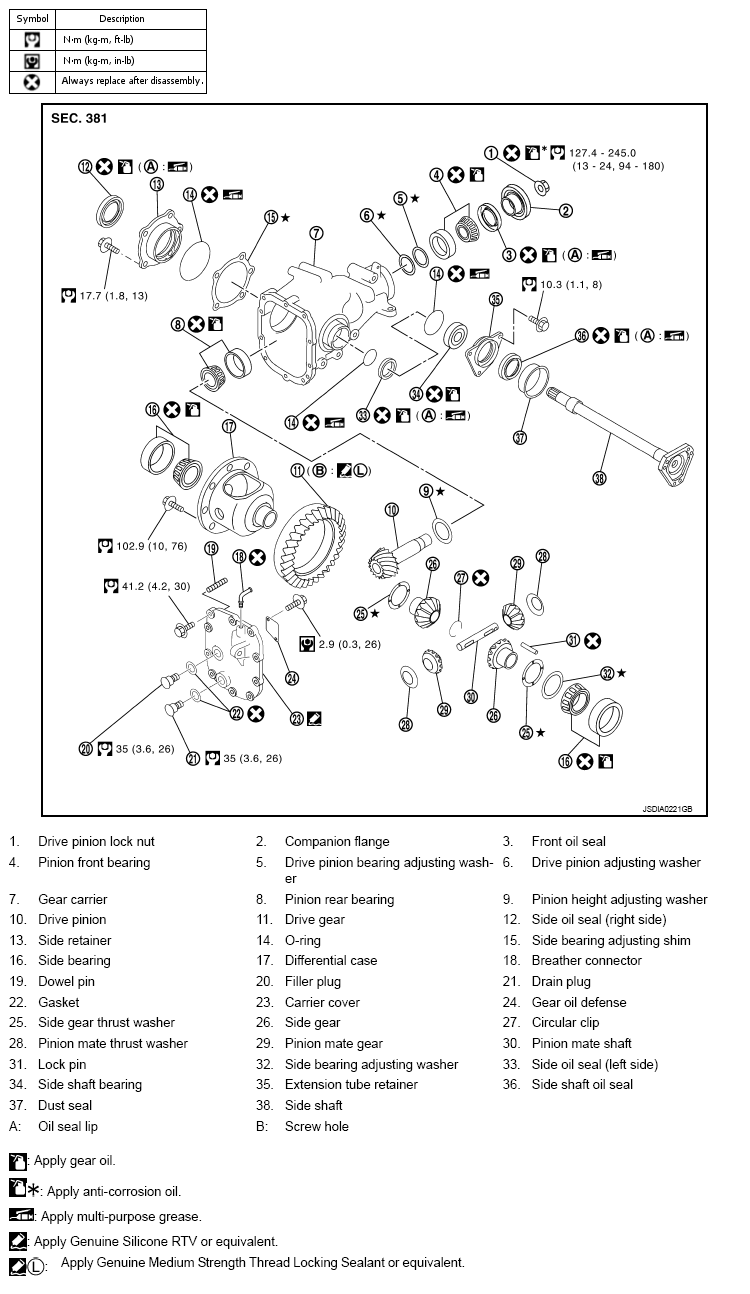

Fig 1: Exploded View Of Differential Assembly With Torque Specifications (VQ37VHR)
G08648310Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
