Exploded View: VK56VD

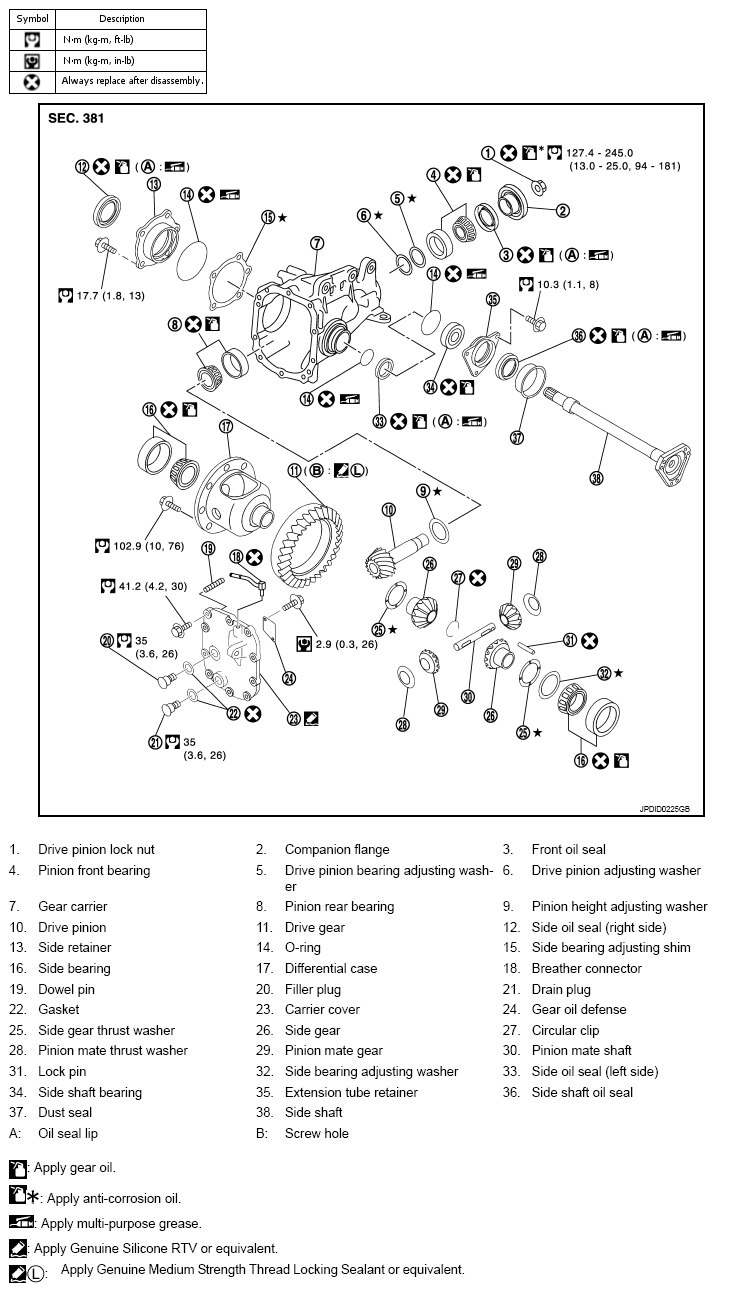

Fig 1: Exploded View Of Differential Assembly With Torque Specifications (VK56VD)
G08648311Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
