Removal And Installation
>>
Glass Lid
>>
Exploded View
Exploded View

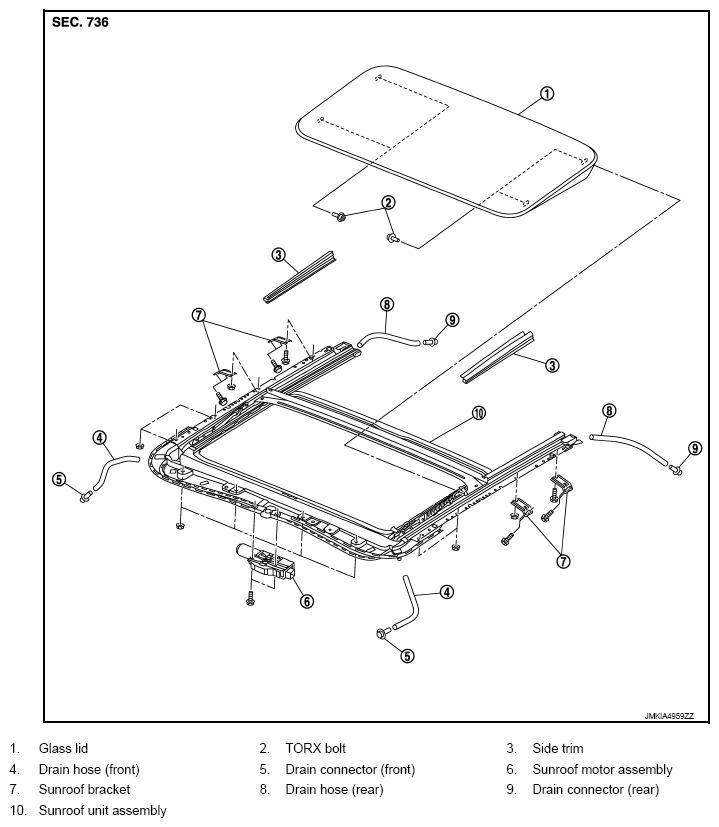

Fig 1: Exploded View Of Sunroof Glass Lid
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
