AUTOMATIC DRIVE POSITIONER SYSTEM: System Diagram

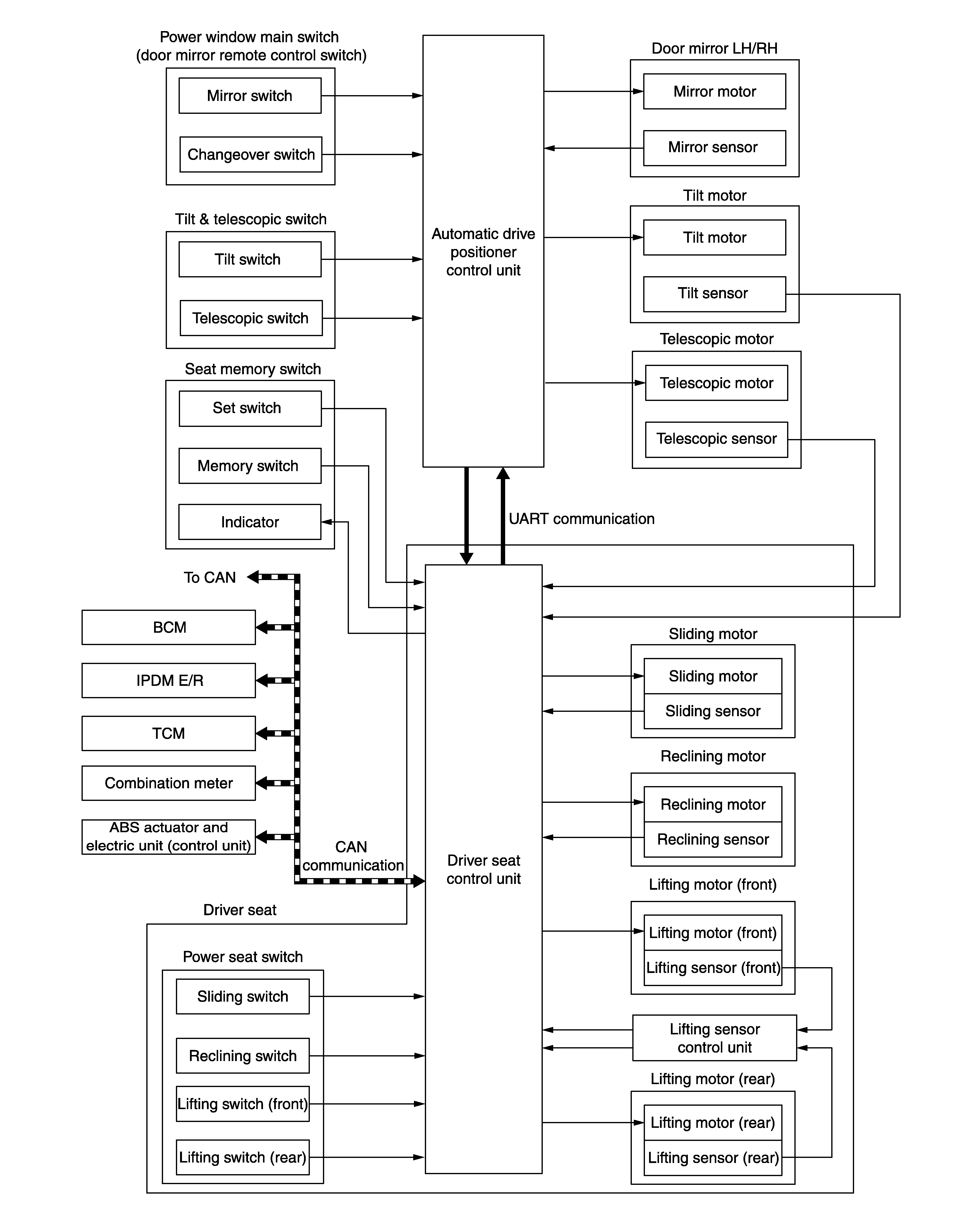

Fig 1: Automatic Drive Positioner System Diagram

G07020850

Courtesy of NISSAN NORTH AMERICA, INC.
