DOOR MIRROR SYSTEM: System Diagram

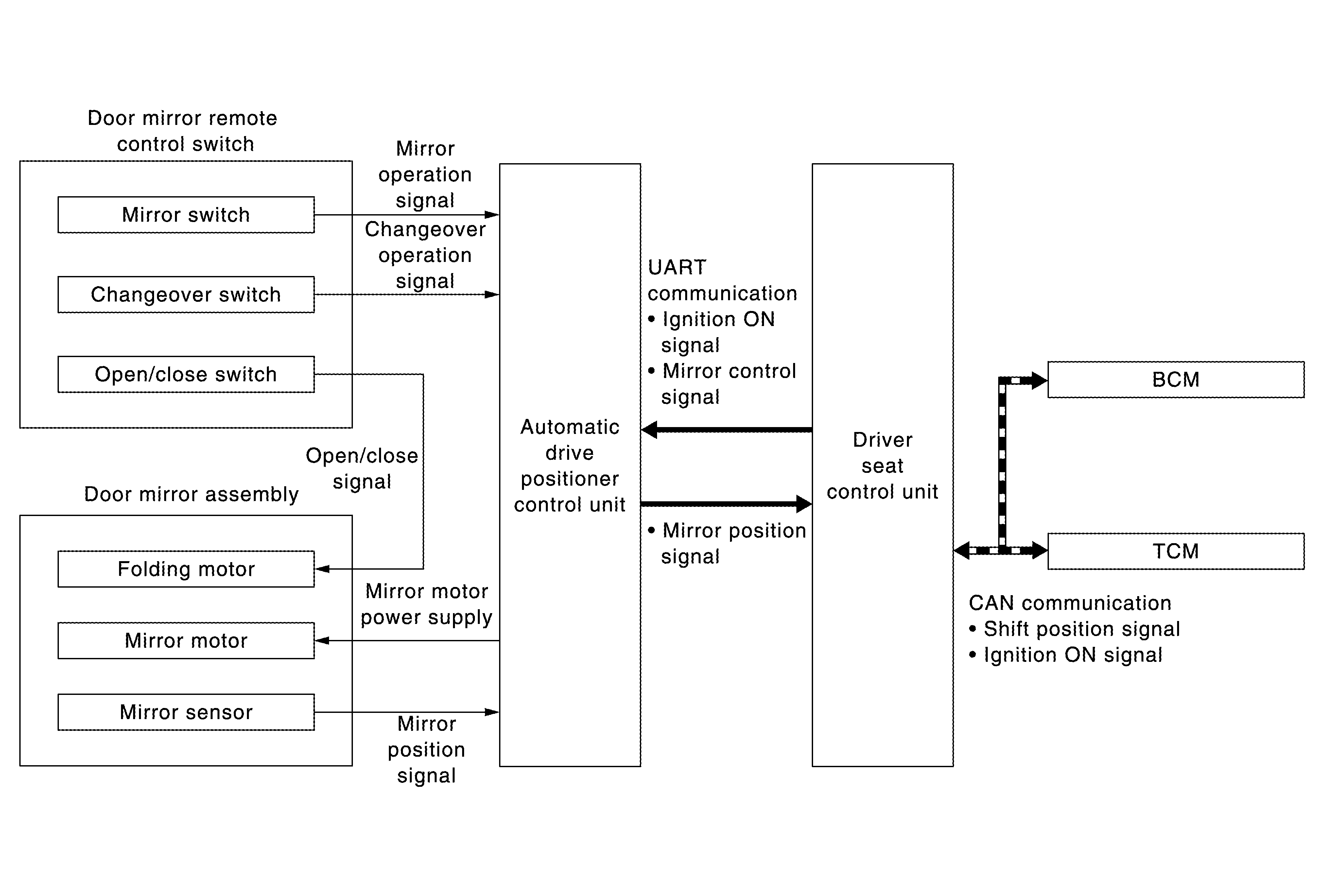

Fig 1: Identifying Door Mirror System Diagram

G08654948

Courtesy of NISSAN NORTH AMERICA, INC.
