Removal And Installation
>>
Hood
>>
Exploded View
Exploded View

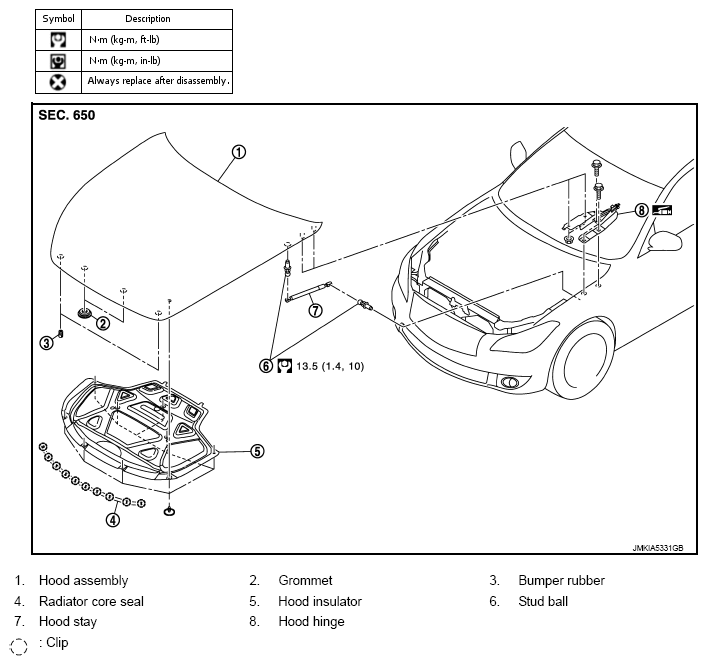

Fig 1: Exploded View Of Hood With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols in the figure.
