Combination Meter

The buzzer (1) for the warning chime system is integrated in the combination meter.

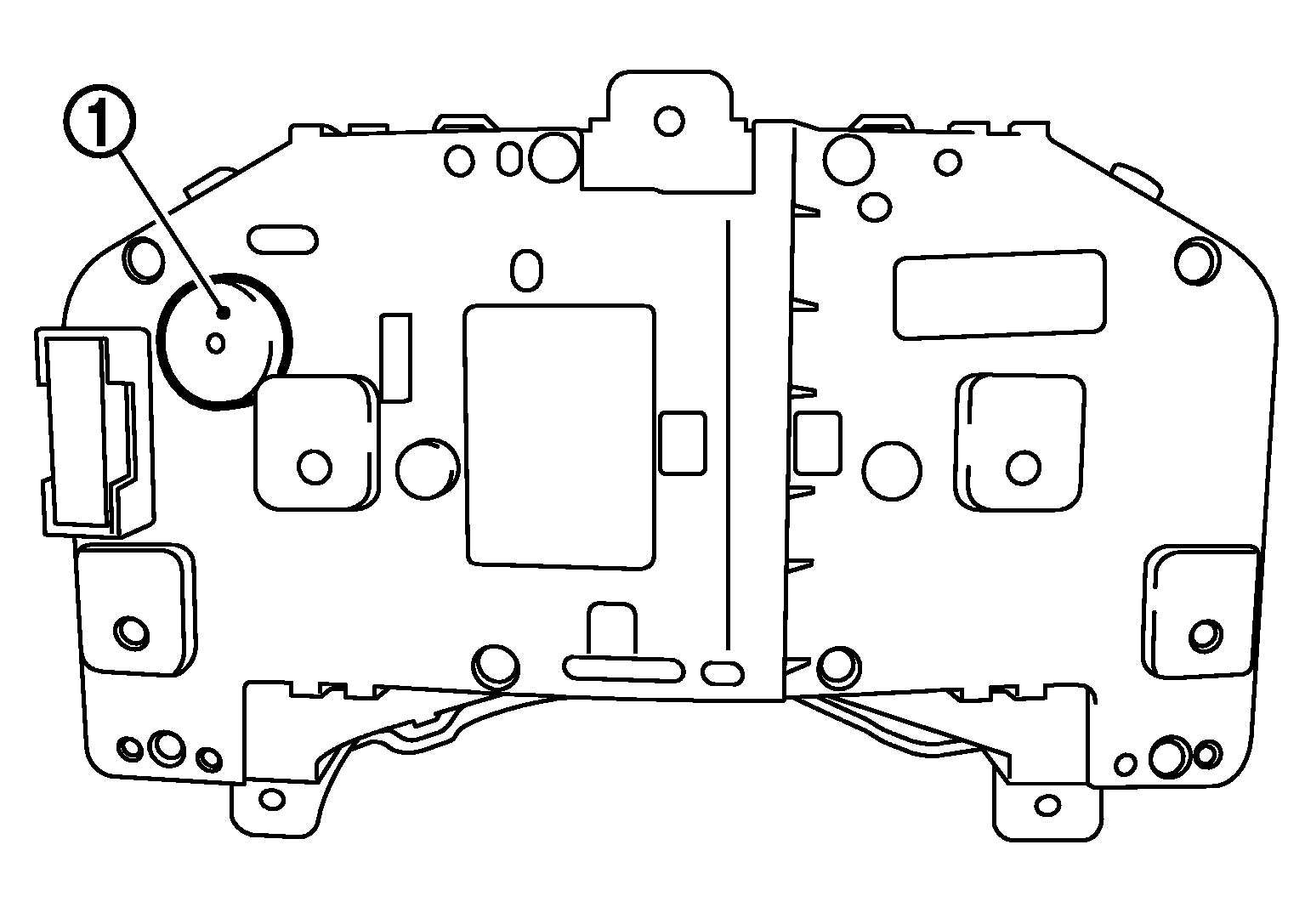

Fig 1: Identifying Buzzer

G07021183

Courtesy of NISSAN NORTH AMERICA, INC.
