Removal and Installation: Installation

Note the following and Install in the reverse order of removal.

• Apply the recommended grease* to the full periphery of the A/T assembly shaft spline (A).

  *: Lithium-based grease including molybdenum disulphide.

  CAUTION:

  • Remove any grease that contacts the A/T assembly shaft end (B).
  • Never apply grease to the A/T assembly CSC end (C). Fully remove any grease that contacts the CSC end.

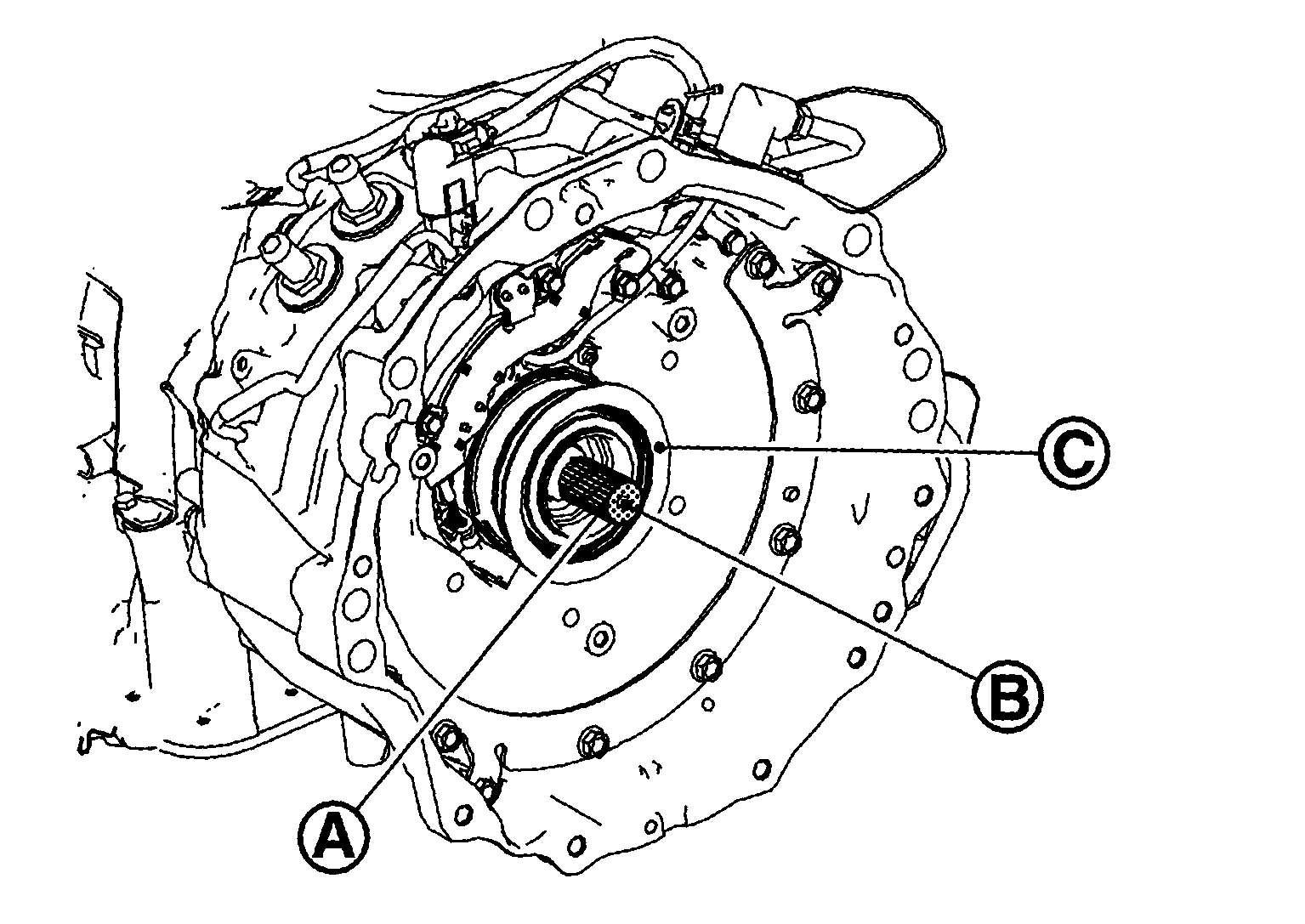

    Fig 1: Identifying A/T Assembly Shaft Spline, End And CSC End

    Courtesy of NISSAN NORTH AMERICA, INC.
• When installing A/T assembly to the engine, attach the fixing bolts in accordance with the following standard.

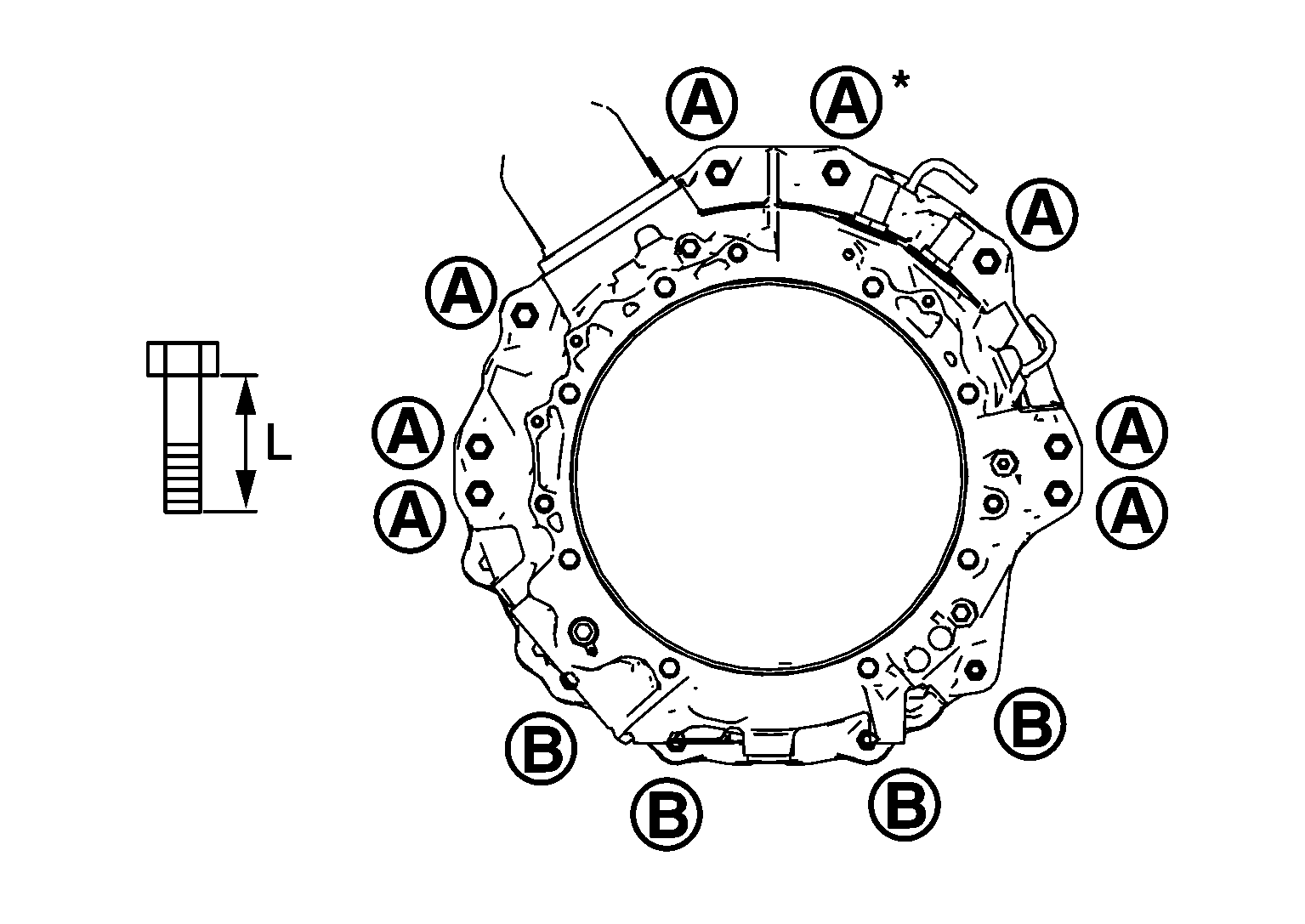

  Fig 2: Identifying A/T Assembly To Engine And Engine To A/T Assembly Fixing Bolts

  Courtesy of NISSAN NORTH AMERICA, INC.

  Bolt symbol	A	B
  Insertion direction	A/T assembly to engine	Engine to A/T assembly
  Number of bolts	8	4
  Bolt length "L" mm (in)	65 (2.56)	35 (1.38)
  Tightening torque Nm (kg-m, ft-lb)	75 (7.7, 55)	46.6 (4.8, 34)
  *: Tightening the bolt with bracket. Refer to "EXPLODED VIEW ".
