A/T CONTROL SYSTEM: System Diagram

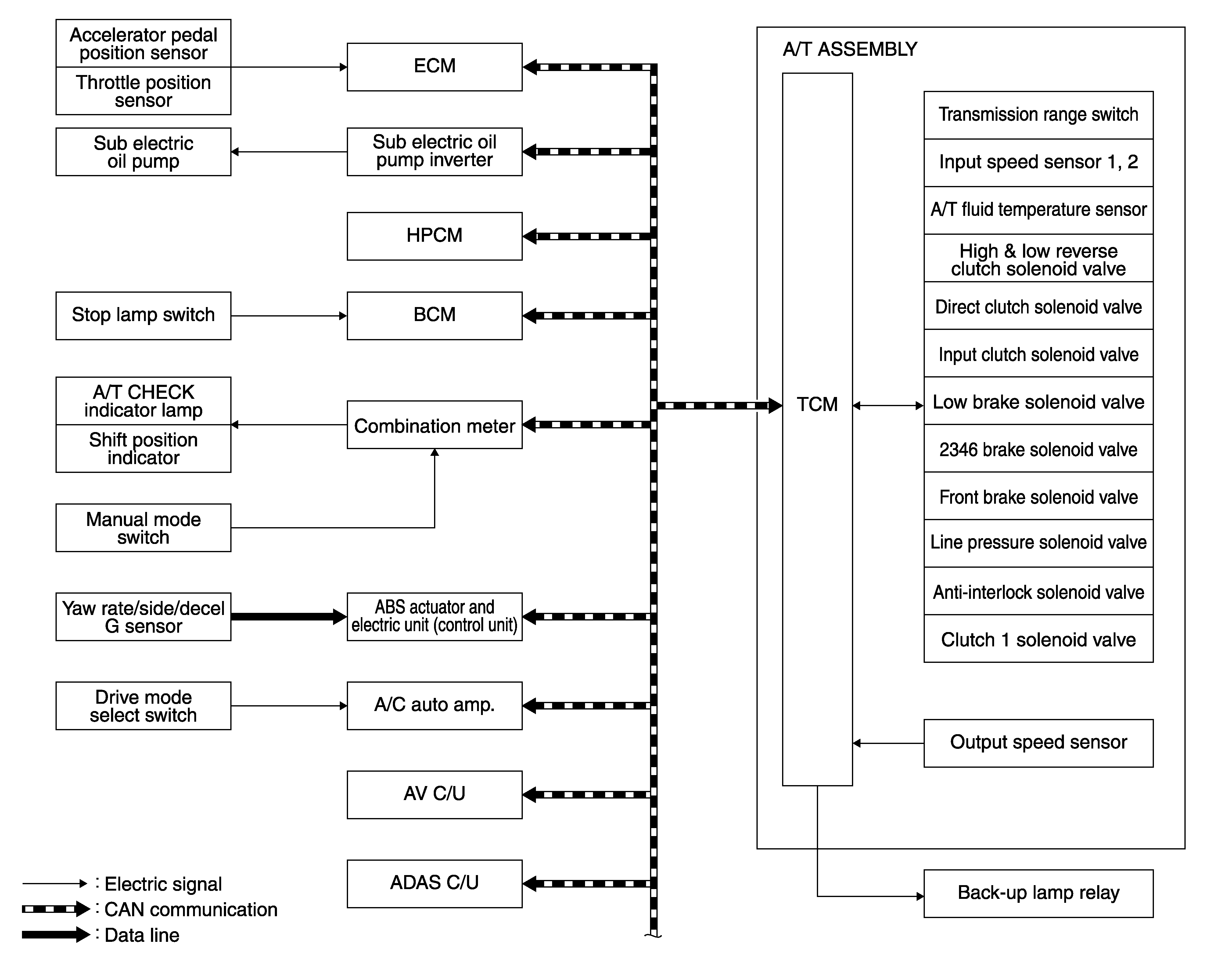

Fig 1: A/T Control - System Diagram

G08255397

Courtesy of NISSAN NORTH AMERICA, INC.
