Symptom Table

The diagnostics item numbers show the sequence for inspection. Inspect in order from item 1.

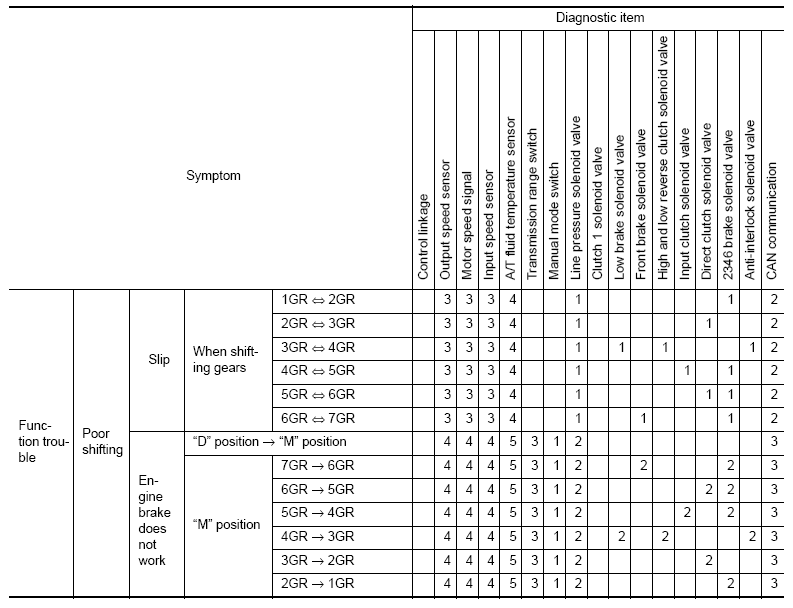

Fig 1: Diagnostic Item Symptom Chart (1 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

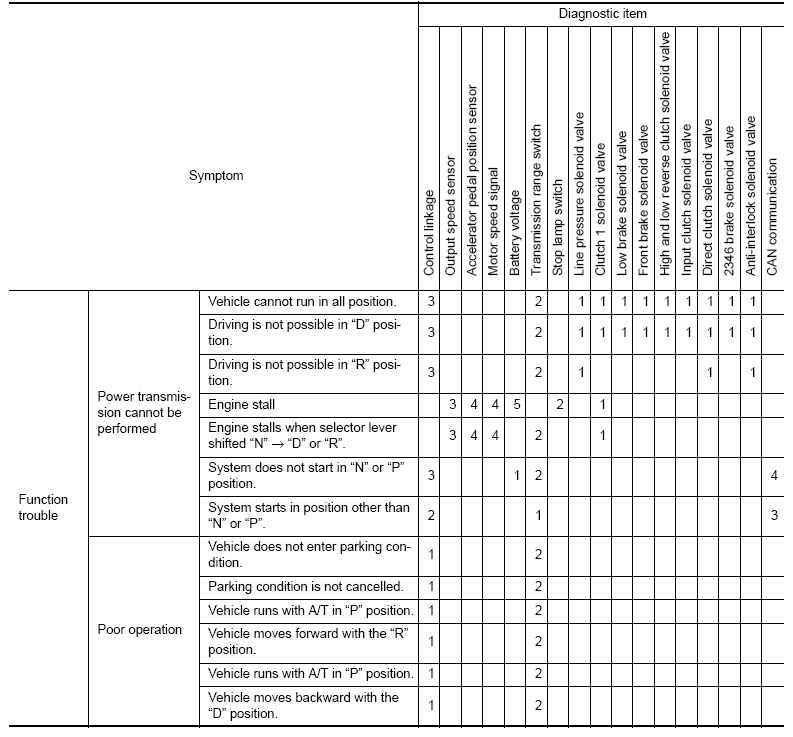

Fig 2: Diagnostic Item Symptom Chart (2 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

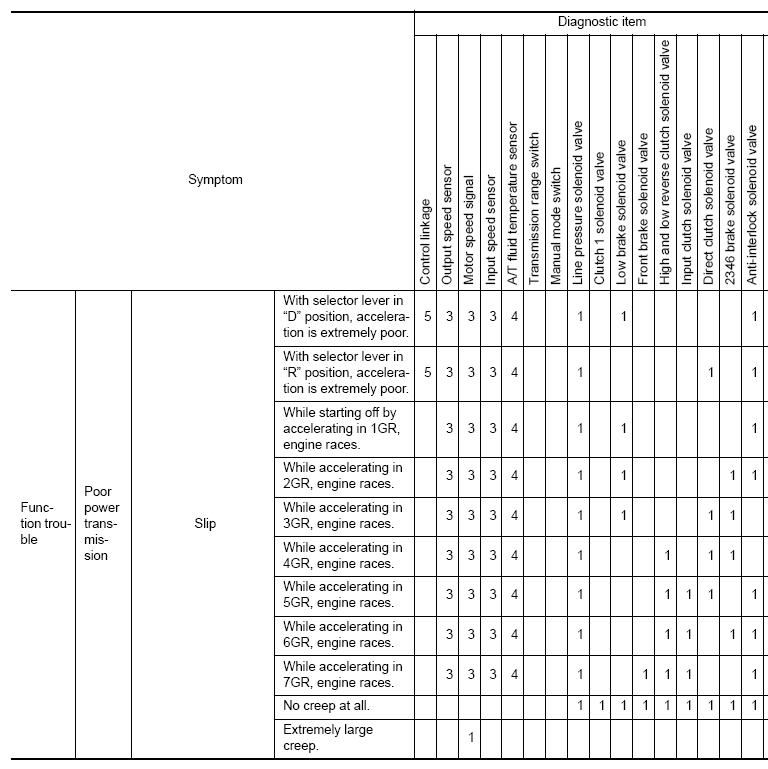

Fig 3: Diagnostic Item Symptom Chart (3 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

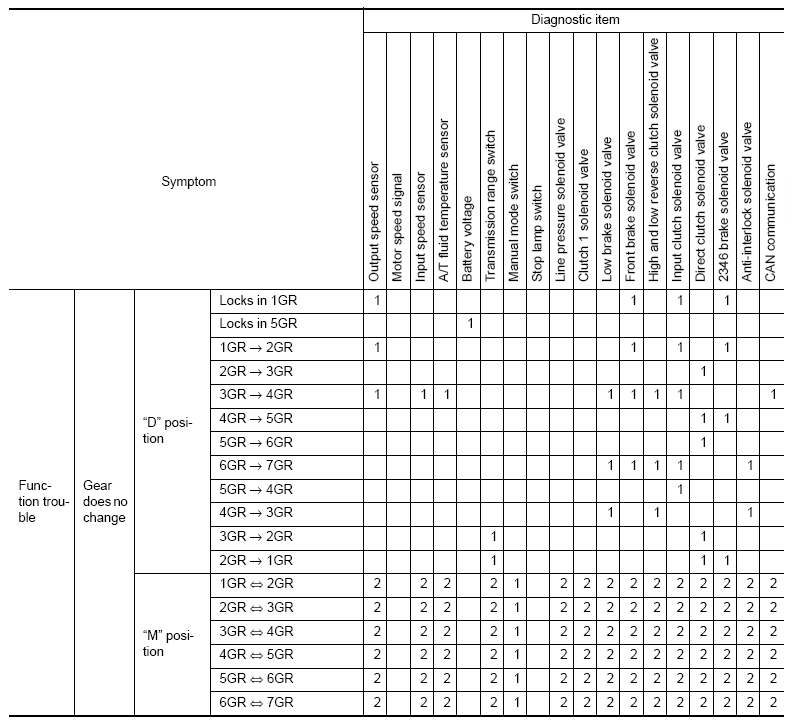

Fig 4: Diagnostic Item Symptom Chart (4 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

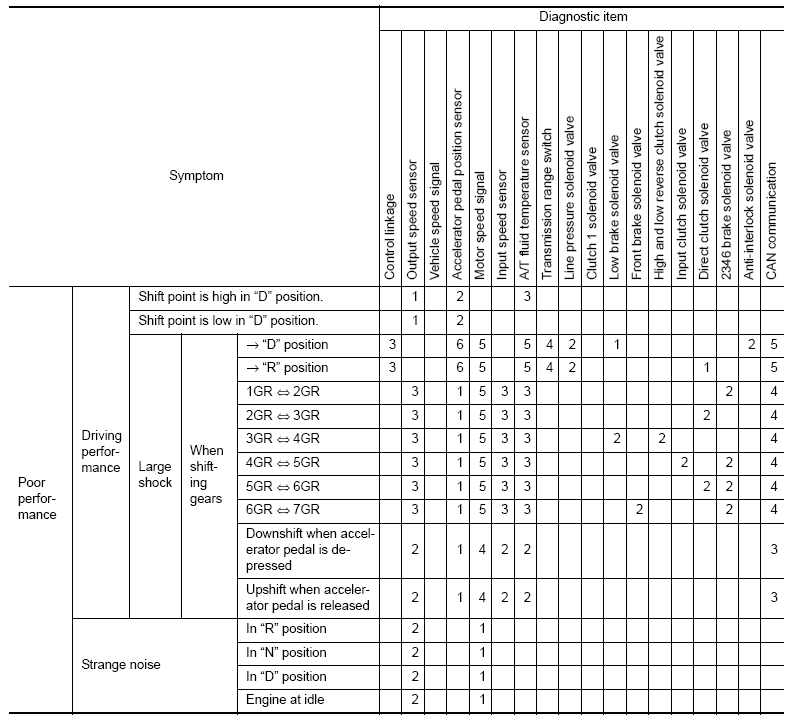

Fig 5: Diagnostic Item Symptom Chart (5 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.
