Air Flow

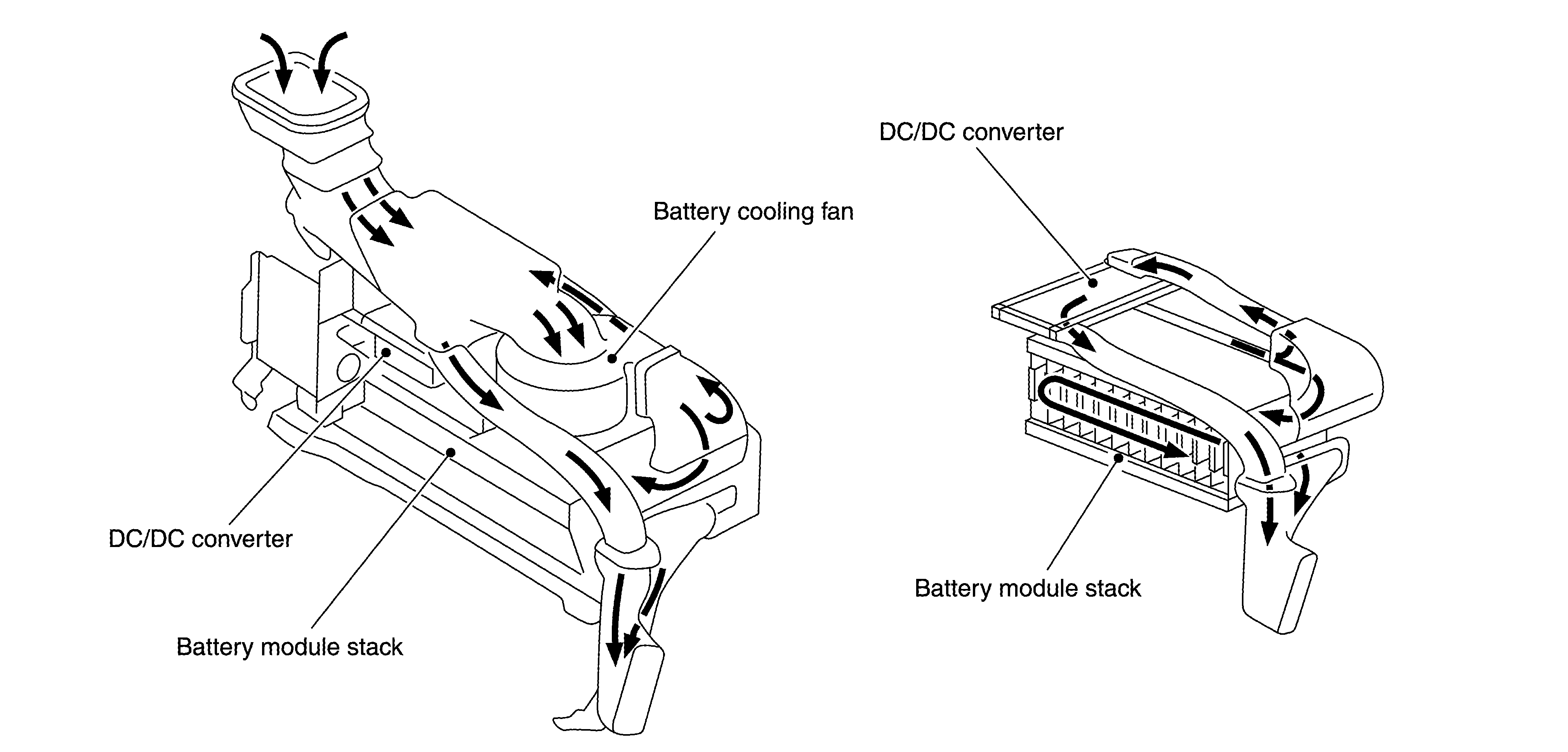

Fig 1: Air Flow Operating Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

The air from the passenger compartment passes from the rear parcel shelf through a duct and is sent to the battery cooling fan. The air is then divided for 2 systems (battery module stack and DC/DC converter) to cool the entire battery pack.
