Li-ion Battery

The Li-ion battery (battery pack) is installed inside the trunk room.
The Li-ion battery controller, DC/DC converter, and battery junction box are installed on the battery pack.

Fig 1: Identifying Li-ion Battery Controller, DC/DC Converter And Battery Junction Box
Courtesy of NISSAN NORTH AMERICA, INC.

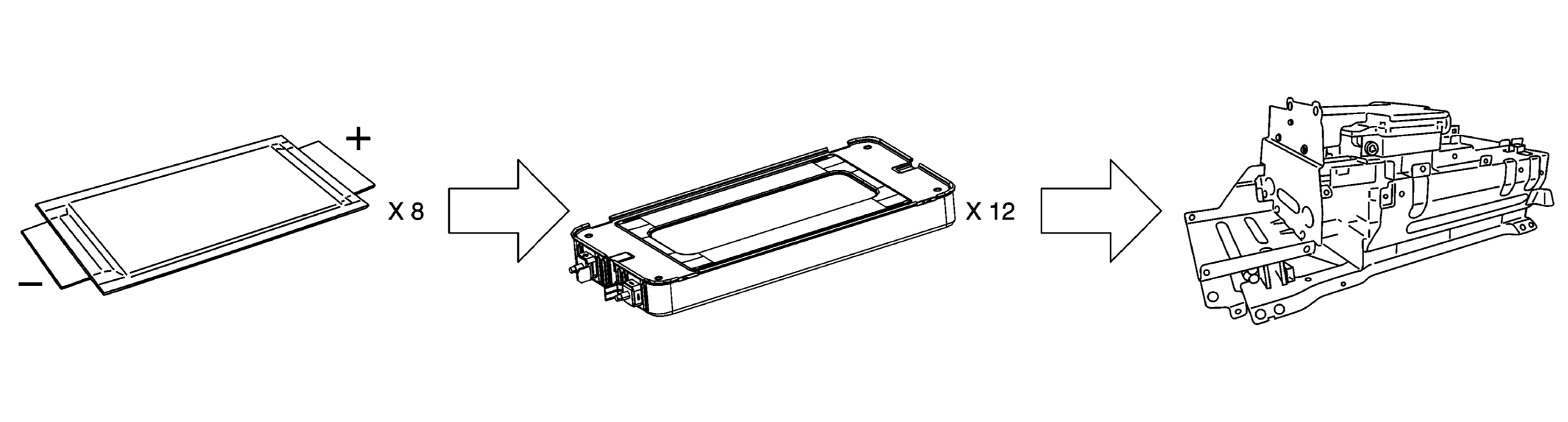

8 cells are connected in series to create one module. 12 of these modules are arranged in series to compose the battery pack.

Fig 2: Identifying Battery Pack
Courtesy of NISSAN NORTH AMERICA, INC.
