Trip Computer

Energy Monitor

The combination meter displays "energy monitor" on the vehicle information display, according to the following signal. The "energy monitor" displayed on the vehicle information display is the simplified version of the information shown on the audio, visual & navigation system display.

Signal name	Signal path
Ignition signal	-
Energy monitor signal	HPCM (CAN) → Combination meter

Li-ion Battery State of Charge

The combination meter displays "li-ion battery state of charge" on the vehicle information display, according to the following signals.

Signal name	Signal path
Ignition signal	-
Li-ion battery state of charge signal	HPCM (CAN) → Combination meter

Acceleration Guide

The combination meter displays "acceleration guide" on the vehicle information display, according to the following signals. For further information, refer to "INFINITI DRIVE MODE SELECTOR: SYSTEM DESCRIPTION ".

Signal name	Signal path
Ignition signal	-
Acceleration guide signal	HPCM (CAN) → Combination meter

EV Mode Odometer and Twin Trip Odometer

The combination meter calculates distance traveled, according to the following signals and displays "EV mode odometer and twin trip odometer" on the vehicle information display.

Signal name	Signal path
Ignition signal	-
EV indicator lamp signal	HPCM (CAN) → Combination meter
Vehicle speed signal	ABS actuator and electric unit (control unit) (CAN) → Combination meter

Current Fuel Consumption

The combination meter calculates current fuel consumption based on the following signals, and the calculated value is displayed on the information display.

Signal name	Signal path
Ignition signal	-
Fuel consumption monitor signal	HPCM (CAN) → Combination meter
Vehicle speed signal	ABS actuator and electric unit (control unit) (CAN) → Combination meter

NOTE:

Current fuel consumption on the information display is updated approximately every 0.1 seconds.
Current fuel consumption on the information display shows 0 l/100km (0 mpg) when vehicle speed is 0 km/h (0 MPH).

Average Fuel Consumption

The combination meter calculates average fuel consumption based on the following signals, and the calculated value is displayed on the information display.

Signal name	Signal path
Ignition signal	-
Fuel consumption monitor signal	HPCM (CAN) → Combination meter
Vehicle speed signal	ABS actuator and electric unit (control unit) (CAN) → Combination meter

NOTE:

Average fuel consumption on the information display is updated approximately every 30 seconds.
Soon after a reset or when the ignition switch is turned ON right after battery removal and installation, "--" is displayed until after a travel of 30 seconds and approximately 500 m (0.31 mile).

Average Vehicle Speed

The combination meter calculates average vehicle speed based on the following signals, and the calculated value is displayed on the information display.

Signal name	Signal path
Ignition signal	-
Vehicle speed signal	ABS actuator and electric unit (control unit) (CAN) → Combination meter

NOTE:

Average vehicle speed on the information display is updated approximately every 30 seconds.
Soon after a reset or when the ignition switch is turned ON right after battery removal and installation, "--" is displayed until after a 30 seconds.

Travel Time

The combination meter measures and displays travel time (ignition switch ON time).

Travel Distance

The combination meter calculates mileage, based on the following signals and displays the mileage on the information display.

Signal name	Signal path
Ignition signal	-
Vehicle speed signal	ABS actuator and electric unit (control unit) (CAN) → Combination meter

Distance to Empty

The combination meter calculates distance to empty based on the following signals, and the calculated value is displayed on the information display.

Signal name	Signal path
Ignition signal	-
Fuel level sensor signal	Fuel level sensor unit ==> Combination meter
Fuel consumption monitor signal	HPCM (CAN) → Combination meter
Vehicle speed signal	ABS actuator and electric unit (control unit) (CAN) → Combination meter

NOTE:

Distance to empty on the information display is updated approximately every 30 seconds.
When the ignition switch is turned from OFF to ON, "--" is displayed until after a travel of approximately 500 m (0.31 mile).
The indicated values may not match each other when refueling with the ignition switch ON.

Engine Coolant Temperature Gauge

The combination meter displays "engine coolant temperature gauge" on the vehicle information display, according to the following signals.

Signal name	Signal path
Ignition signal	-
Engine coolant temperature signal	ECM (CAN) → HPCM (CAN) → Combination meter

The number of segments displayed by the engine coolant temperature gauge differs depending on whether engine coolant temperature is on the increase or decrease. For the relationship between the number of lighting segments and engine coolant temperature, refer to the following charts.

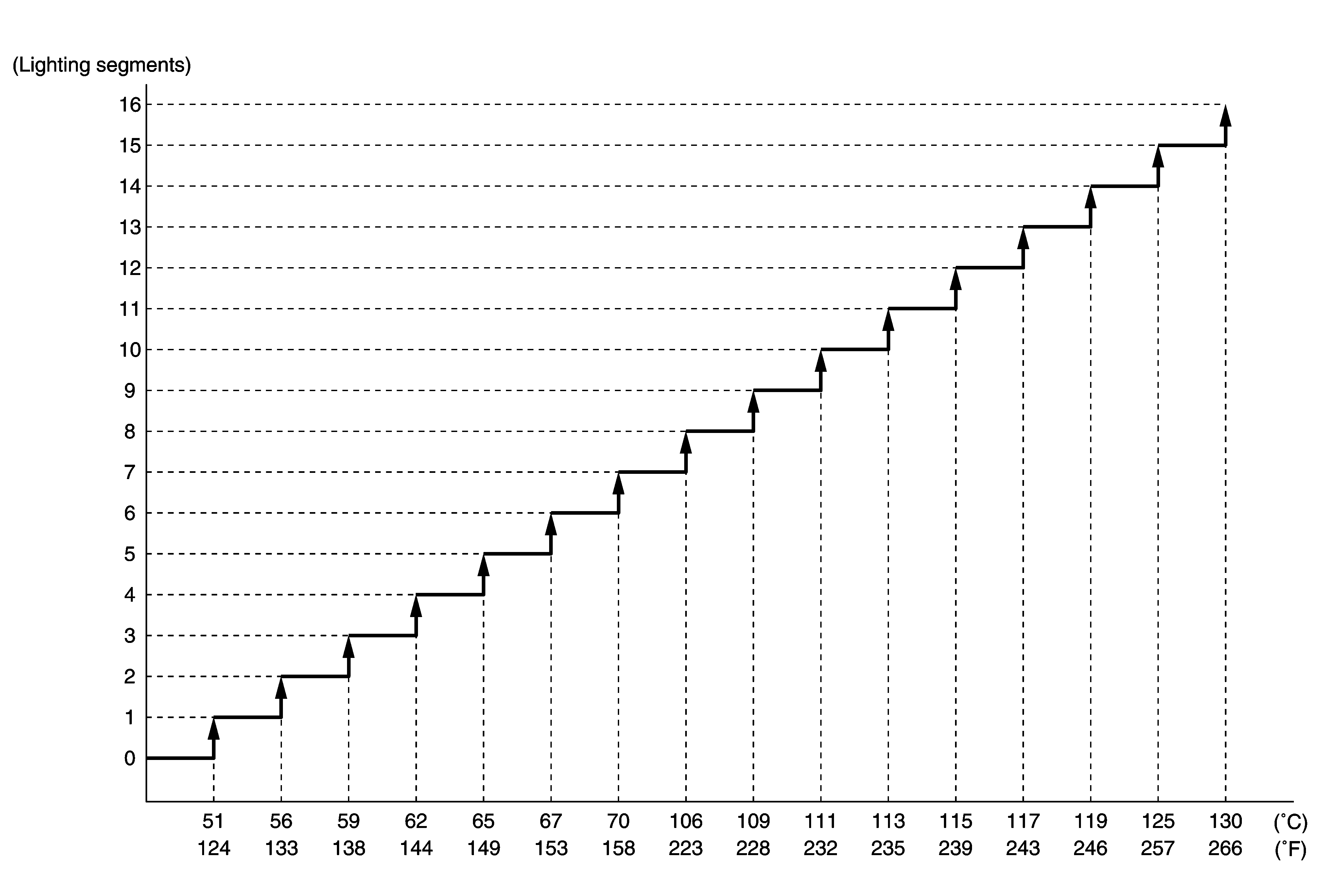

Fig 1: Segment Lighting Under Increasing Engine Coolant Temperature Graph
Courtesy of NISSAN NORTH AMERICA, INC.

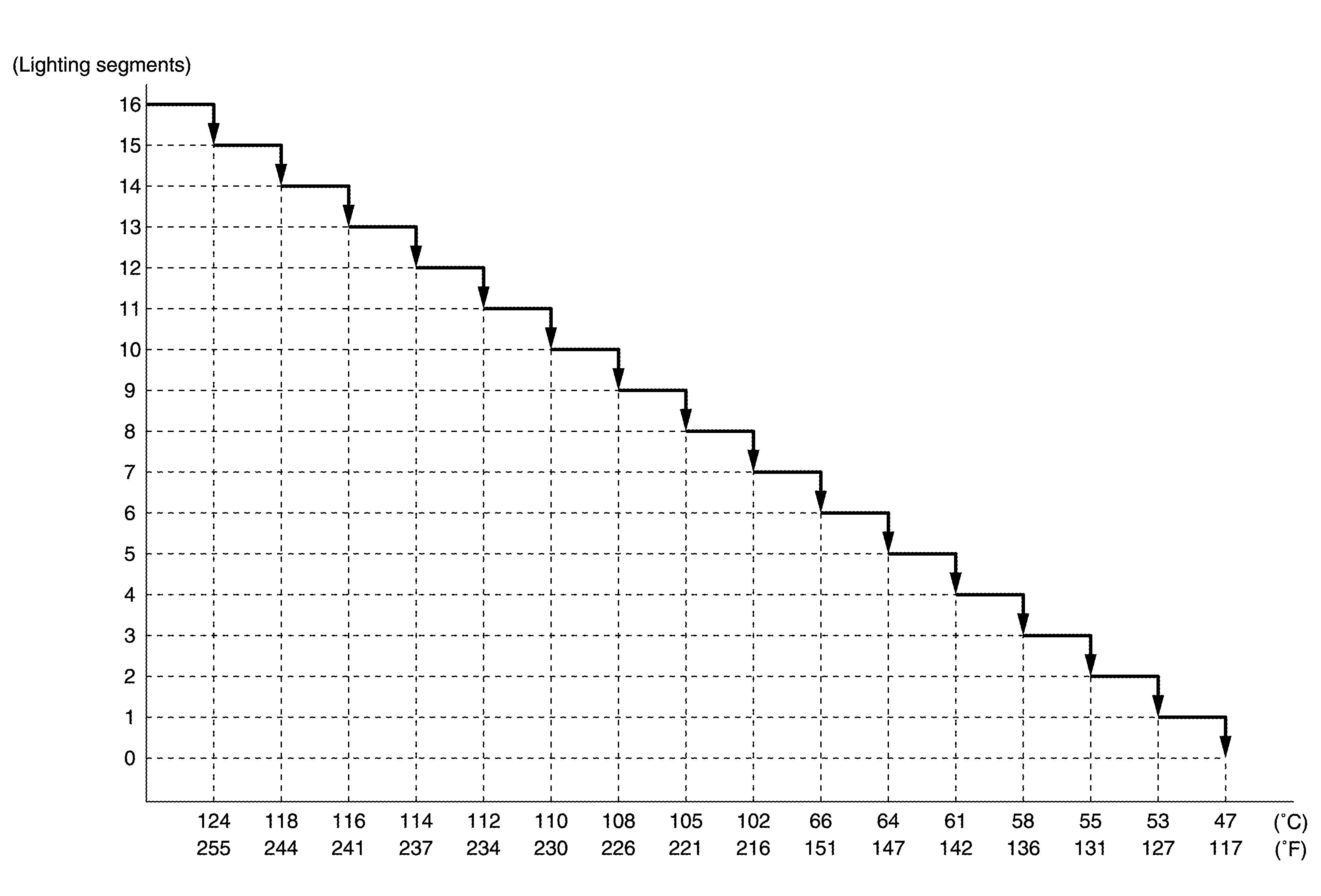

Fig 2: Segment Lighting Under Decreasing Engine Coolant Temperature Graph
Courtesy of NISSAN NORTH AMERICA, INC.

Ambient Temperature

The combination meter calculates ambient temperature based on the following signals, and the calculated value is displayed on the information display.

Signal name	Signal path
Ignition signal	-
Ambient sensor signal	Ambient sensor ==> A/C auto amp. (CAN) → Combination meter
Vehicle speed signal	ABS actuator and electric unit (control unit) (CAN) → Combination meter

NOTE:

The indicated temperature is corrected based on an ignition signal, ambient temperature detected by the ambient sensor, and vehicle speed signal. The indicated temperature is not raised under vehicle speed less than 20 km/h (12 MPH).
The ambient sensor input value that is displayed on "Data Monitor" of CONSULT is the value before the correction. It may not match the indicated temperature on the information display.
Depending on engine heat or heat on the road surfaces, an ambient temperature may be indicated higher than actual one.
