Front Door Glass
>>
Exploded View
Exploded View

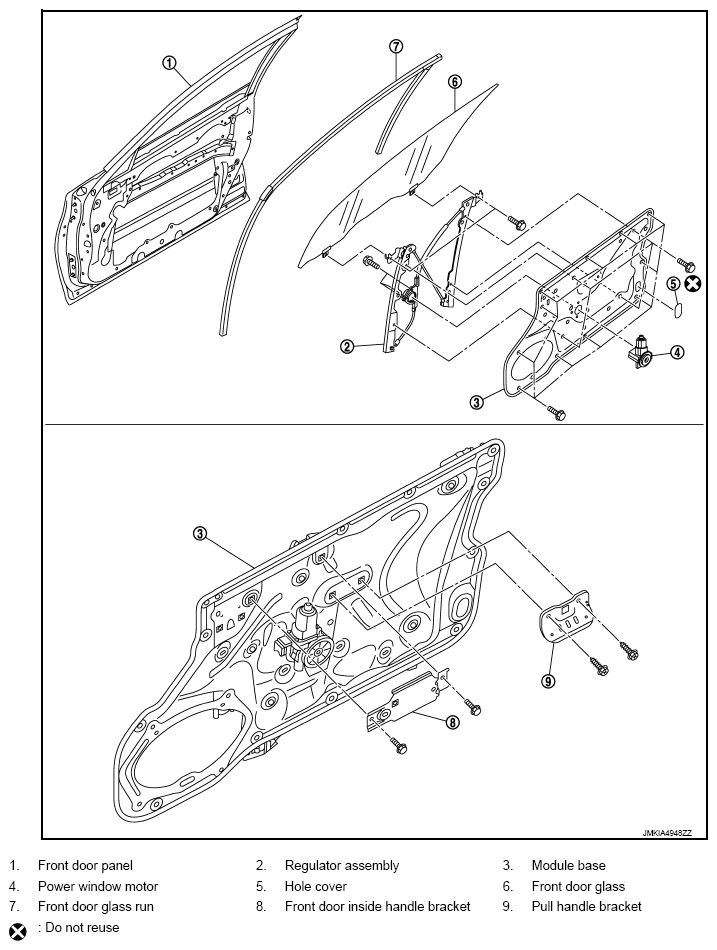

Fig 1: Exploded View Of Front Door Glass With Mounting Bolts
Courtesy of NISSAN NORTH AMERICA, INC.
