SEAT SYNCHRONIZATION FUNCTION: System Diagram

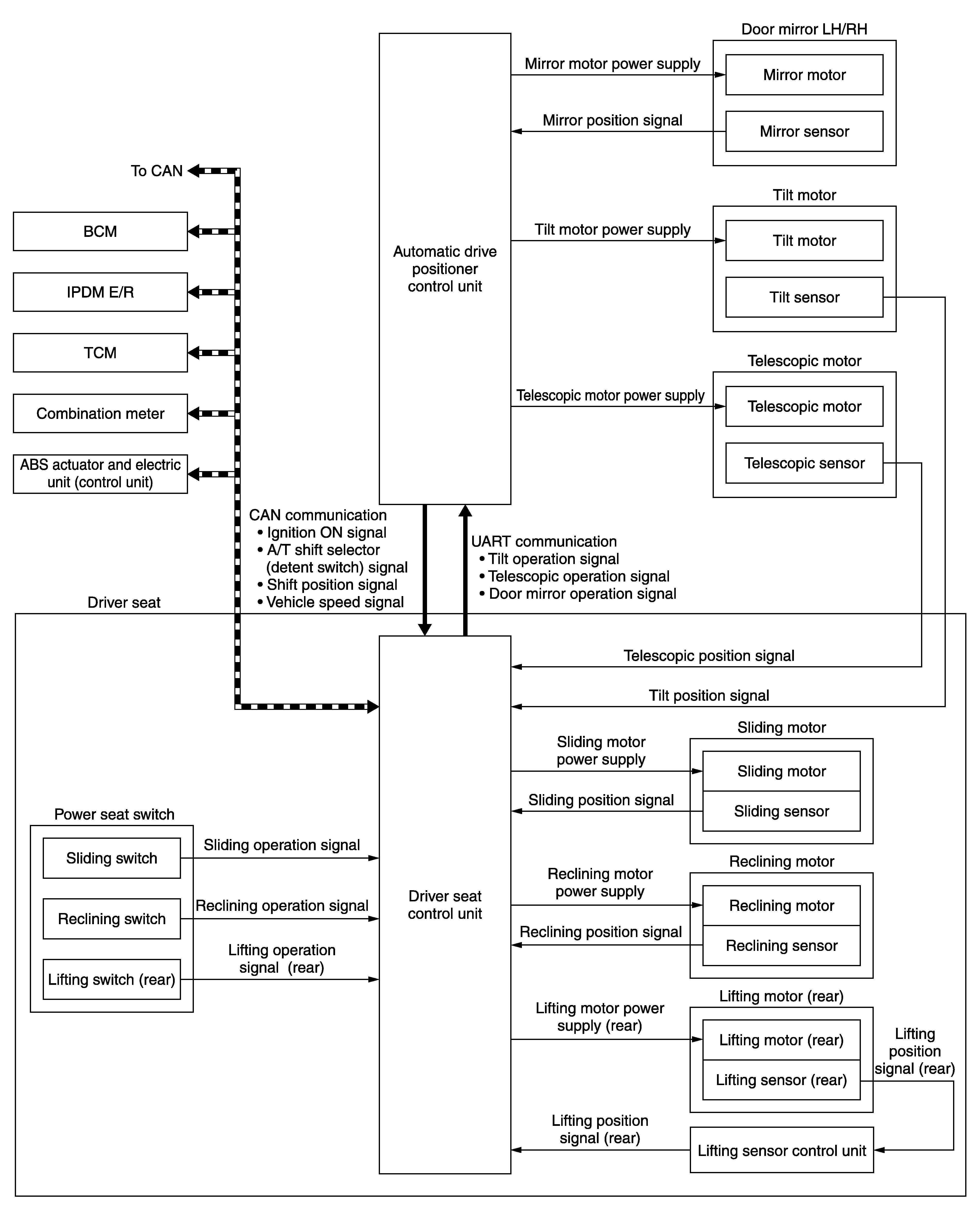

Fig 1: Seat Synchronization Function System Diagram

G07020852

Courtesy of NISSAN NORTH AMERICA, INC.
