Home >> Infiniti >> 2012 >> M35h >> Repair and Diagnosis >> Body & Frame >> Mirrors >> System Description >> System >> Door Mirror System >> DOOR MIRROR SYSTEM: System Diagram

DOOR MIRROR SYSTEM: System Diagram

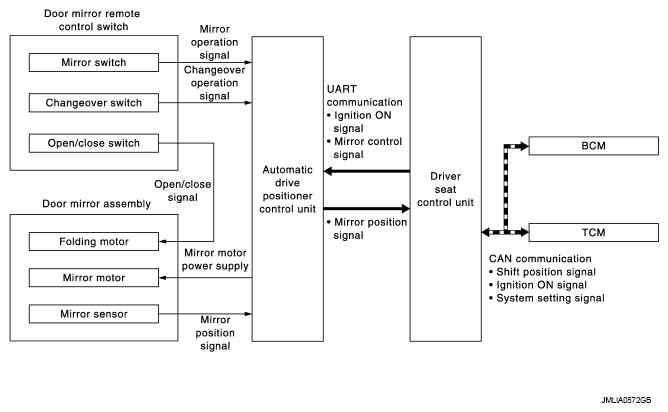

Fig 1: Door Mirror - System Diagram

G07022018

Courtesy of NISSAN NORTH AMERICA, INC.
