Display And Warning Lamp

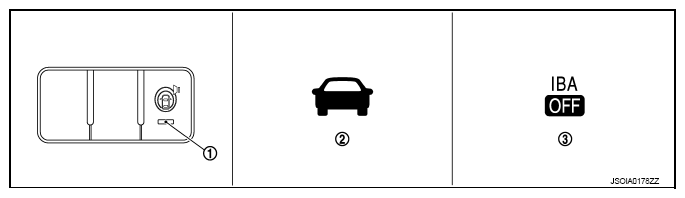

Fig 1: Identifying IBA Off Indicator Lamp, Warning Systems On And Vehicle Ahead Detection Indicator

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Display item	Description
1	Warning systems ON indicator	Indicates that the FCW system, LDW system, and/or BSW system is ON. Blinks when the setting of LDW, FCW, and BSW are "OFF" and the warning systems switch is pressed.
2	Vehicle ahead detection indicator	Vehicle ahead detection indicator blinks when the FCW system is activated
3	IBA OFF indicator lamp	IBA OFF indicator lamp turns ON when: FCW system has a malfunction ICC sensor window is too dirty to detect a vehicle ahead Subjected to a strong light (e.g. sunlight) NOTE: Shared with IBA system
