Module Charge Balance: Description: Notes

If a malfunction, such as abnormal voltage, occurs in a Li-ion battery cell, replace the module including a malfunctioning cell.

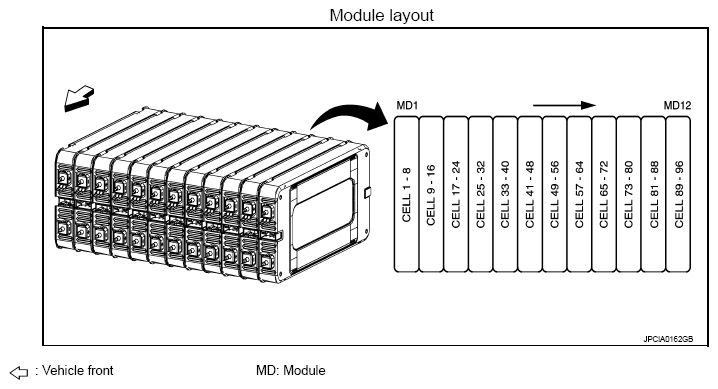

Fig 1: Identifying Li-ion Battery Module Layout
Courtesy of NISSAN NORTH AMERICA, INC.
To replace module, select the minimum module voltage among normal modules as an adjustment voltage and adjust all 12 modules to the adjustment voltage.
