Exploded View

CAUTION: To prevent malfunction, always perform the laser beam aiming adjustment and check the operation after the replacement, removal and installation of ICC sensor.

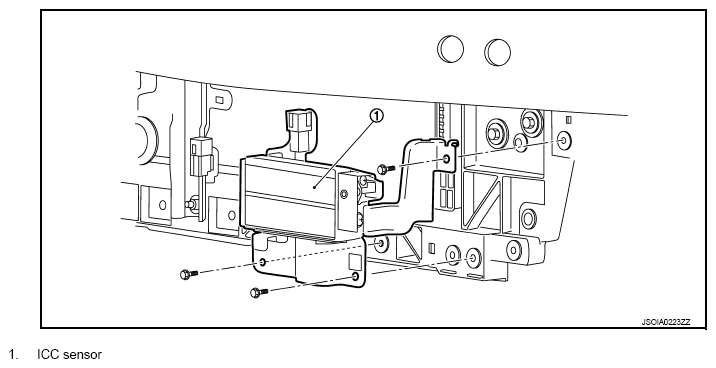

Fig 1: Identifying ICC Sensor
G08249710Courtesy of NISSAN NORTH AMERICA, INC.
