Engine Control System - Introduction (2 Of 2) (Sedan)
>>
Symptom Diagnosis
>>
Engine Control System Symptoms
>>
Symptom Table
>>
System - Basic Engine Control System
System - Basic Engine Control System

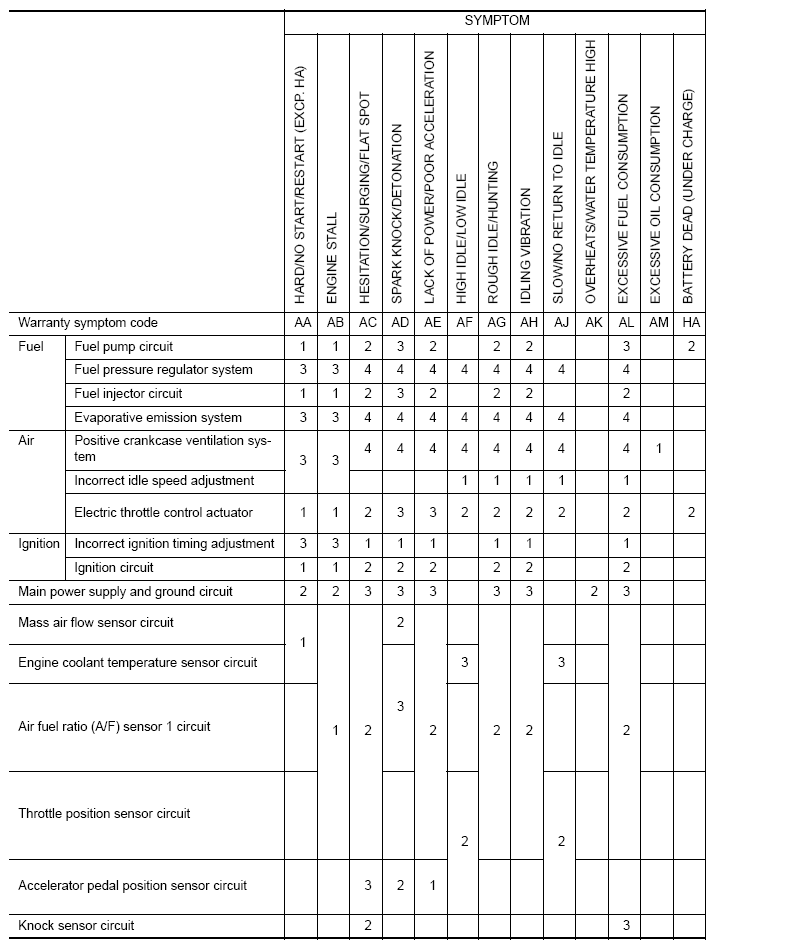

Fig 1: Engine Control System Symptoms Chart (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

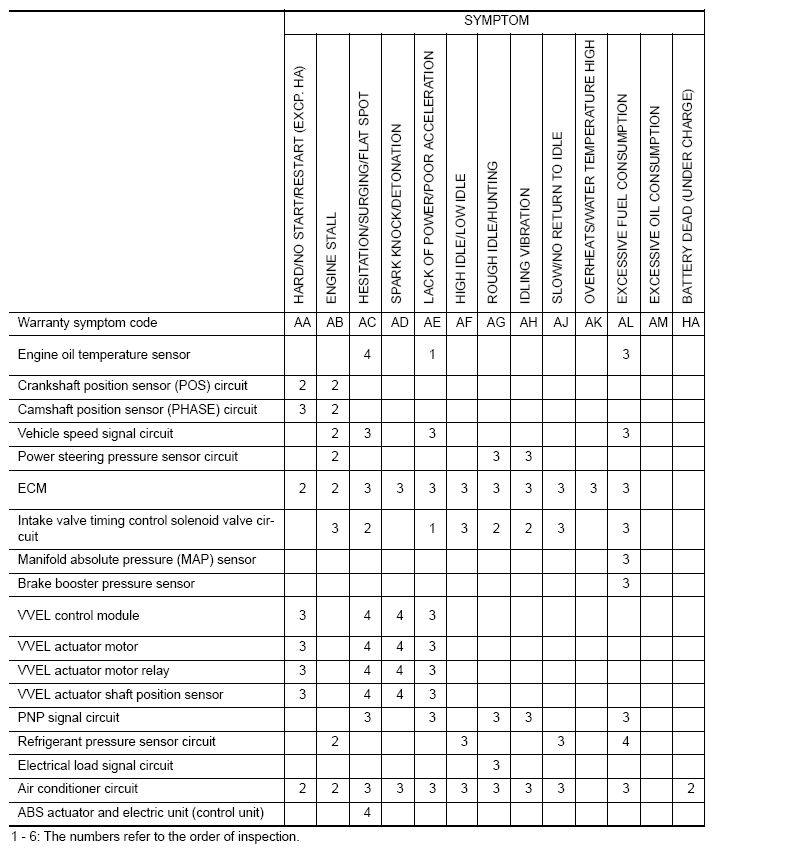

Fig 2: Engine Control System Symptoms Chart (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
