Component Parts Location

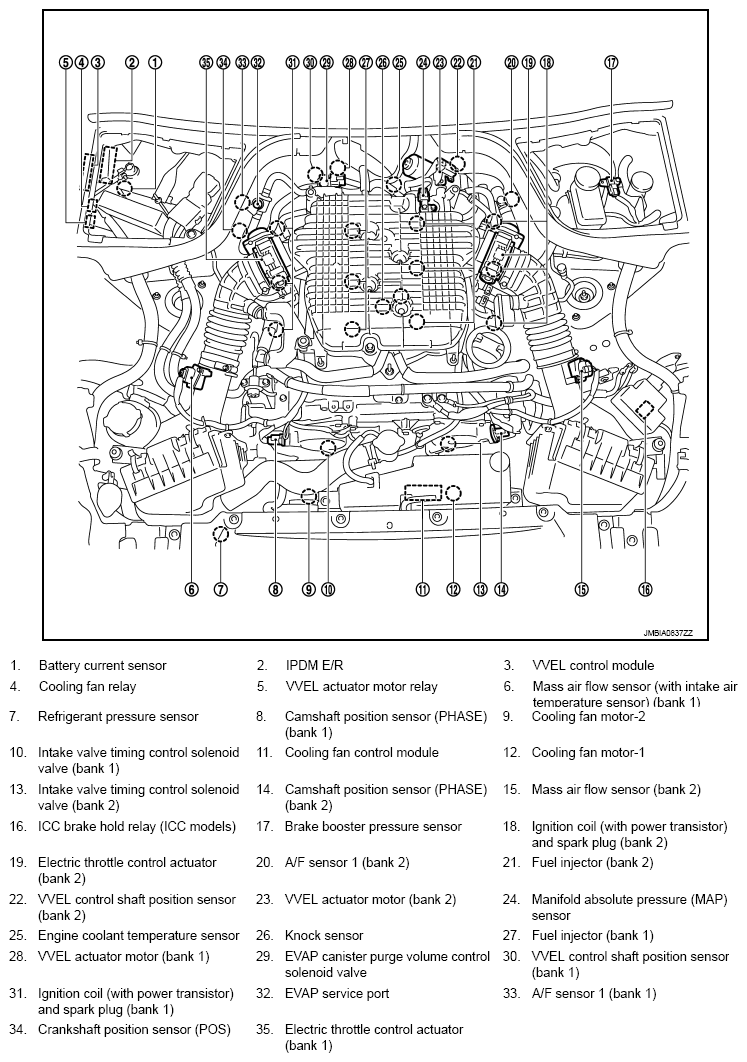

Fig 1: Engine Control System Component Parts Location (1 Of 22)

G08451960

Courtesy of NISSAN NORTH AMERICA, INC.

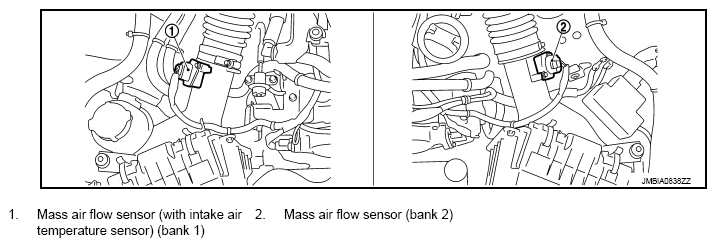

Fig 2: Engine Control System Component Parts Location (2 Of 22)

G08451961

Courtesy of NISSAN NORTH AMERICA, INC.

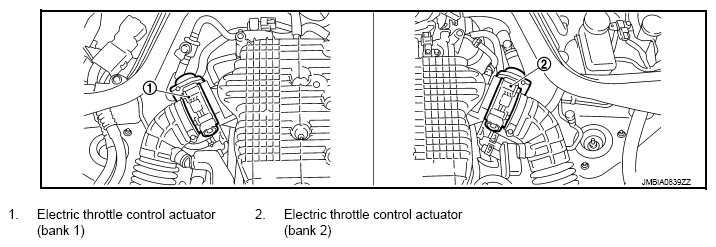

Fig 3: Engine Control System Component Parts Location (3 Of 22)

G08451962

Courtesy of NISSAN NORTH AMERICA, INC.

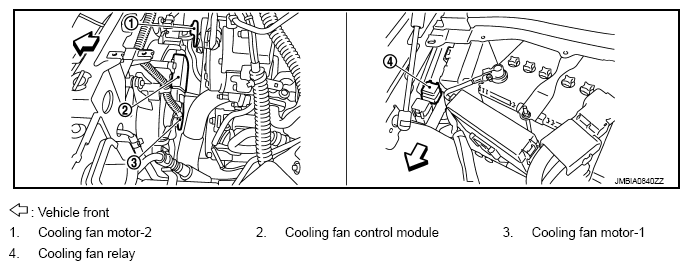

Fig 4: Engine Control System Component Parts Location (4 Of 22)

G08451963

Courtesy of NISSAN NORTH AMERICA, INC.

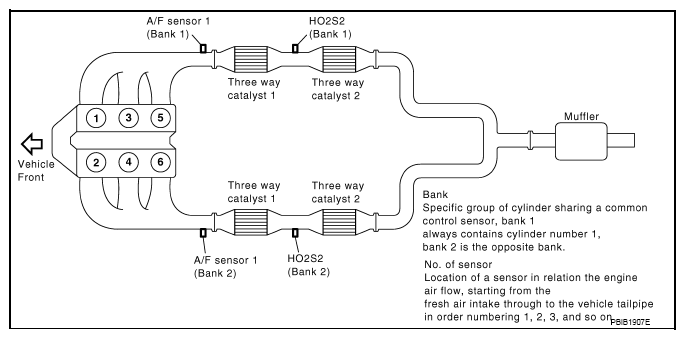

Fig 5: Engine Control System Component Parts Location (5 Of 22)

G08451964

Courtesy of NISSAN NORTH AMERICA, INC.

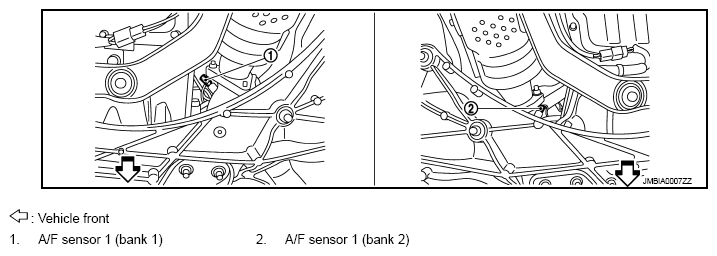

Fig 6: Engine Control System Component Parts Location (6 Of 22)

G08451965

Courtesy of NISSAN NORTH AMERICA, INC.

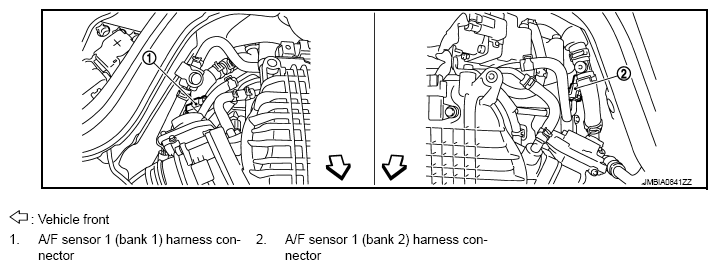

Fig 7: Engine Control System Component Parts Location (7 Of 22)

G08451966

Courtesy of NISSAN NORTH AMERICA, INC.

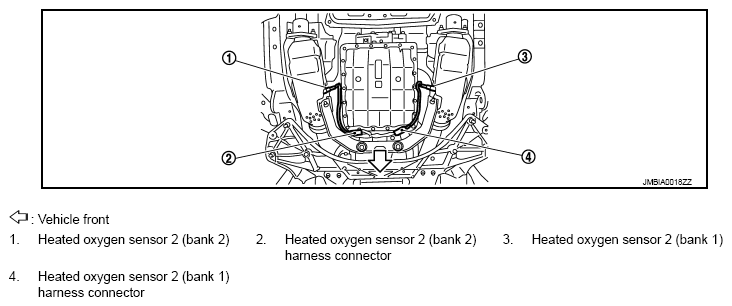

Fig 8: Engine Control System Component Parts Location (8 Of 22)

G08451967

Courtesy of NISSAN NORTH AMERICA, INC.

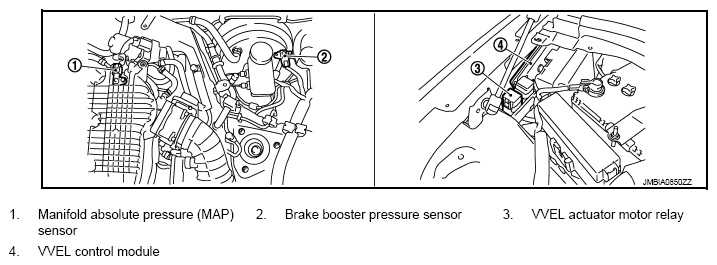

Fig 9: Engine Control System Component Parts Location (9 Of 22)

G08451968

Courtesy of NISSAN NORTH AMERICA, INC.

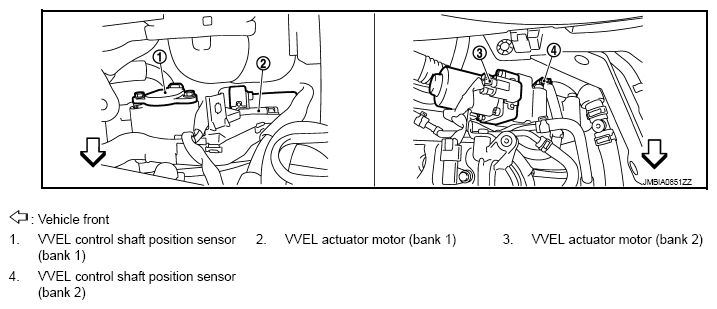

Fig 10: Engine Control System Component Parts Location (10 Of 22)

G08451969

Courtesy of NISSAN NORTH AMERICA, INC.

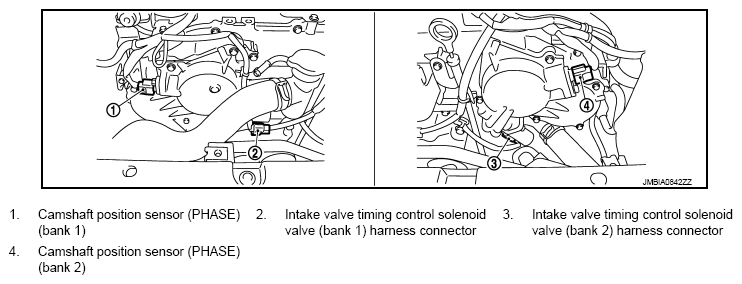

Fig 11: Engine Control System Component Parts Location (11 Of 22)

G08451970

Courtesy of NISSAN NORTH AMERICA, INC.

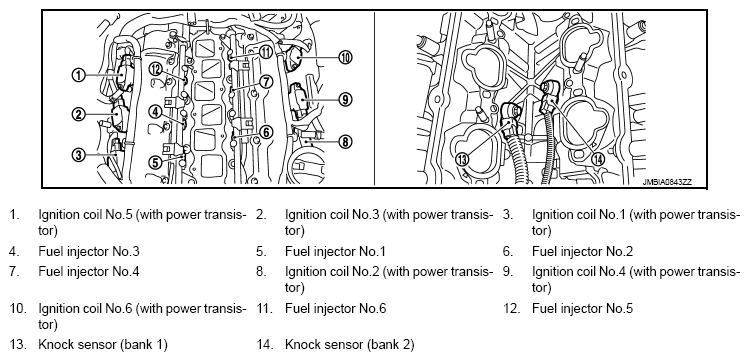

Fig 12: Engine Control System Component Parts Location (12 Of 22)

G08451971

Courtesy of NISSAN NORTH AMERICA, INC.

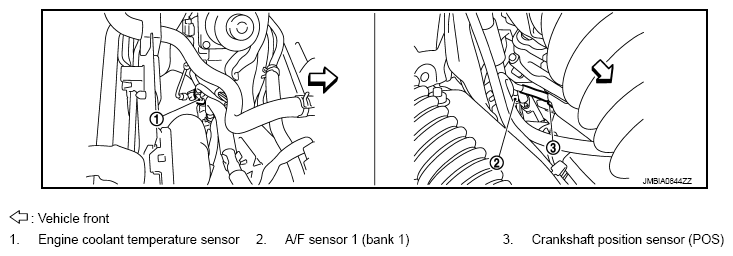

Fig 13: Engine Control System Component Parts Location (13 Of 22)

G08451972

Courtesy of NISSAN NORTH AMERICA, INC.

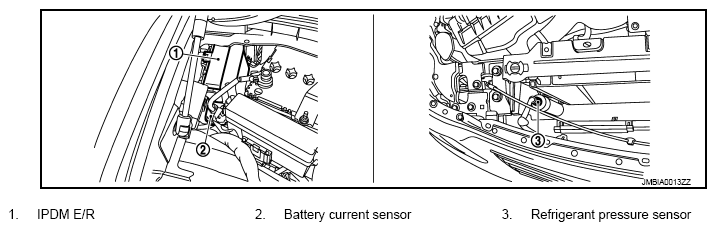

Fig 14: Engine Control System Component Parts Location (14 Of 22)

G08451973

Courtesy of NISSAN NORTH AMERICA, INC.

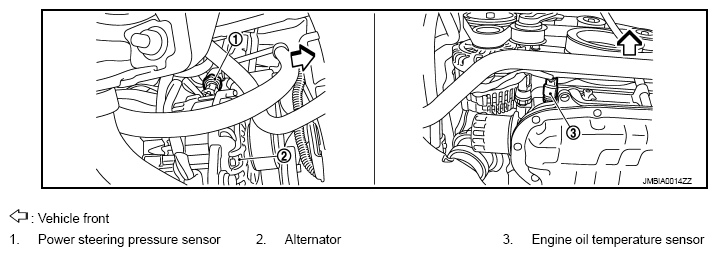

Fig 15: Engine Control System Component Parts Location (15 Of 22)

G08451974

Courtesy of NISSAN NORTH AMERICA, INC.

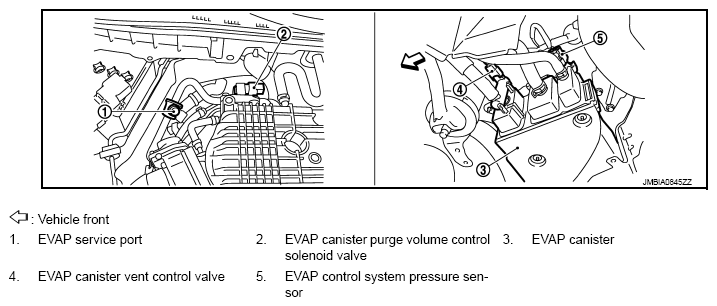

Fig 16: Engine Control System Component Parts Location (16 Of 22)

G08451975

Courtesy of NISSAN NORTH AMERICA, INC.

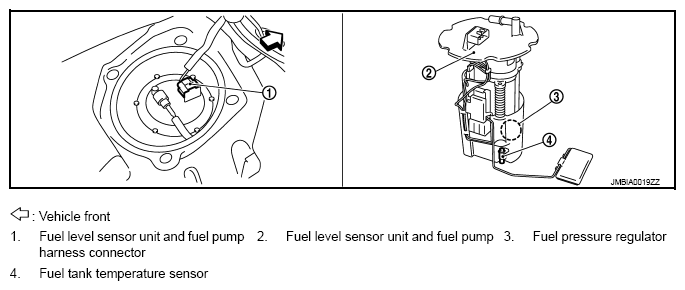

Fig 17: Engine Control System Component Parts Location (17 Of 22)

G08451976

Courtesy of NISSAN NORTH AMERICA, INC.

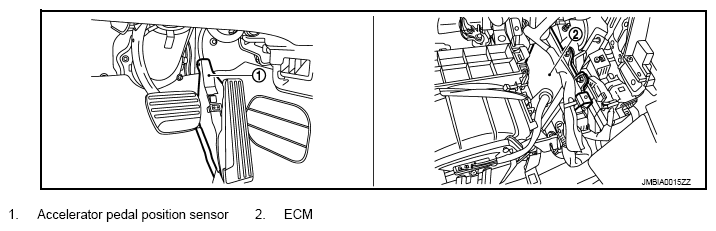

Fig 18: Engine Control System Component Parts Location (18 Of 22)

G08451977

Courtesy of NISSAN NORTH AMERICA, INC.

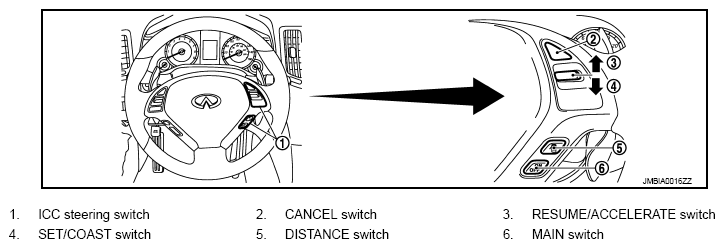

Fig 19: Engine Control System Component Parts Location (19 Of 22)

G08451978

Courtesy of NISSAN NORTH AMERICA, INC.

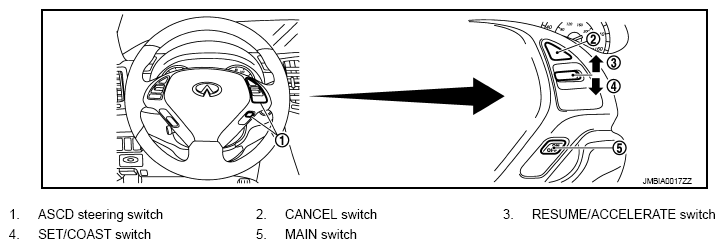

Fig 20: Engine Control System Component Parts Location (20 Of 22)

G08451979

Courtesy of NISSAN NORTH AMERICA, INC.

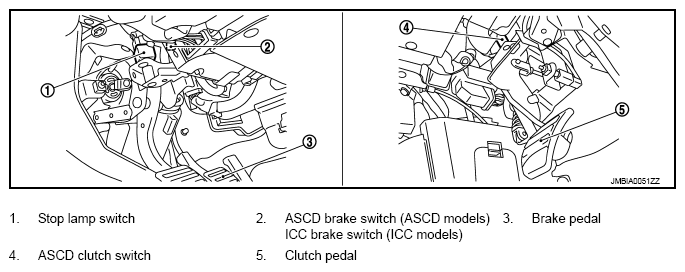

Fig 21: Engine Control System Component Parts Location (21 Of 22)

G08451980

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 22: Engine Control System Component Parts Location (22 Of 22)

G08451981

Courtesy of NISSAN NORTH AMERICA, INC.
