Component Parts Location

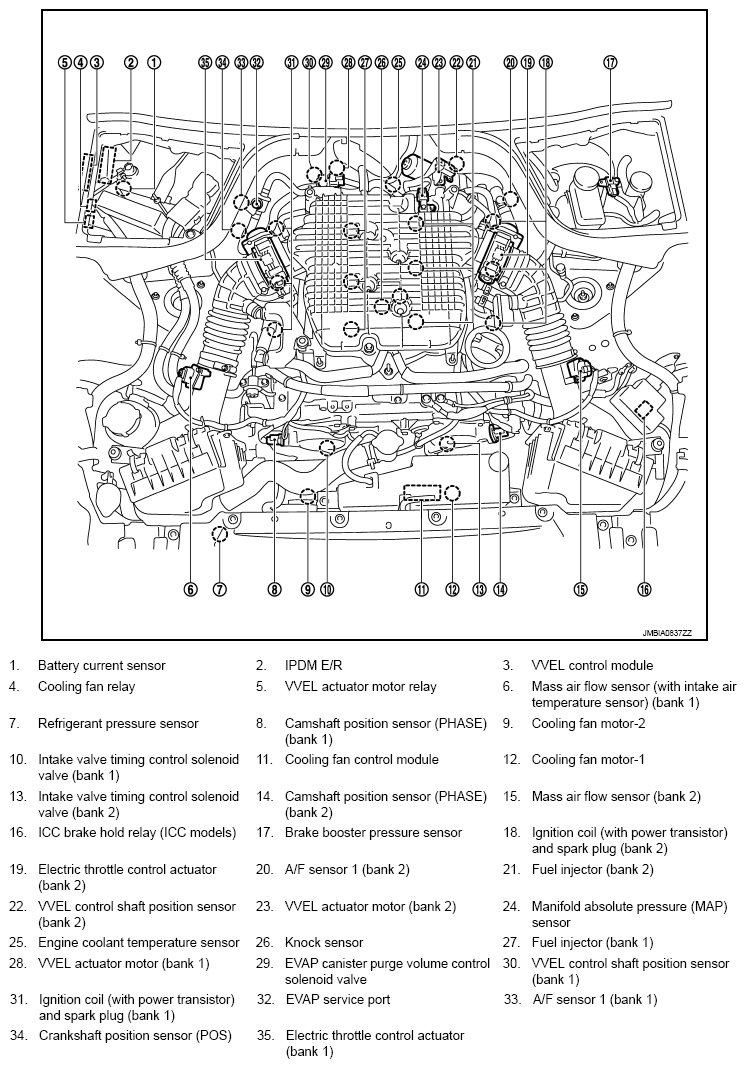

Fig 1: Automatic Speed Control Device System Component Parts Location (1 Of 22)

G08452054

Courtesy of NISSAN NORTH AMERICA, INC.

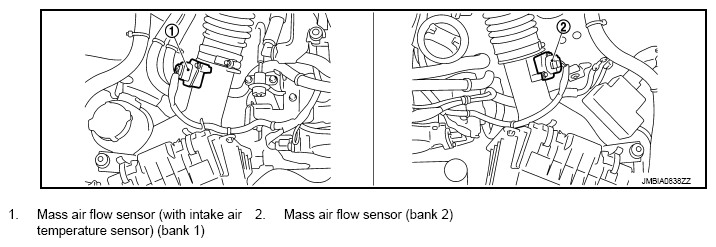

Fig 2: Automatic Speed Control Device System Component Parts Location (2 Of 22)

G08452055

Courtesy of NISSAN NORTH AMERICA, INC.

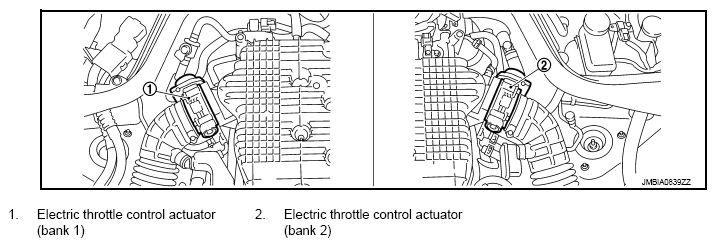

Fig 3: Automatic Speed Control Device System Component Parts Location (3 Of 22)

G08452056

Courtesy of NISSAN NORTH AMERICA, INC.

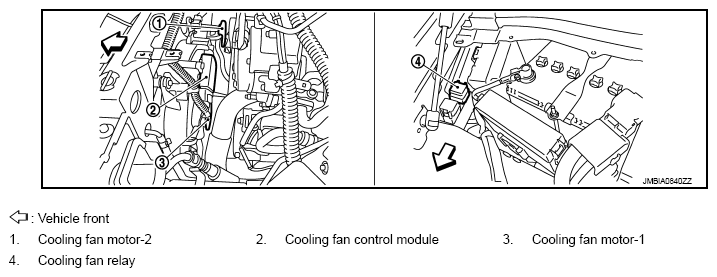

Fig 4: Automatic Speed Control Device System Component Parts Location (4 Of 22)

G08452057

Courtesy of NISSAN NORTH AMERICA, INC.

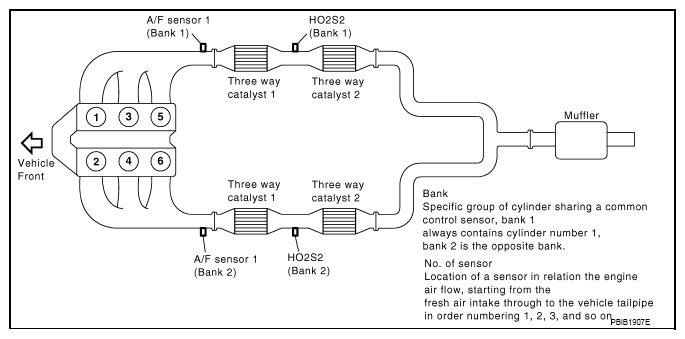

Fig 5: Automatic Speed Control Device System Component Parts Location (5 Of 22)

G08452058

Courtesy of NISSAN NORTH AMERICA, INC.

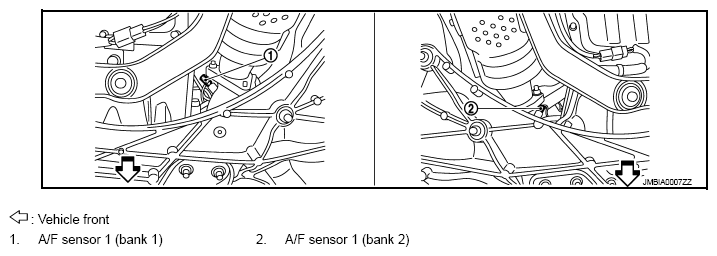

Fig 6: Automatic Speed Control Device System Component Parts Location (6 Of 22)

G08452059

Courtesy of NISSAN NORTH AMERICA, INC.

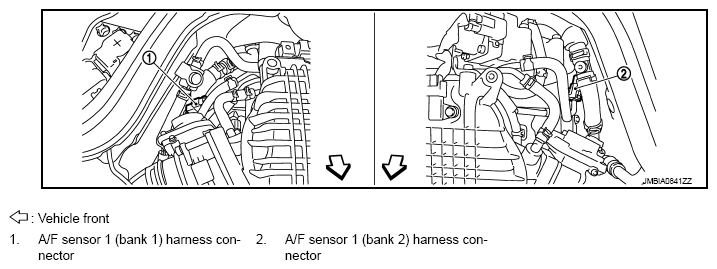

Fig 7: Automatic Speed Control Device System Component Parts Location (7 Of 22)

G08452060

Courtesy of NISSAN NORTH AMERICA, INC.

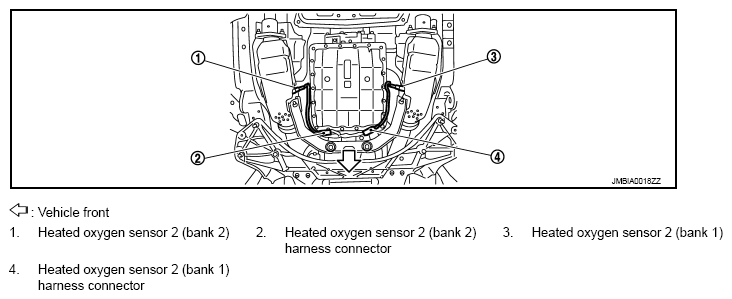

Fig 8: Automatic Speed Control Device System Component Parts Location (8 Of 22)

G08452061

Courtesy of NISSAN NORTH AMERICA, INC.

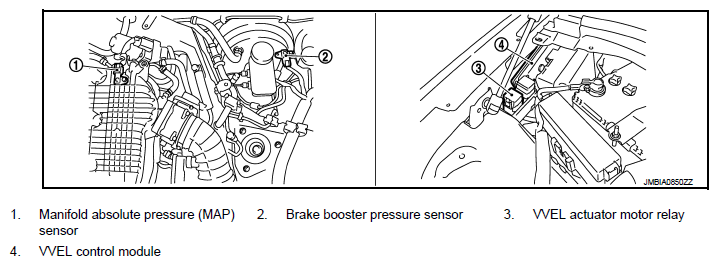

Fig 9: Automatic Speed Control Device System Component Parts Location (9 Of 22)

G08452062

Courtesy of NISSAN NORTH AMERICA, INC.

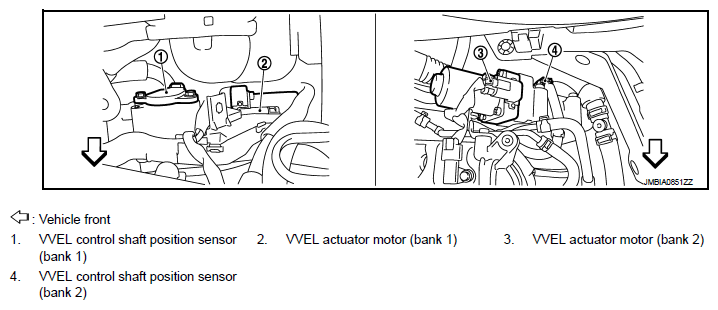

Fig 10: Automatic Speed Control Device System Component Parts Location (10 Of 22)

G08452063

Courtesy of NISSAN NORTH AMERICA, INC.

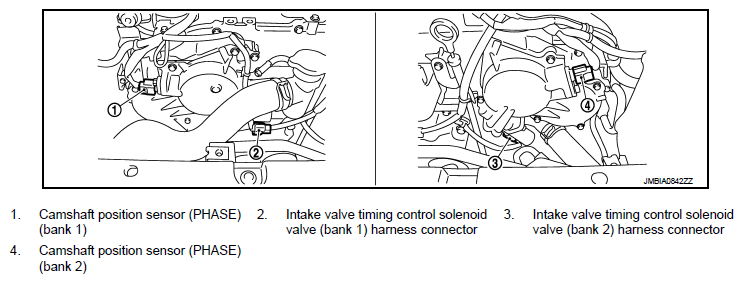

Fig 11: Automatic Speed Control Device System Component Parts Location (11 Of 22)

G08452064

Courtesy of NISSAN NORTH AMERICA, INC.

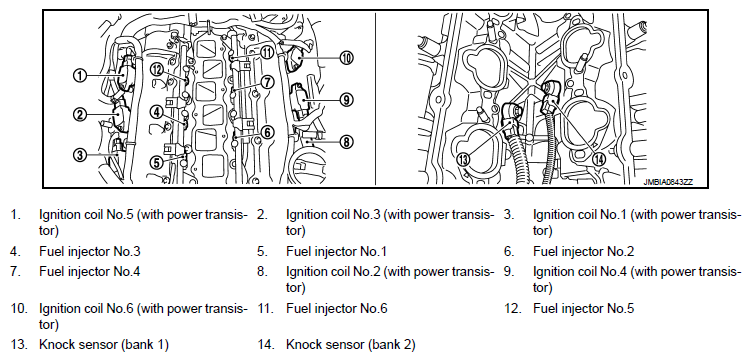

Fig 12: Automatic Speed Control Device System Component Parts Location (12 Of 22)

G08452065

Courtesy of NISSAN NORTH AMERICA, INC.

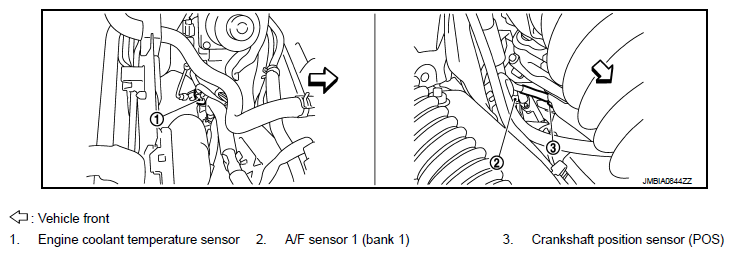

Fig 13: Automatic Speed Control Device System Component Parts Location (13 Of 22)

G08452066

Courtesy of NISSAN NORTH AMERICA, INC.

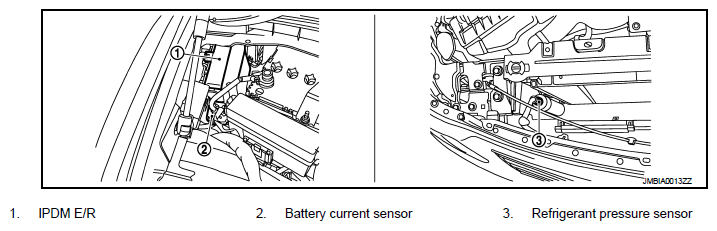

Fig 14: Automatic Speed Control Device System Component Parts Location (14 Of 22)

G08452067

Courtesy of NISSAN NORTH AMERICA, INC.

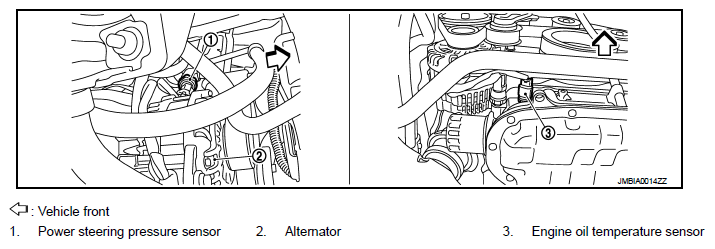

Fig 15: Automatic Speed Control Device System Component Parts Location (15 Of 22)

G08452068

Courtesy of NISSAN NORTH AMERICA, INC.

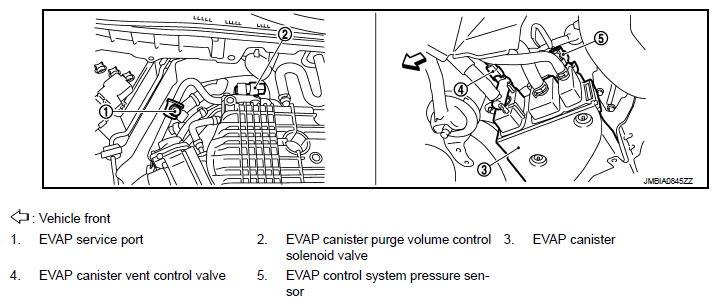

Fig 16: Automatic Speed Control Device System Component Parts Location (16 Of 22)

G08452069

Courtesy of NISSAN NORTH AMERICA, INC.

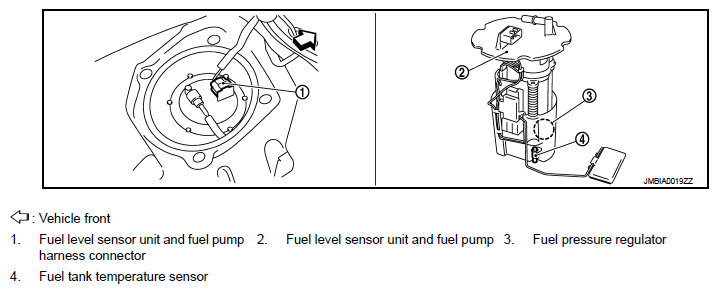

Fig 17: Automatic Speed Control Device System Component Parts Location (17 Of 22)

G08452070

Courtesy of NISSAN NORTH AMERICA, INC.

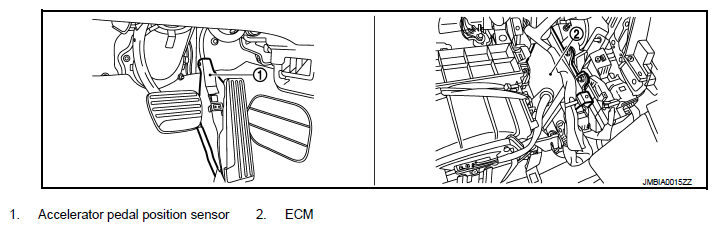

Fig 18: Automatic Speed Control Device System Component Parts Location (18 Of 22)

G08452071

Courtesy of NISSAN NORTH AMERICA, INC.

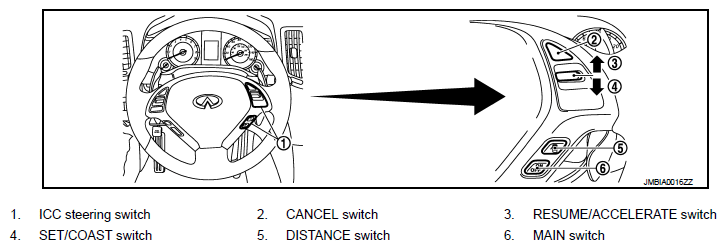

Fig 19: Automatic Speed Control Device System Component Parts Location (19 Of 22)

G08452072

Courtesy of NISSAN NORTH AMERICA, INC.

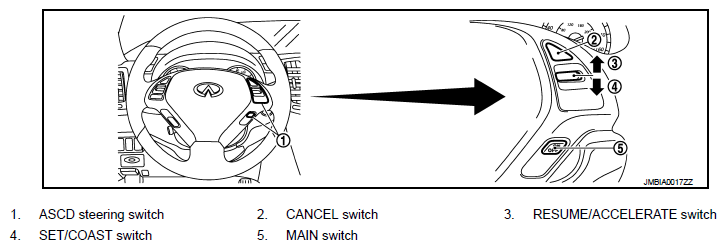

Fig 20: Automatic Speed Control Device System Component Parts Location (20 Of 22)

G08452073

Courtesy of NISSAN NORTH AMERICA, INC.

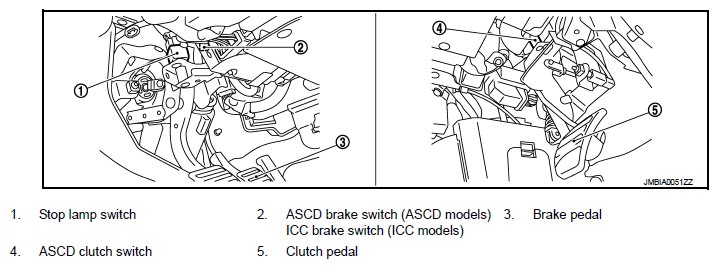

Fig 21: Automatic Speed Control Device System Component Parts Location (21 Of 22)

G08452074

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 22: Automatic Speed Control Device System Component Parts Location (22 Of 22)

G08452075

Courtesy of NISSAN NORTH AMERICA, INC.
