When Control Is Stopped
WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.

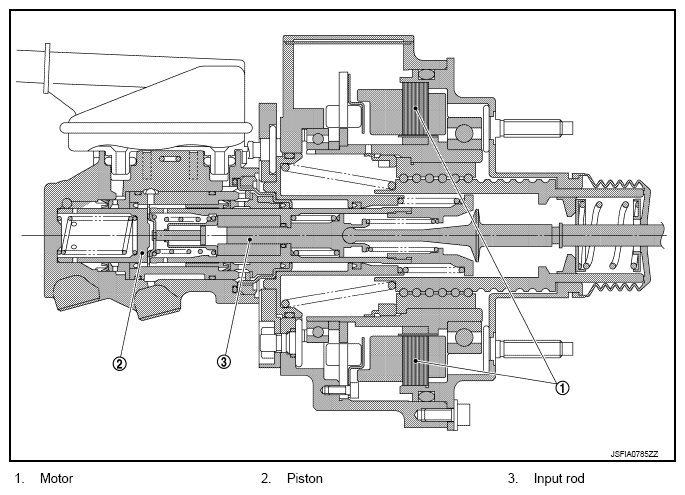

The input rod crosses the cooperative regenerative brake control gap and contacts the master cylinder piston, generating fluid pressure. There is no boost force (assist force), and the braking force is determined by the force pressing on the brake pedal.
