Exploded View

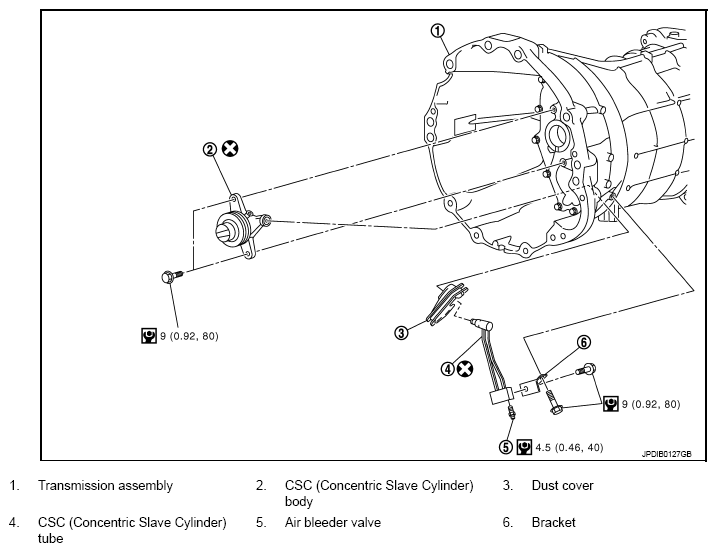

Fig 1: Exploded View Of Concentric Slave Cylinder With Torque Specifications

G08237603

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for the symbols in the figure.
