Exploded View

WARNING: This page is about a different variant/trim than selected.

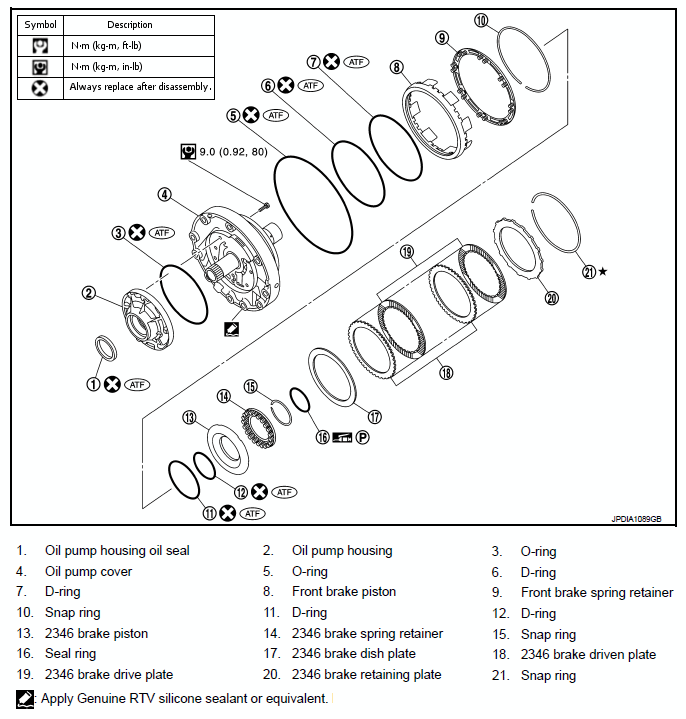

Fig 1: Exploded View Of Oil Pump, 2346 Brake & Front Brake Piston With Torque Specifications
G08452852Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
