Exploded View

WARNING: This page is about a different variant/trim than selected.

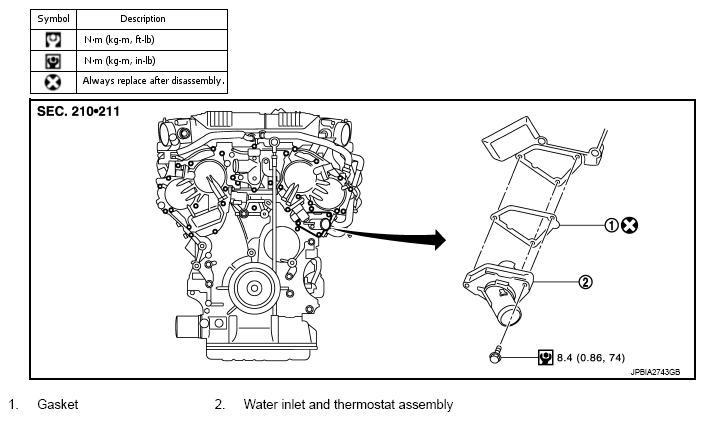

Fig 1: Water Inlet And Thermostat Assembly And Gasket With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to COMPONENTS for symbols in the figure.

NOTE: The above figure shows VQ37VHR.
