Exploded View

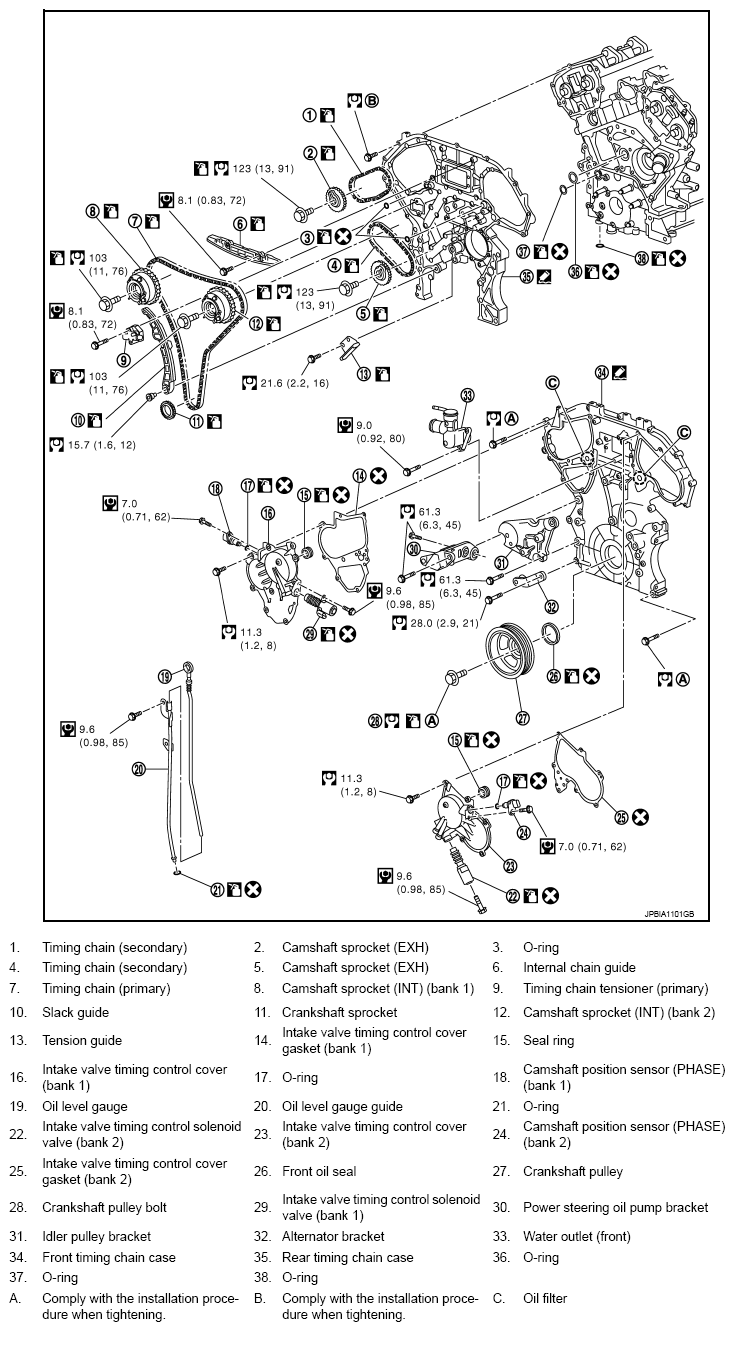

Fig 1: Exploded View Of Rear Timing Chain Case With Torque Specifications

G08232923

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbol marks in the figure.
