Disassembly and Assembly: Assembly

CAUTION: Do not reuse O-rings.

Install rear timing chain case as follows:
1. Install new O-rings (1) onto cylinder block.

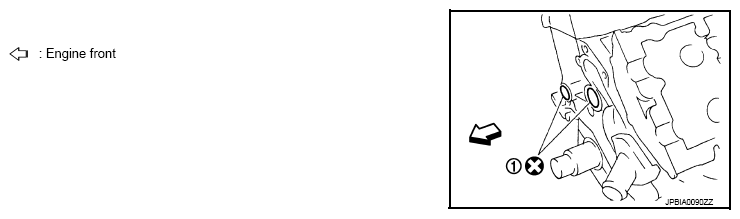

  Fig 1: Identifying Cylinder Block O-Rings
  Courtesy of NISSAN NORTH AMERICA, INC.

  CAUTION: Do not reuse O-rings.
2. Apply liquid gasket with the tube presser (commercial service tool) to rear timing chain case back side as shown in the figure.
  Use Genuine RTV Silicone Sealant or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".
  CAUTION:
  - For [A] in the figure, completely wipe off liquid gasket extended on a portion touching at engine coolant.
  - Apply liquid gasket on installation position of water pump and cylinder head completely.

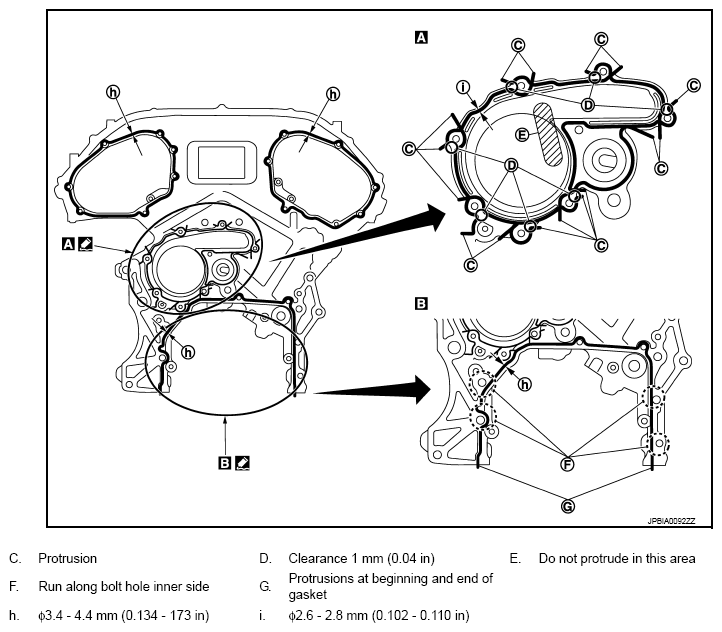

  Fig 2: Identifying Timing Chain Case Protrude Area
  Courtesy of NISSAN NORTH AMERICA, INC.

  Refer to "COMPONENTS " for symbol marks in the figure.
3. Align rear timing chain case with dowel pins (bank 1 and bank 2) on cylinder block and install rear timing chain case.
  - Check that O-rings stay in place during installation to cylinder block.
4. Tighten mounting bolts in numerical order as shown in the figure.
  - There are three types of mounting bolts. Refer to the following for Identifying bolts.
    Bolt length: Bolt position

    20 mm (0.79 in): 1, 2, 3, 6, 7, 8, 9, 10

    16 mm (0.63 in): 4, 5, 11, 12, 13

    Tightening Torque: 12.7 N.m (1.3 kg-m, 9 ft-lb)

    16 mm (0.63 in): Except the above

    Tightening Torque: 15.0 N.m (1.5 kg-m, 11 ft-lb)

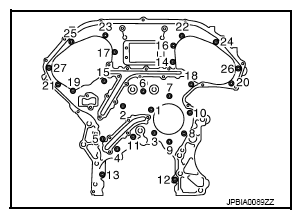

    Fig 3: Identifying Timing Chain Case Mounting Bolts With Tightening Sequence
    Courtesy of NISSAN NORTH AMERICA, INC.
5. After all bolts are tightened, retighten them to the specified torque in numerical order shown in the figure.
  - If liquid gasket protrudes, wipe it off immediately.
6. After installing rear timing chain case, check the surface height difference between the following parts on the oil pan (upper) mounting surface.

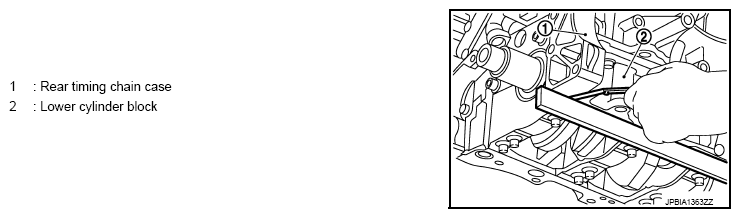

  Fig 4: Checking Surface Height Difference Between Rear Timing Chain Case And Lower Cylinder Block
  Courtesy of NISSAN NORTH AMERICA, INC.

  Standard

  Rear timing chain case to lower cylinder block: -0.24 to 0.14 mm (-0.0094 to 0.0055 in)
  - If not within the standard, repeat the installation procedure.
Install water pump with new O-rings. Refer to "EXPLODED VIEW ".
Install timing chains, camshaft sprockets and front timing chain case. Refer to "REMOVAL AND INSTALLATION ".
- After installing front timing chain case, check the surface height difference between the following parts on the oil pan (upper) mounting surface.

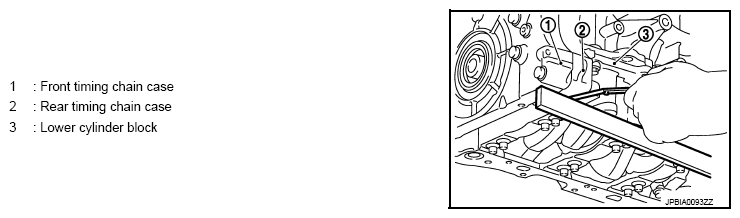

  Fig 5: Checking Surface Height Difference Between (Rear And Front) Timing Chain Case And Lower Cylinder Block
  Courtesy of NISSAN NORTH AMERICA, INC.

  Standard

  Front timing chain case to rear timing chain case: -0.14 to 0.14 mm (-0.0055 to 0.0055 in)
- If not within the standard, repeat the installation procedure.
Install oil pan (upper). Refer to "2WD: EXPLODED VIEW " (2WD models) or "AWD: EXPLODED VIEW " (AWD models).
Install in the reverse order of removal after this step.
