Brake Control System - VDC/TCS/Abs (Coupe)
>>
System Description
>>
Abs
>>
Component Parts Location
Component Parts Location

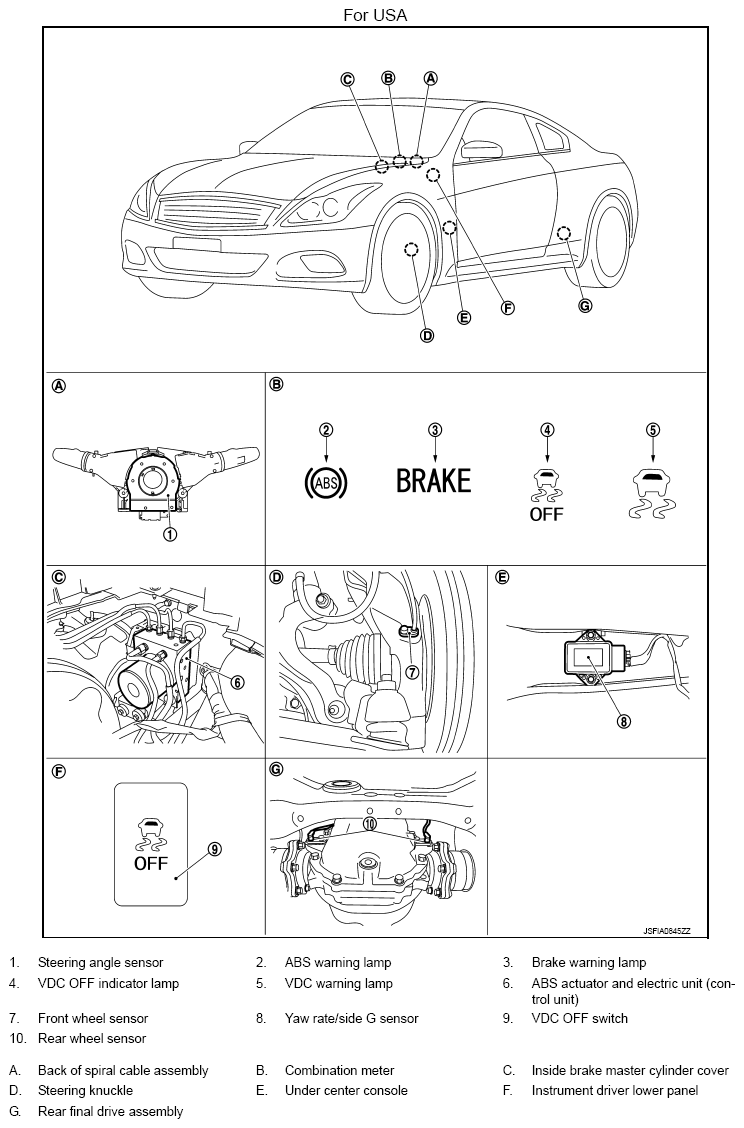

Fig 1: ABS Components Location (For USA)
Courtesy of NISSAN NORTH AMERICA, INC.

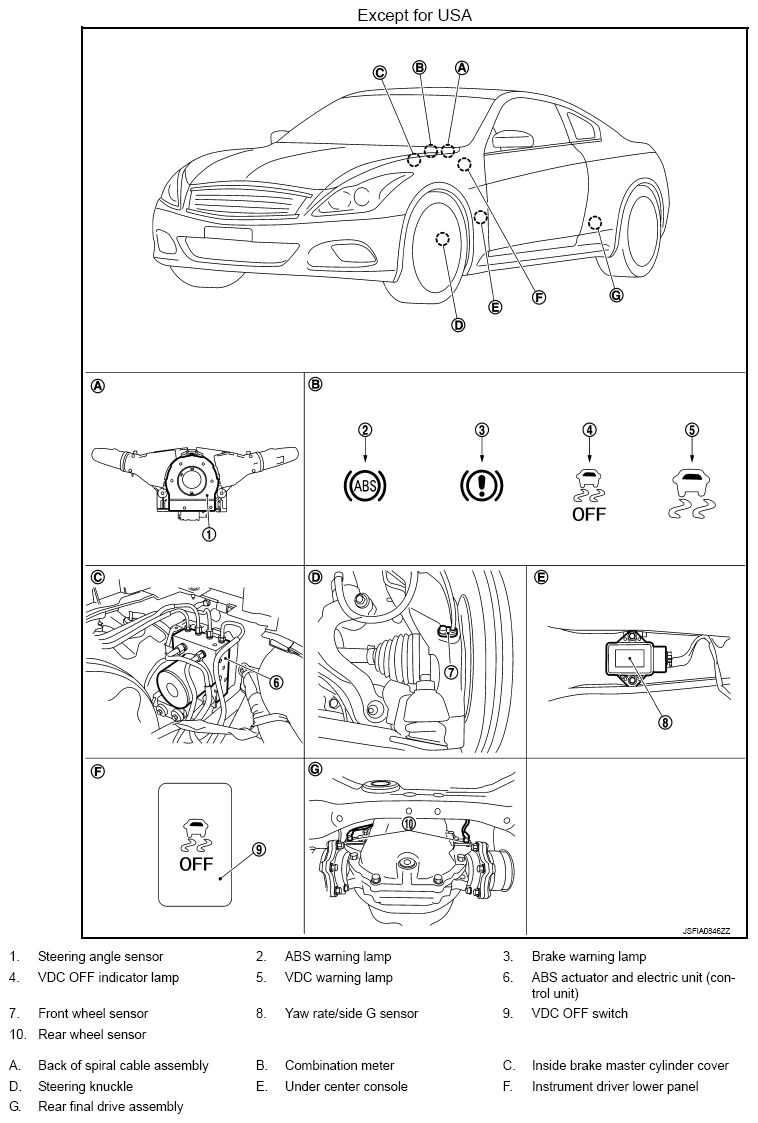

Fig 2: ABS Components Location (Except For USA)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
