Infiniti
>>
2012
>>
G37 IPL, Automatic Trans
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission (Coupe)
>>
Unit Disassembly And Assembly
>>
Direct Clutch
>>
Exploded View
Exploded View

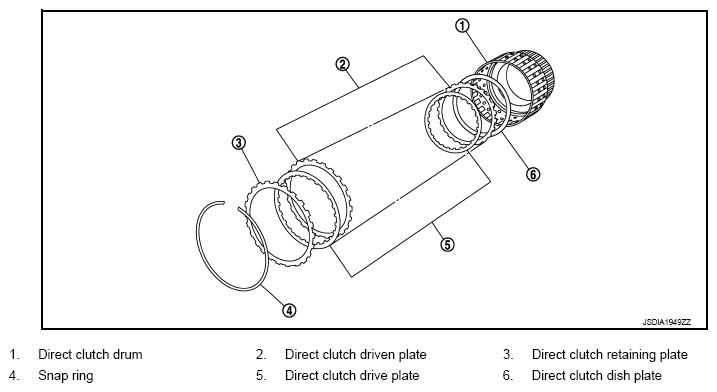

Fig 1: Exploded View Of Direct Clutch
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
