Component Parts Location

WARNING: This page is about a different variant/trim than selected.

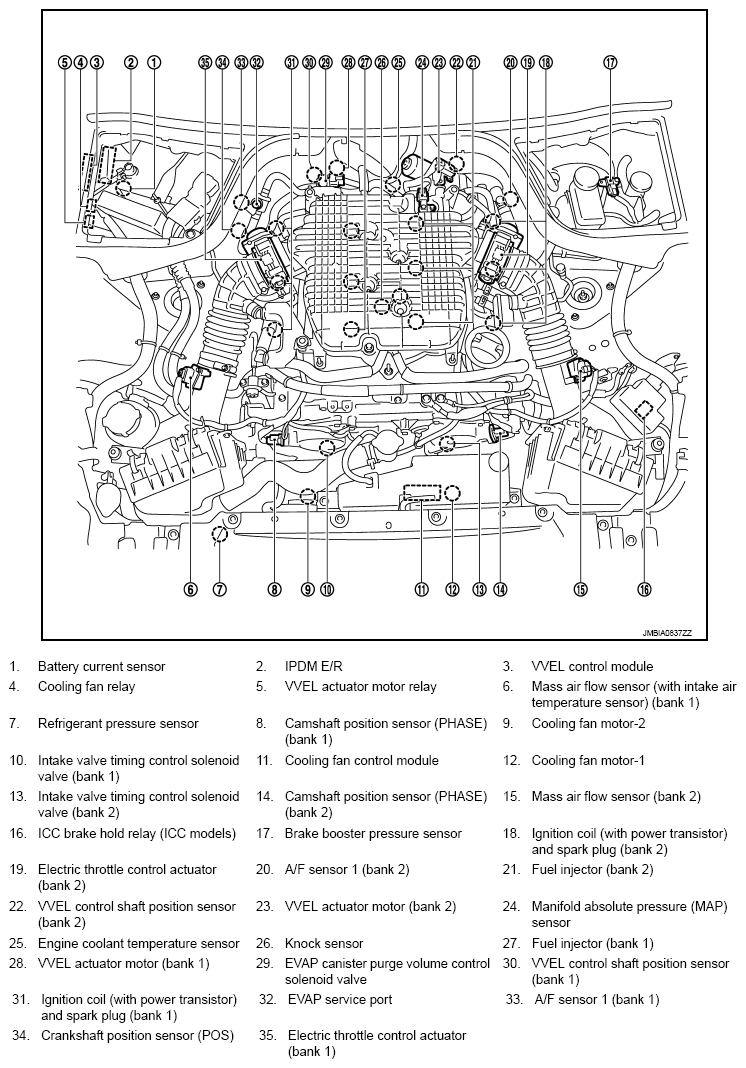

Fig 1: Electric Ignition System Component Parts Location (1 Of 22)

G08452008

Courtesy of NISSAN NORTH AMERICA, INC.

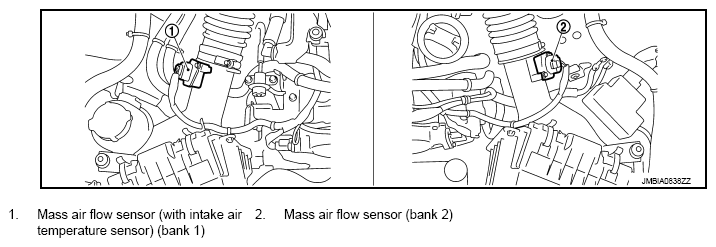

Fig 2: Electric Ignition System Component Parts Location (2 Of 22)

G08452009

Courtesy of NISSAN NORTH AMERICA, INC.

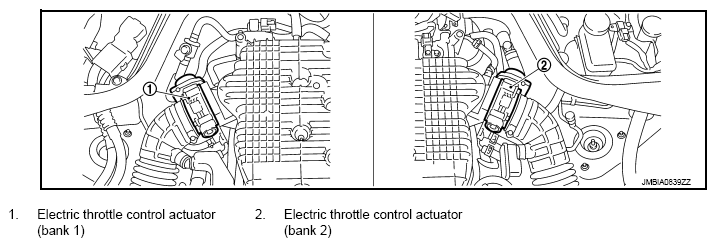

Fig 3: Electric Ignition System Component Parts Location (3 Of 22)

G08452010

Courtesy of NISSAN NORTH AMERICA, INC.

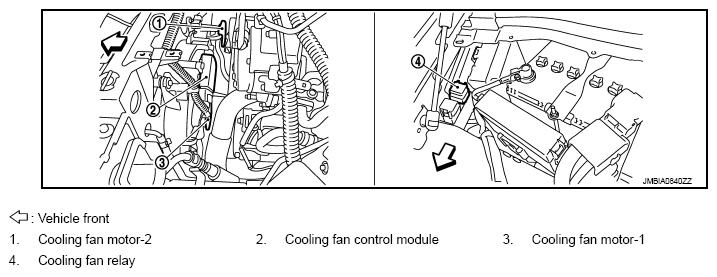

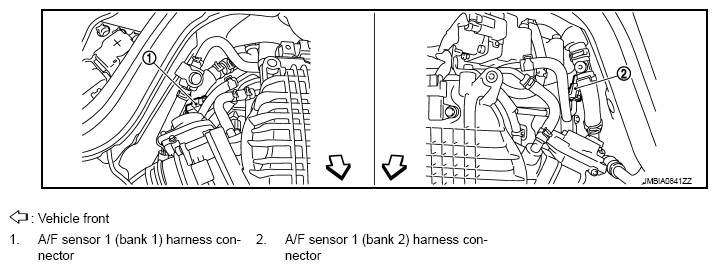

Fig 4: Electric Ignition System Component Parts Location (4 Of 22)

G08452011

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Electric Ignition System Component Parts Location (5 Of 22)

G08452012

Courtesy of NISSAN NORTH AMERICA, INC.

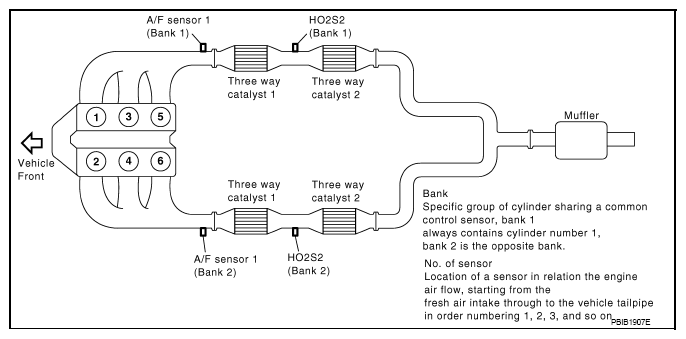

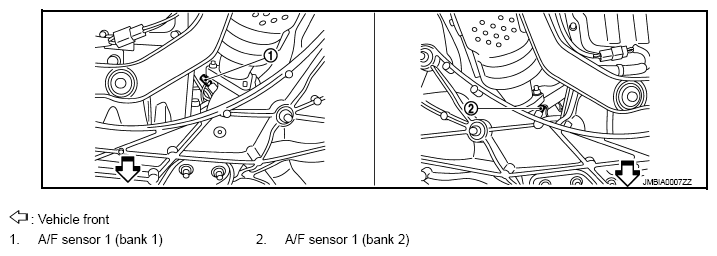

Fig 6: Electric Ignition System Component Parts Location (6 Of 22)

G08452013

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Electric Ignition System Component Parts Location (7 Of 22)

G08452014

Courtesy of NISSAN NORTH AMERICA, INC.

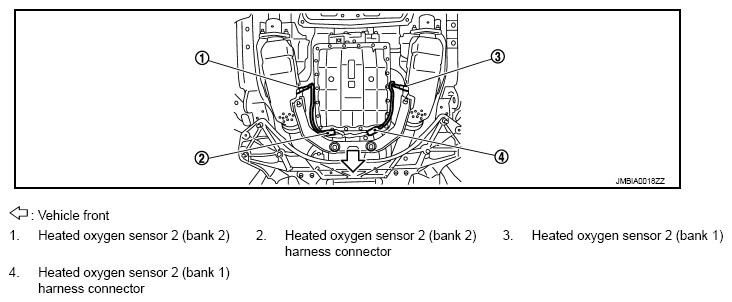

Fig 8: Electric Ignition System Component Parts Location (8 Of 22)

G08452015

Courtesy of NISSAN NORTH AMERICA, INC.

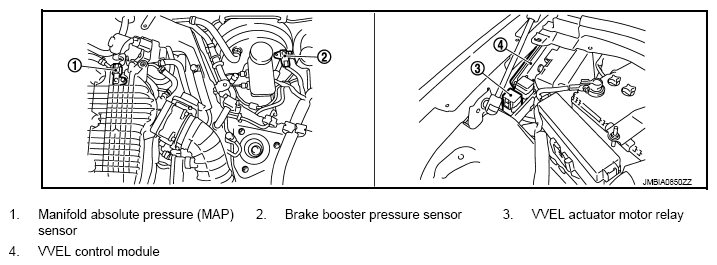

Fig 9: Electric Ignition System Component Parts Location (9 Of 22)

G08452016

Courtesy of NISSAN NORTH AMERICA, INC.

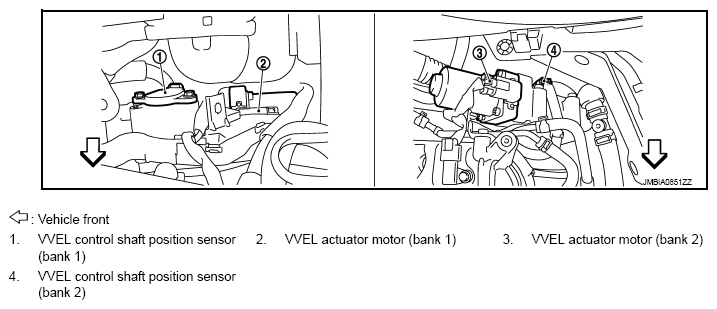

Fig 10: Electric Ignition System Component Parts Location (10 Of 22)

G08452017

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Electric Ignition System Component Parts Location (11 Of 22)

G08452018

Courtesy of NISSAN NORTH AMERICA, INC.

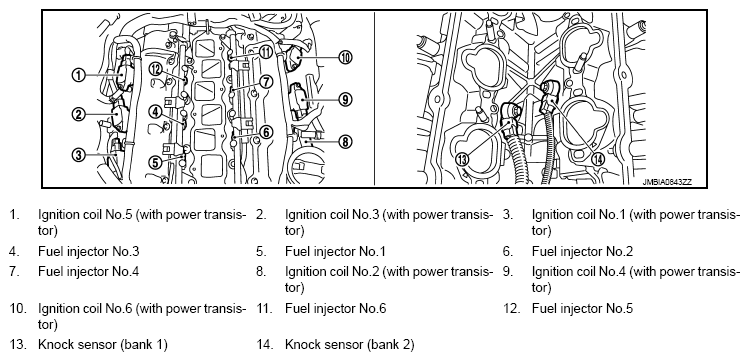

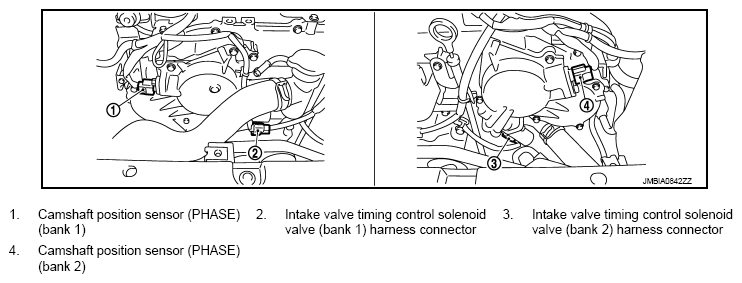

Fig 12: Electric Ignition System Component Parts Location (12 Of 22)

G08452019

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Electric Ignition System Component Parts Location (13 Of 22)

G08452020

Courtesy of NISSAN NORTH AMERICA, INC.

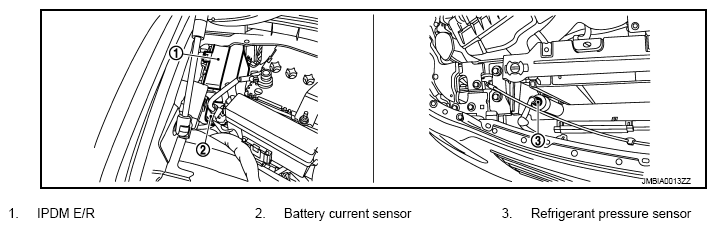

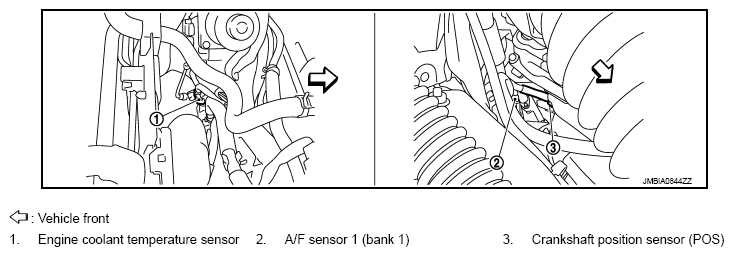

Fig 14: Electric Ignition System Component Parts Location (14 Of 22)

G08452021

Courtesy of NISSAN NORTH AMERICA, INC.

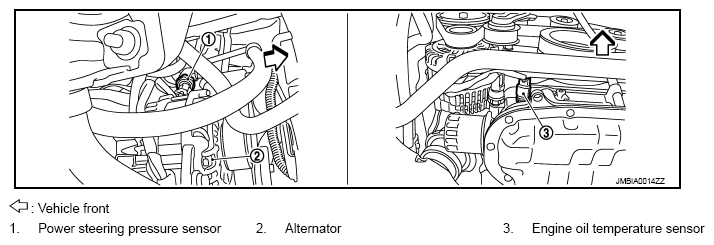

Fig 15: Electric Ignition System Component Parts Location (15 Of 22)

G08452022

Courtesy of NISSAN NORTH AMERICA, INC.

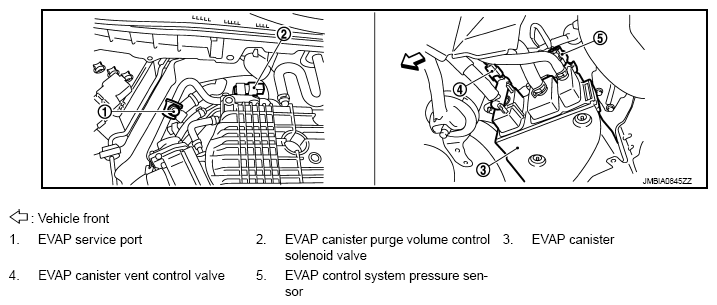

Fig 16: Electric Ignition System Component Parts Location (16 Of 22)

G08452023

Courtesy of NISSAN NORTH AMERICA, INC.

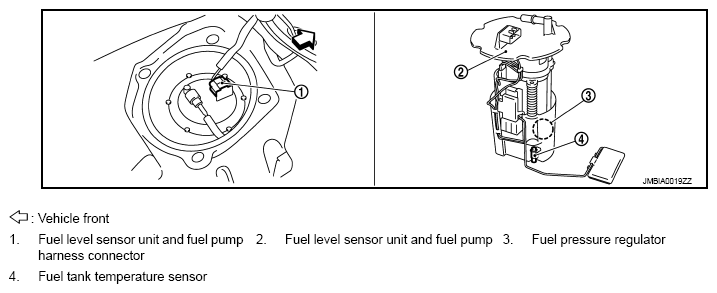

Fig 17: Electric Ignition System Component Parts Location (17 Of 22)

G08452024

Courtesy of NISSAN NORTH AMERICA, INC.

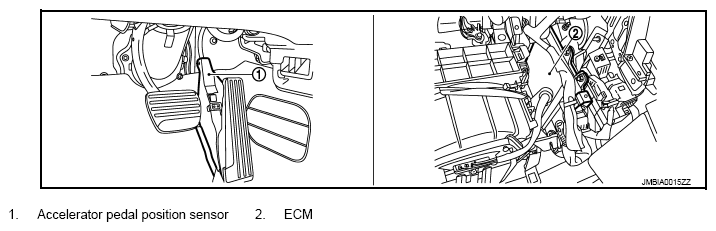

Fig 18: Electric Ignition System Component Parts Location (18 Of 22)

G08452025

Courtesy of NISSAN NORTH AMERICA, INC.

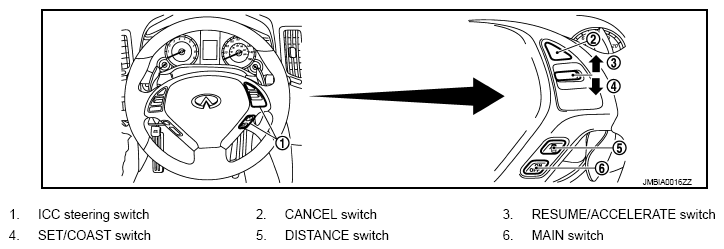

Fig 19: Electric Ignition System Component Parts Location (19 Of 22)

G08452026

Courtesy of NISSAN NORTH AMERICA, INC.

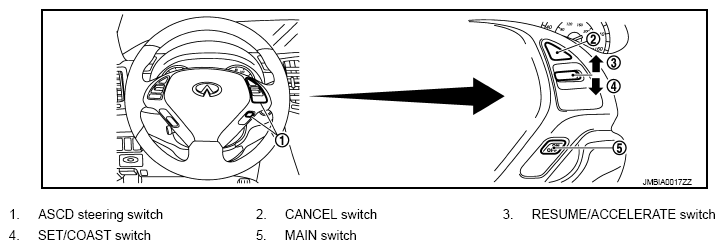

Fig 20: Electric Ignition System Component Parts Location (20 Of 22)

G08452027

Courtesy of NISSAN NORTH AMERICA, INC.

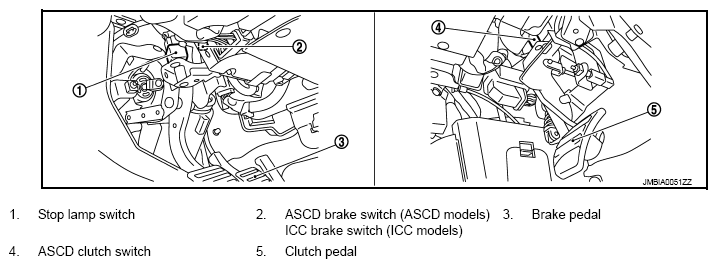

Fig 21: Electric Ignition System Component Parts Location (21 Of 22)

G08452028

Courtesy of NISSAN NORTH AMERICA, INC.

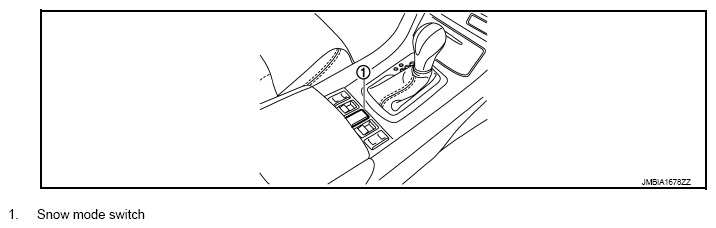

Fig 22: Electric Ignition System Component Parts Location (22 Of 22)

G08452029

Courtesy of NISSAN NORTH AMERICA, INC.
