Component Parts Location

WARNING: This page is about a different variant/trim than selected.

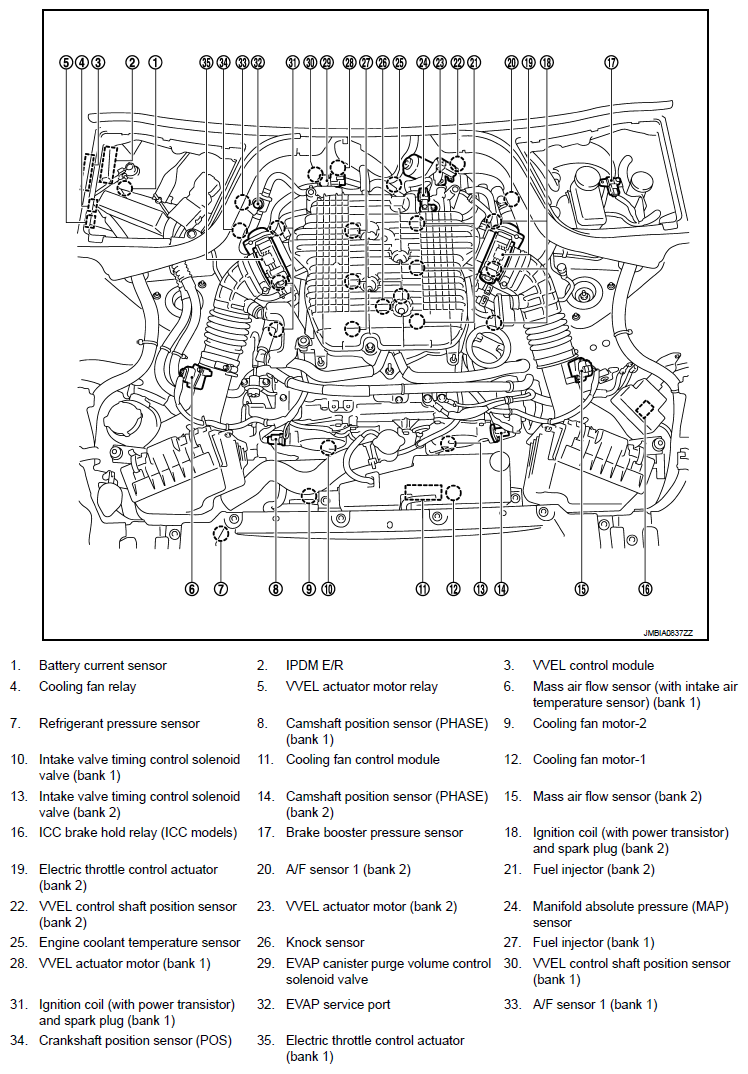

Fig 1: Cooling Fan Control System Component Parts Location (1 Of 22)

G08452077

Courtesy of NISSAN NORTH AMERICA, INC.

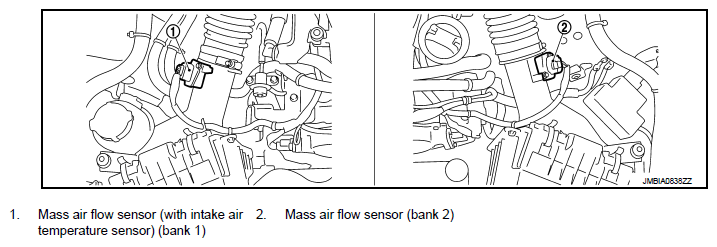

Fig 2: Cooling Fan Control System Component Parts Location (2 Of 22)

G08452078

Courtesy of NISSAN NORTH AMERICA, INC.

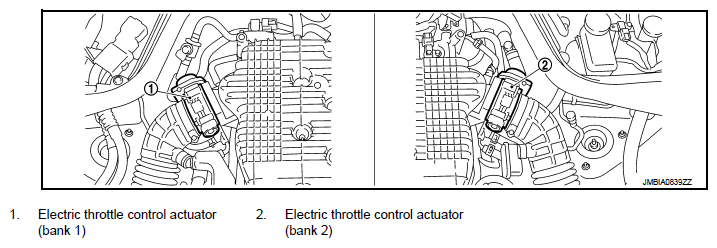

Fig 3: Cooling Fan Control System Component Parts Location (3 Of 22)

G08452079

Courtesy of NISSAN NORTH AMERICA, INC.

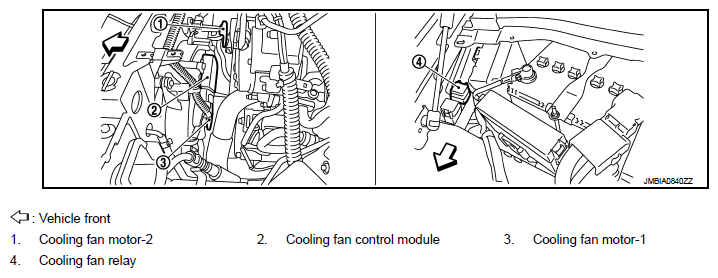

Fig 4: Cooling Fan Control System Component Parts Location (4 Of 22)

G08452080

Courtesy of NISSAN NORTH AMERICA, INC.

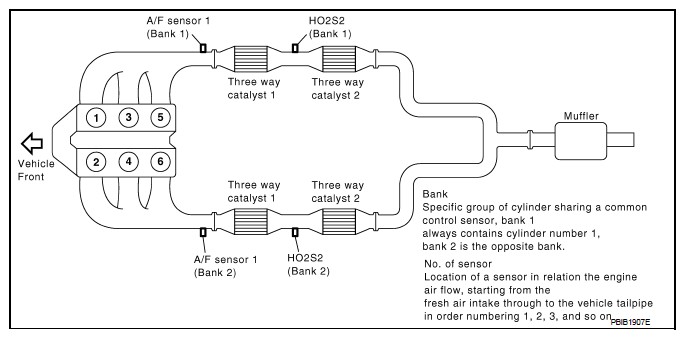

Fig 5: Cooling Fan Control System Component Parts Location (5 Of 22)

G08452081

Courtesy of NISSAN NORTH AMERICA, INC.

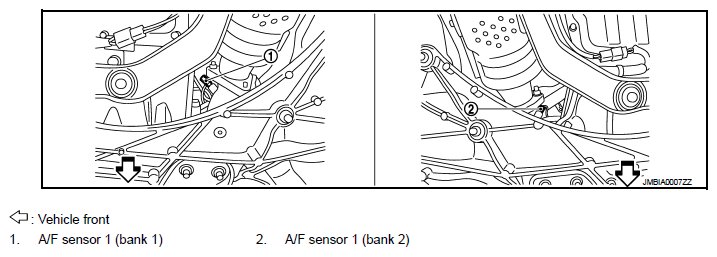

Fig 6: Cooling Fan Control System Component Parts Location (6 Of 22)

G08452082

Courtesy of NISSAN NORTH AMERICA, INC.

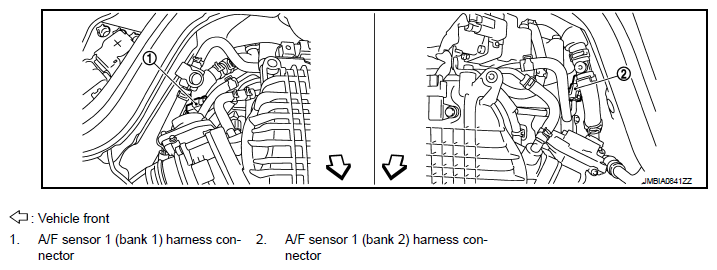

Fig 7: Cooling Fan Control System Component Parts Location (7 Of 22)

G08452083

Courtesy of NISSAN NORTH AMERICA, INC.

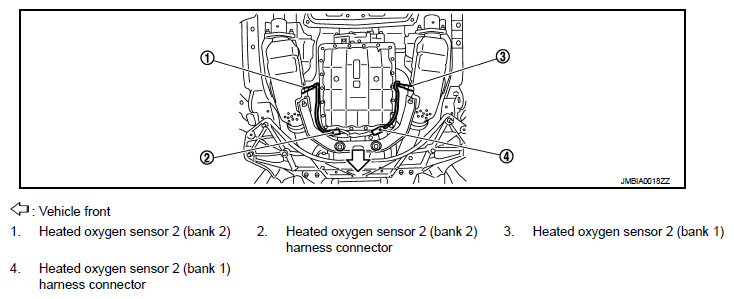

Fig 8: Cooling Fan Control System Component Parts Location (8 Of 22)

G08452084

Courtesy of NISSAN NORTH AMERICA, INC.

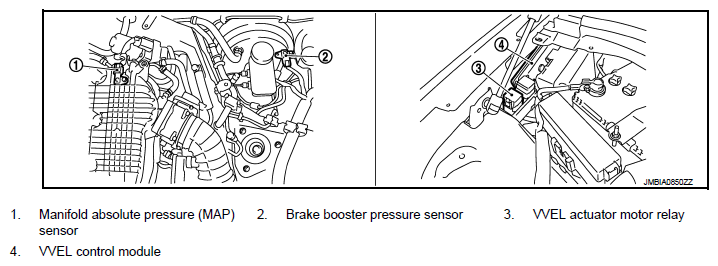

Fig 9: Cooling Fan Control System Component Parts Location (9 Of 22)

G08452085

Courtesy of NISSAN NORTH AMERICA, INC.

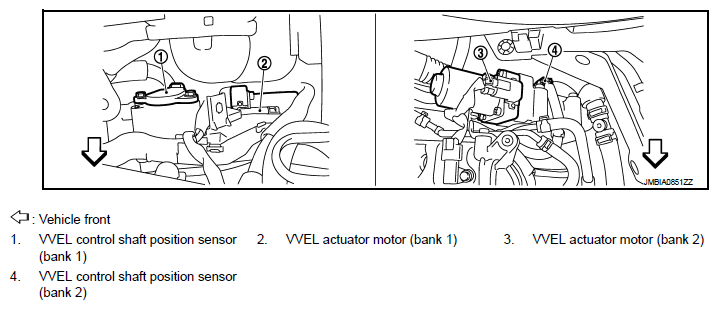

Fig 10: Cooling Fan Control System Component Parts Location (10 Of 22)

G08452086

Courtesy of NISSAN NORTH AMERICA, INC.

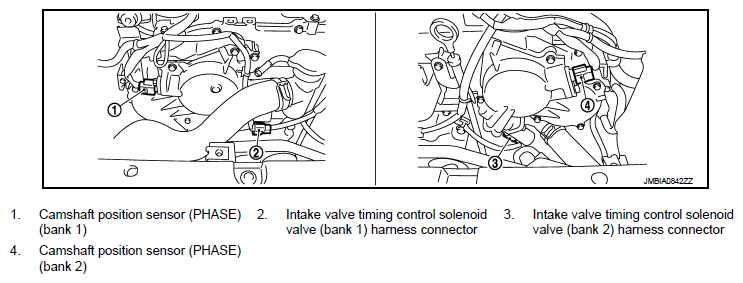

Fig 11: Cooling Fan Control System Component Parts Location (11 Of 22)

G08452087

Courtesy of NISSAN NORTH AMERICA, INC.

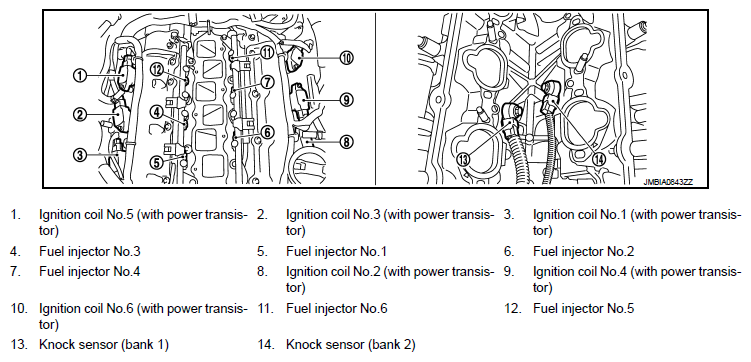

Fig 12: Cooling Fan Control System Component Parts Location (12 Of 22)

G08452088

Courtesy of NISSAN NORTH AMERICA, INC.

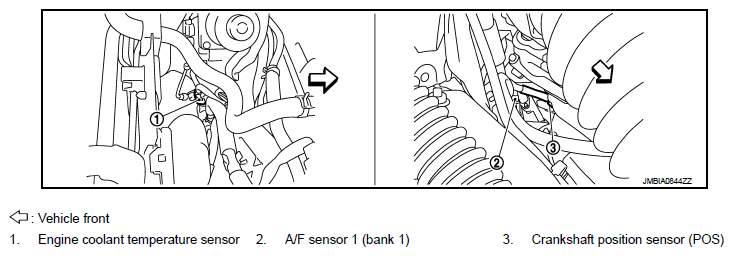

Fig 13: Cooling Fan Control System Component Parts Location (13 Of 22)

G08452089

Courtesy of NISSAN NORTH AMERICA, INC.

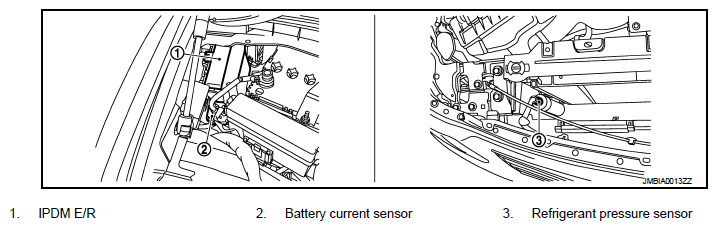

Fig 14: Cooling Fan Control System Component Parts Location (14 Of 22)

G08452090

Courtesy of NISSAN NORTH AMERICA, INC.

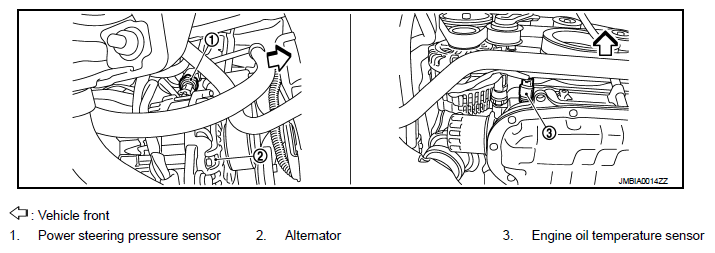

Fig 15: Cooling Fan Control System Component Parts Location (15 Of 22)

G08452091

Courtesy of NISSAN NORTH AMERICA, INC.

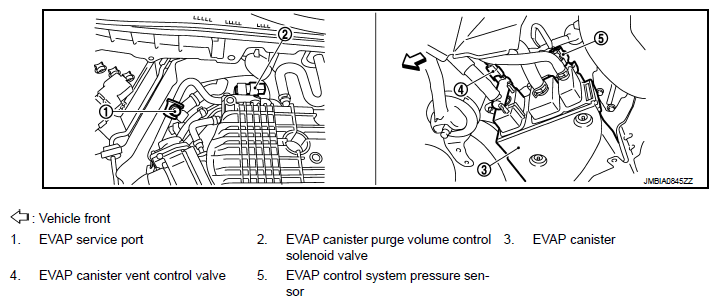

Fig 16: Cooling Fan Control System Component Parts Location (16 Of 22)

G08452092

Courtesy of NISSAN NORTH AMERICA, INC.

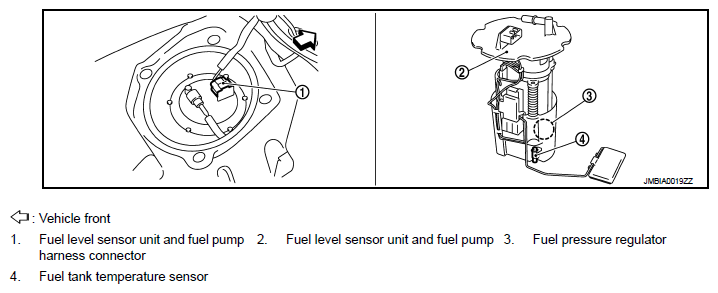

Fig 17: Cooling Fan Control System Component Parts Location (17 Of 22)

G08452093

Courtesy of NISSAN NORTH AMERICA, INC.

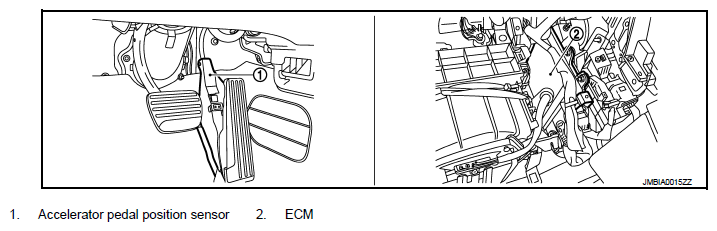

Fig 18: Cooling Fan Control System Component Parts Location (18 Of 22)

G08452094

Courtesy of NISSAN NORTH AMERICA, INC.

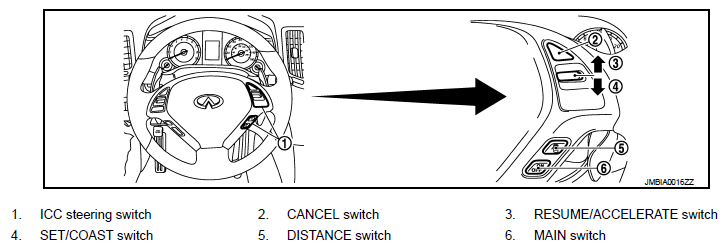

Fig 19: Cooling Fan Control System Component Parts Location (19 Of 22)

G08452095

Courtesy of NISSAN NORTH AMERICA, INC.

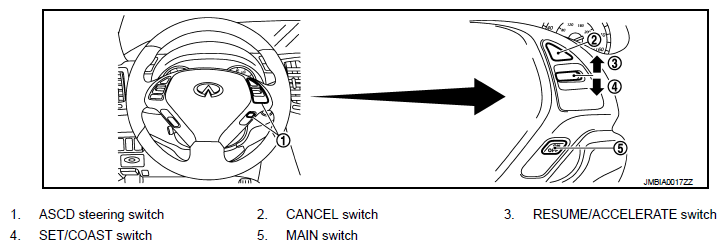

Fig 20: Cooling Fan Control System Component Parts Location (20 Of 22)

G08452096

Courtesy of NISSAN NORTH AMERICA, INC.

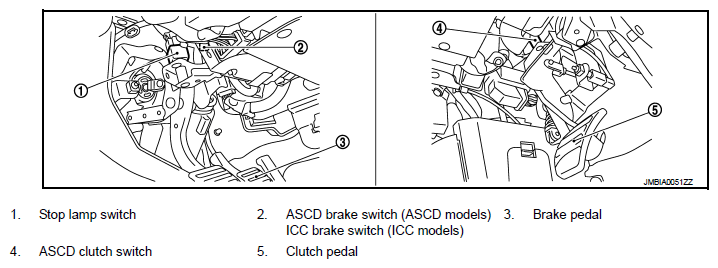

Fig 21: Cooling Fan Control System Component Parts Location (21 Of 22)

G08452097

Courtesy of NISSAN NORTH AMERICA, INC.

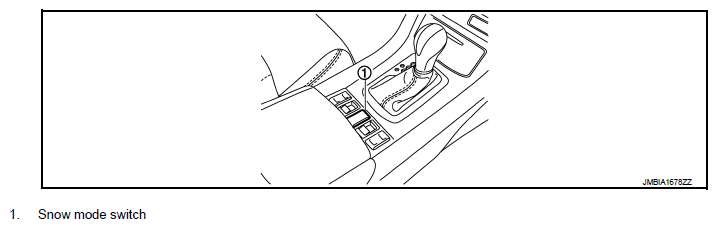

Fig 22: Cooling Fan Control System Component Parts Location (22 Of 22)

G08452098

Courtesy of NISSAN NORTH AMERICA, INC.
