Engine Coolant: Inspection: Level

WARNING: This page is about a different variant/trim than selected.

Check if the reservoir tank engine coolant level is within the "MIN" to "MAX" when the engine is cool.

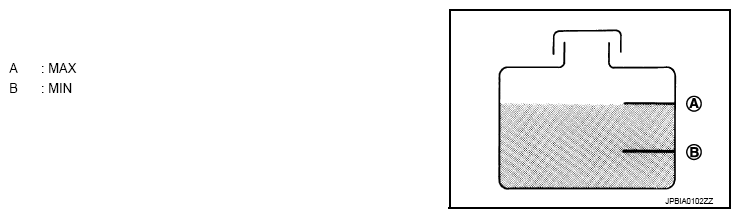

Fig 1: Identifying Reservoir Tank Engine Coolant Level
Courtesy of NISSAN NORTH AMERICA, INC.
Adjust the engine coolant level if necessary.
Check that the reservoir tank cap is tightened.

CAUTION: Refill Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent in its quality mixed with water (distilled or demineralized). Refer to FOR NORTH AMERICA: FLUIDS AND LUBRICANTS or FOR MEXICO: FLUIDS AND LUBRICANTS .
