Removal and Installation: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove instrument panel assembly. Refer to the following.
- Refer to "A/T MODELS: REMOVAL AND INSTALLATION ". (A/T models)
- Refer to "M/T MODELS: REMOVAL AND INSTALLATION ". (M/T models)

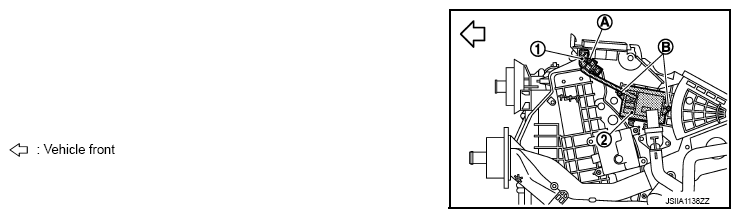

- Remove fixing screw (A), and then remove ionizer harness bracket (1) from heater&cooling unit assembly.
- Remove fixing screws (B), and then remove ionizer (2).
CAUTION:
Never touch the surface (ceramic part) of the ionizer. It is the discharge electrode
