Exploded View: Disassembly

WARNING: This page is about a different variant/trim than selected.

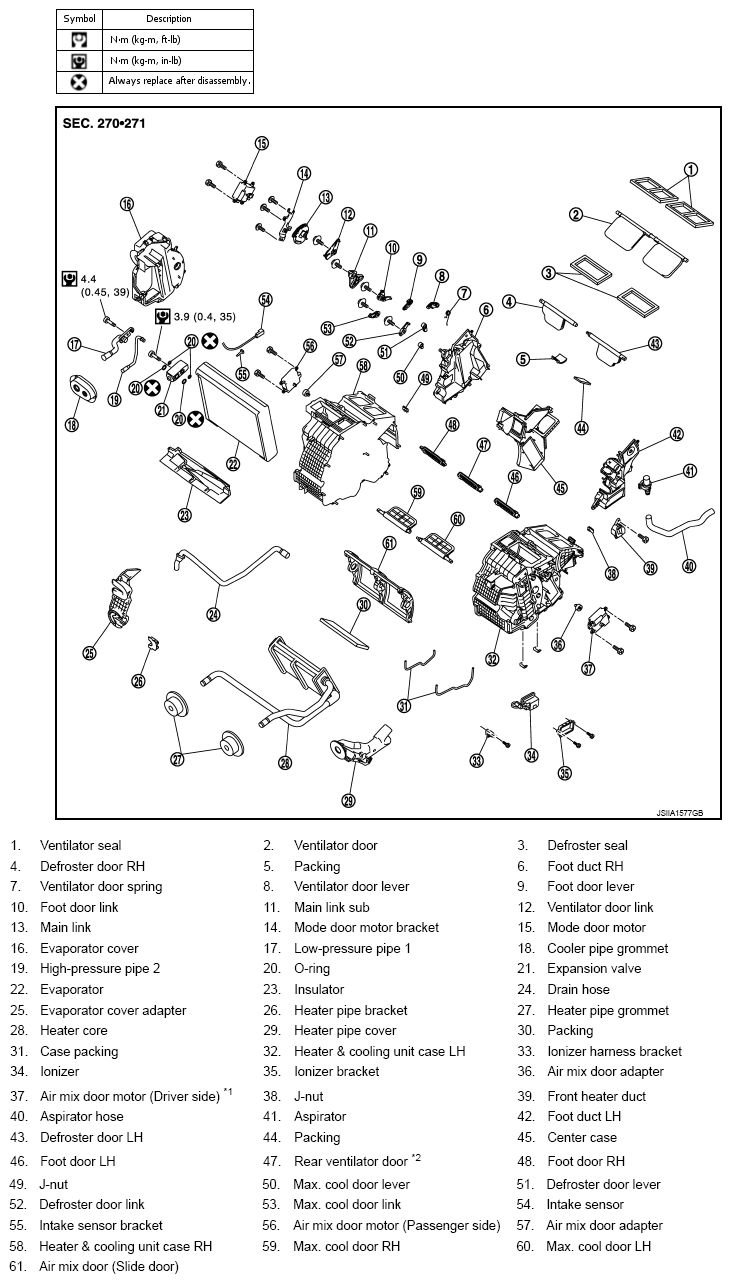

Fig 1: Disassembled View Of Heater & Cooling Unit Assembly With Torque Specifications
G08453099Courtesy of NISSAN NORTH AMERICA, INC.

Refer to COMPONENTS for symbols in the figure.
