Cooler Pipe And Hose
>>
Exploded View
Exploded View
WARNING:
This page is about a different variant/trim than selected.
Refer to
REFRIGERANT CONNECTION
.

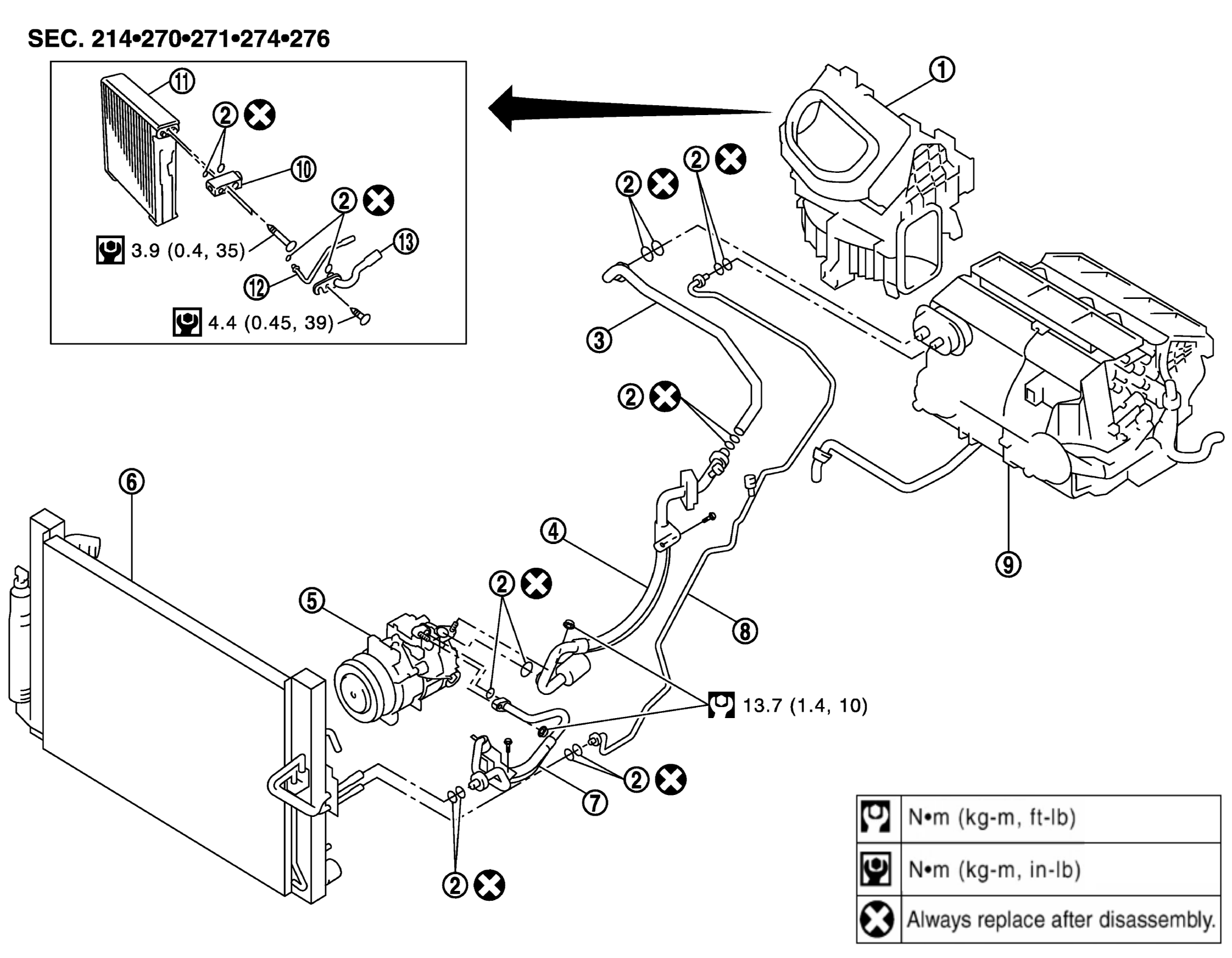

Fig 1: Exploded View Of Cooler Pipe And Hose With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to
COMPONENTS
for symbols in the figure.
